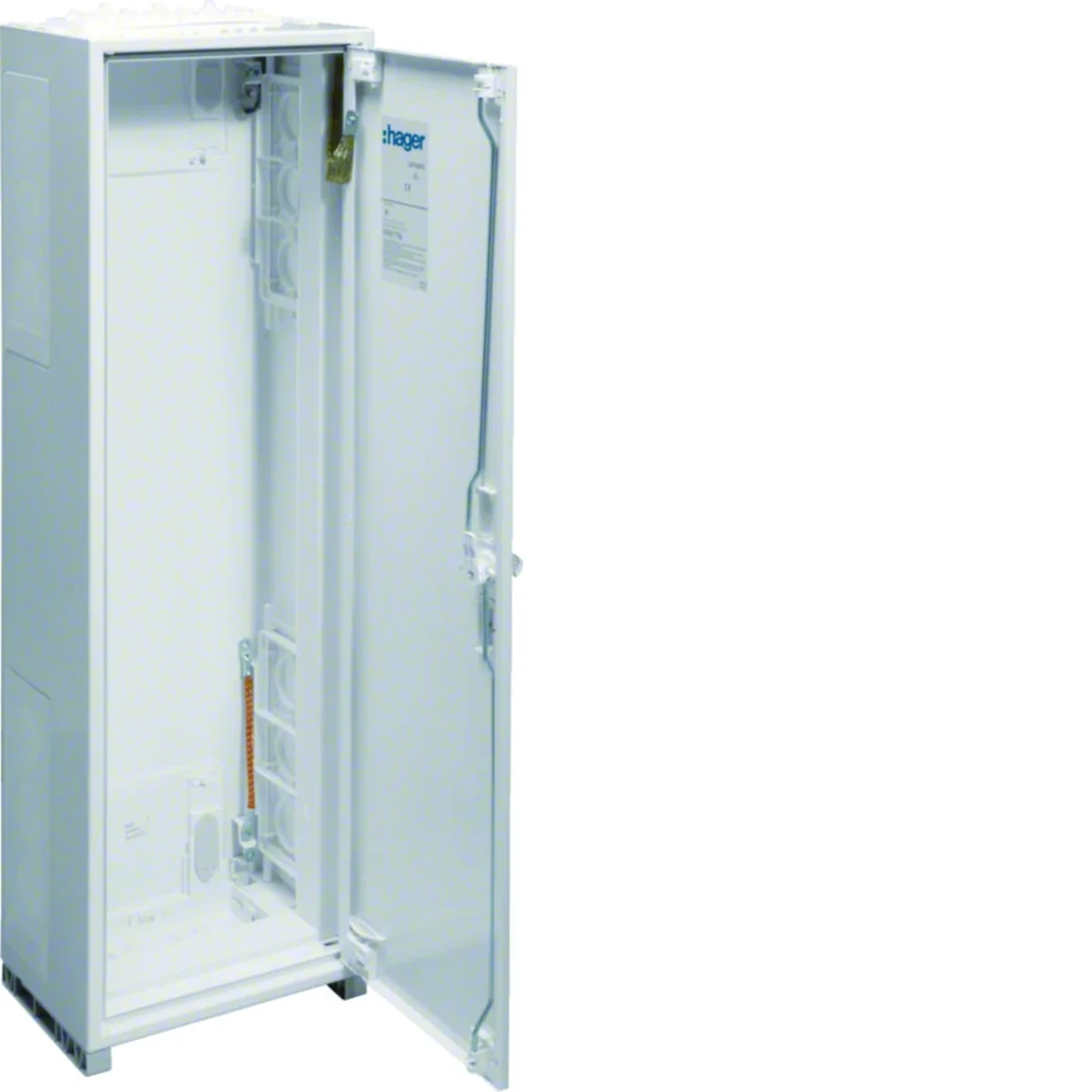

UNIVERS Wall-mounted enclosure IP54/II 1100x300x205 FP71SW2
local index:
RMN053HAGE
Catalog No:
FP71SW2
EAN code:
3250612669363
Price:
551,59 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Wall housing univers series:
- QuickSet mounting.
Characteristics of the series:
Cabinet systems are functional, not only as distribution switchgears (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.
Technical data
-
Depth [mm]205
-
Number of doors1
-
Protection classII
-
Housing materialSteel plate
-
FamilyUNIVERS
-
Width [mm]250
-
Number of sections1
-
Number of cable entries2
-
PKWIU27.12.40.0
-
Thickness [mm]1
-
Number of locks1
-
ColorWhite
-
FixingQuickSet
-
Level of securityIP54
-
Height [mm]1100
-
Number of rows for cameras7
-
Lock typeT-Handle
Other technical data
-
Mounting methodOther
-
Cover modelClosed
-
Transparent cover/doorNo
-
Nominal current (In)250 A
-
Width300 mm
-
Built-in depth205 mm
-
Material plate thickness cabinet1 mm
-
ColourWhite
-
Number of modules84
-
Width in number of modular spacings12
-
Extension possibleYes
-
Housing materialSteel
-
With mounting plateNo
-
Suitable for lightning protectionNo
-
Protection classII
-
Circuit integrityNone
-
Type of coveringDoor
-
Type of doorSingle
-
With lockNo
-
Height1100 mm
-
Depth205 mm
-
Inner depth130 mm
-
Material plate thickness door/cover1 mm
-
RAL-number9010
-
Number of rows7
-
Number of openings for flange plates2
-
Number of conduit inlets2
-
Surface protectionPowder coating
-
Suitable for outdoor useNo
-
Degree of protection (IP)IP54
-
Impact strengthIK09
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 12 pcs. |
| Weight (kg) | 12,699 | 12,850 | 177,200 |
| Width (m) | 0,300 | 0,215 | 0,800 |
| Length (m) | 1,100 | 0,310 | 0,690 |
| Depth (m) | 0,205 | 0,115 | 1,200 |
