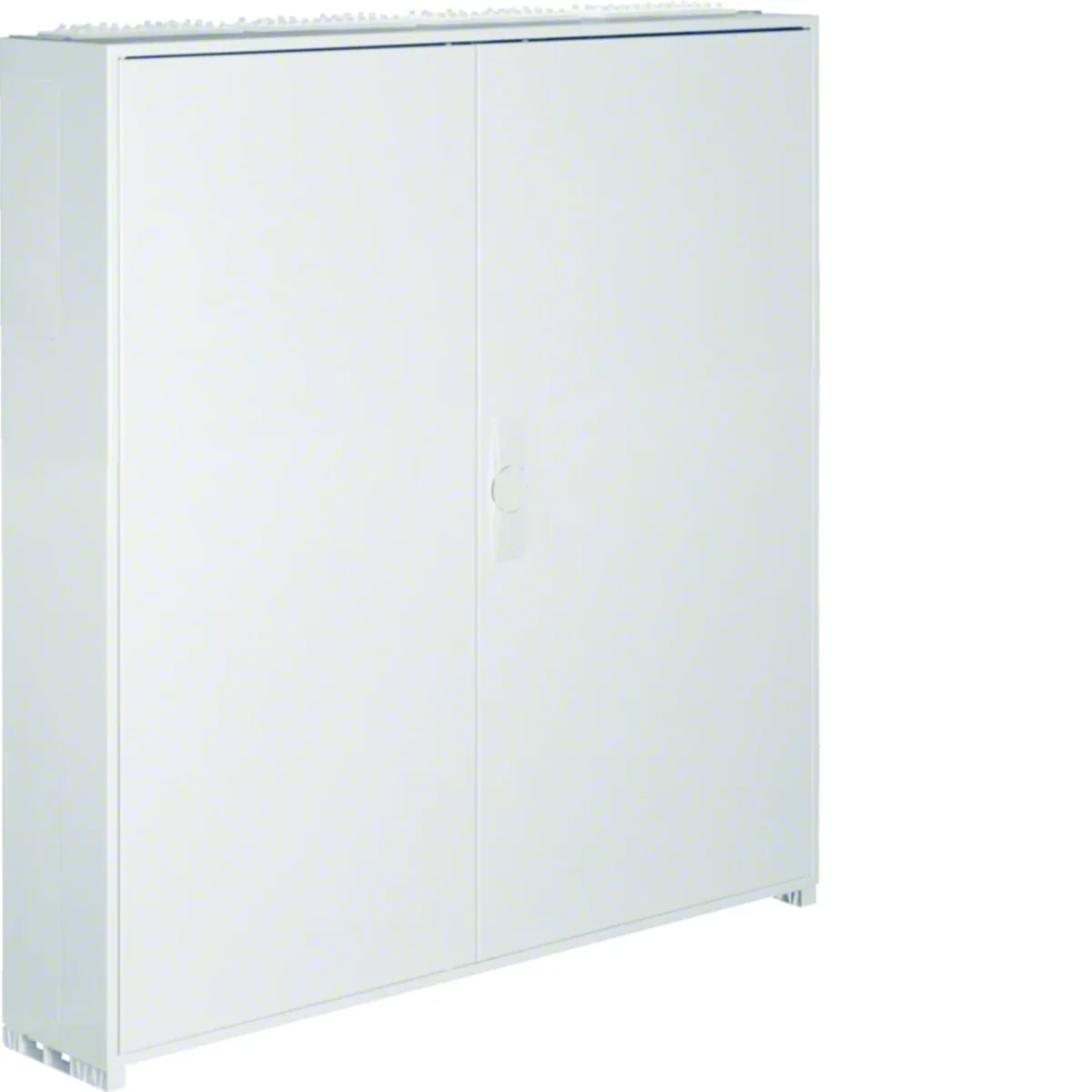

UNIVERS Wall-mounted enclosure IP54/II 1100x1050x205 FP74SW2

local index:
RMN056HAGE
Catalog No:
FP74SW2
EAN code:
3250612669394
Manufacturer: HAGER
Depth [mm]: 205
Thickness [mm]: 1
Number of doors: 1
Price:
988,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Wall housing univers series:

  • QuickSet mounting.

Characteristics of the series:

Cabinet systems are functional, not only as distribution switchgears (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

  • Depth [mm]
    205
  • Number of doors
    1
  • Protection class
    II
  • Housing material
    Steel plate
  • Family
    UNIVERS
  • Width [mm]
    1000
  • Number of sections
    4
  • Number of cable entries
    8
  • PKWIU
    27.12.40.0
  • Thickness [mm]
    1
  • Number of locks
    1
  • Color
    White
  • Fixing
    QuickSet
  • Level of security
    IP54
  • Height [mm]
    1100
  • Number of rows for cameras
    7
  • Lock type
    T-Handle

Other technical data

  • Mounting method
    Other
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    250 A
  • Width
    1050 mm
  • Built-in depth
    205 mm
  • Material plate thickness cabinet
    1 mm
  • Colour
    White
  • Number of modules
    336
  • Width in number of modular spacings
    48
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    II
  • Circuit integrity
    None
  • Type of covering
    Door
  • Type of door
    Double
  • With lock
    No
  • Height
    1100 mm
  • Depth
    205 mm
  • Inner depth
    130 mm
  • Material plate thickness door/cover
    1 mm
  • RAL-number
    9010
  • Number of rows
    7
  • Number of openings for flange plates
    8
  • Number of conduit inlets
    8
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP54
  • Impact strength
    IK09

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 4 pcs.
Weight (kg) 30,100 30,660 142,000
Width (m) 1,050 0,215 0,800
Length (m) 1,100 1,150 1,300
Depth (m) 0,205 1,070 1,200
