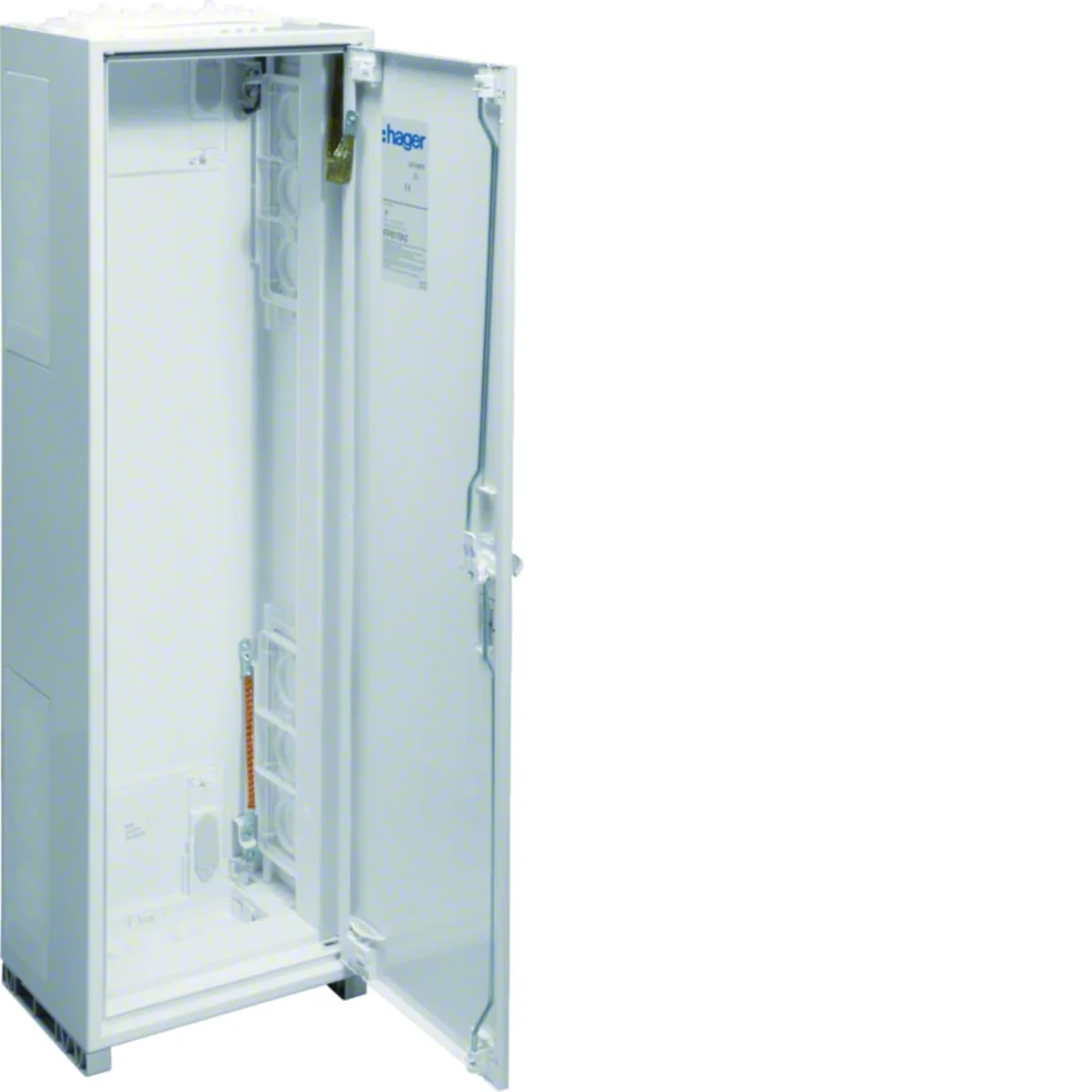

UNIVERS Wall-mounted enclosure IP44/II 950x300x205 FP61SN2

Místní index:
RMN046HAGE
Katalogové číslo.:
FP61SN2
EAN kód:
3250612669127
Výrobce: HAGER
Depth [mm]: 205
Thickness [mm]: 1
Number of doors: 1
Cena:
1 551,87 zł
gross / kusů.
(včetně DPH 23%)
do 10 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

Wall housing univers series:

  • QuickSet mounting.

Characteristics of the series:

Cabinet systems are functional, not only as distribution switchgears (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technické údaje

  • Depth [mm]
    205
  • Number of doors
    1
  • Protection class
    II
  • Material
    Galvanized steel sheet
  • Fixing
    QuickSet
  • Level of security
    IP44
  • Height [mm]
    950
  • Number of sections
    1
  • Number of cable entries
    2
  • Thickness [mm]
    1
  • Number of locks
    1
  • Color
    White
  • Housing material
    Steel plate
  • Family
    UNIVERS
  • Width [mm]
    300
  • Surface finish
    Powder coated
  • Number of rows for cameras
    6
  • PKWIU
    27.12.40.0

Další technické údaje

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    250 A
  • Width
    300 mm
  • Built-in depth
    205 mm
  • Material plate thickness cabinet
    1 mm
  • Colour
    White
  • Number of modules
    72
  • Width in number of modular spacings
    12
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    II
  • Circuit integrity
    None
  • Type of covering
    Cover
  • Type of door
    Single
  • With lock
    No
  • Height
    950 mm
  • Depth
    205 mm
  • Inner depth
    143 mm
  • Material plate thickness door/cover
    1 mm
  • RAL-number
    9010
  • Number of rows
    6
  • Number of openings for flange plates
    2
  • Number of conduit inlets
    2
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP44
  • Impact strength
    IK09
  • Cover with overpressure release
    No

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Karton Paleta Karton Paleta
Množství 1 kusů. 12 kusů. 1 kusů. 12 kusů.
Hmotnost (kg) 11,280 160,360 11,280 160,360
Šířka (m) 0,210 0,860 0,210 0,860
Délka (m) 1,000 1,140 1,000 1,140
Hloubka (m) 0,320 1,200 0,320 1,200
