UNIVERS Wall-mounted enclosure IP44/II 500x550x205 FP32SN2

Name: UNIVERS Wall-mounted enclosure IP44/II 500x550x205
Brand: HAGER
SKU: RMN027HAGE
Price: 1507.09 PLN
Availability: BackOrder

Indeks lokalny:

RMN027HAGE

Numer katalogowy:

FP32SN2

Kod EAN:

3250612669523

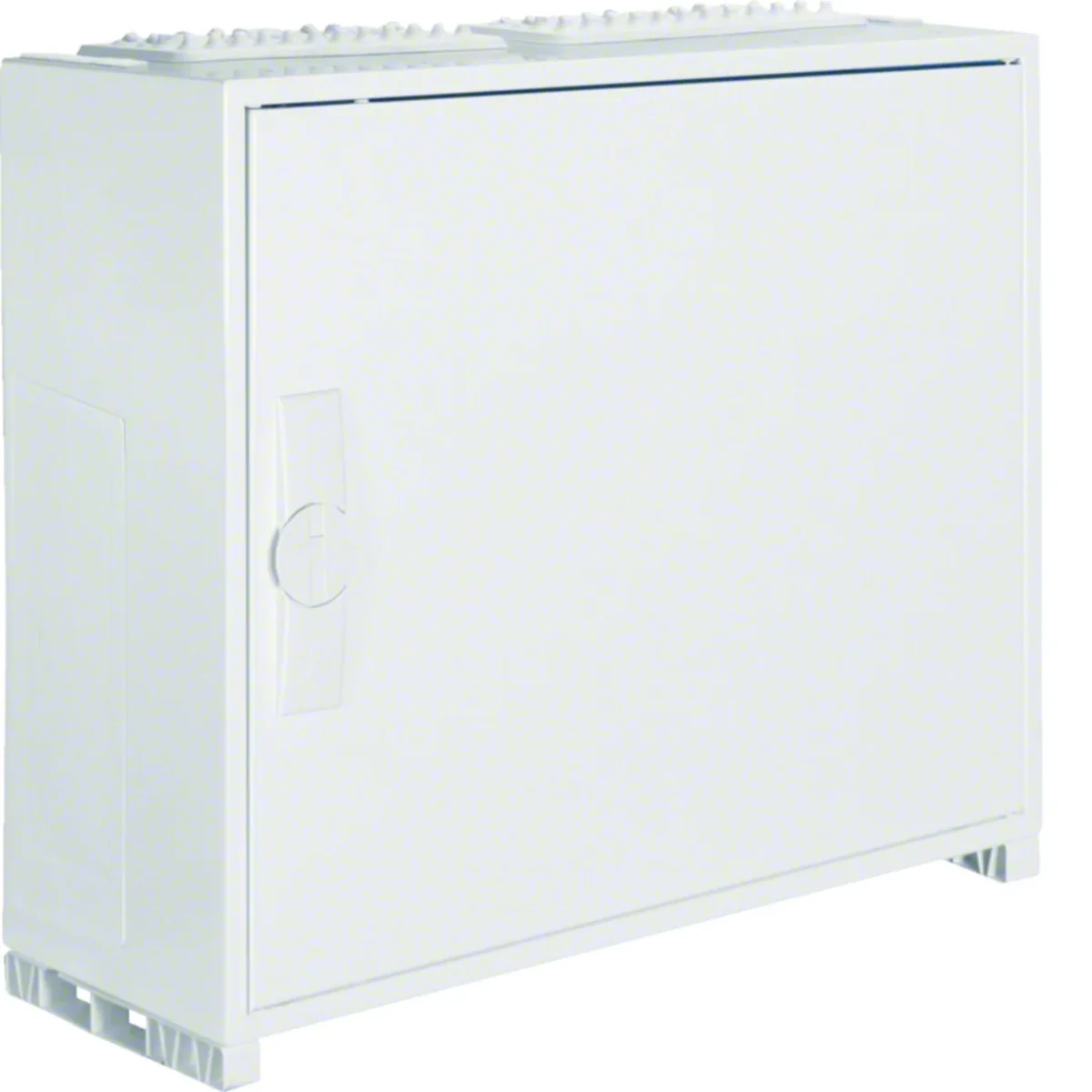

UNIVERS Wall-mounted enclosure IP44/II 500x550x205

Kliknij zdjęcie, aby powiększyć

Producent: HAGER

Depth [mm]: 205

Thickness [mm]: 1

Number of doors: 2

Zobacz cały opis

Cena:

1 507,09 zł

gross / szt.

(w tym VAT 23%)

do 4 tygodni

Na zamówienie

Ilość szt.

(wielokrotność:

)

Dodaj do zapytania ofertowego

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

Wall housing from the univers series.

Characteristics of the series:

The cabinet systems are functional, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum security.

Dane techniczne

Depth [mm]

205
Number of doors

2
Protection class

II
Material

Galvanized steel sheet
Installation

Surface-mounted
Level of security

IP44
Height [mm]

500
Number of sections

2
Number of cable entries

4

Thickness [mm]

1
Number of locks

1
Color

White
Housing material

Steel plate
Family

UNIVERS
Width [mm]

500
Surface finish

Powder coated
Number of rows for cameras

3
PKWIU

27.12.40.0

Pozostałe dane techniczne

Mounting method

Surface mounted
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

250 A
Width

550 mm
Built-in depth

205 mm
Material plate thickness cabinet

1 mm
Colour

White
Number of modules

72
Width in number of modular spacings

24
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

II
Circuit integrity

None

Type of covering

Cover
Type of door

Single
With lock

No
Height

500 mm
Depth

205 mm
Inner depth

143 mm
Material plate thickness door/cover

1 mm
RAL-number

9010
Number of rows

3
Number of openings for flange plates

4
Number of conduit inlets

4
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP44
Impact strength

IK09
Cover with overpressure release

No
