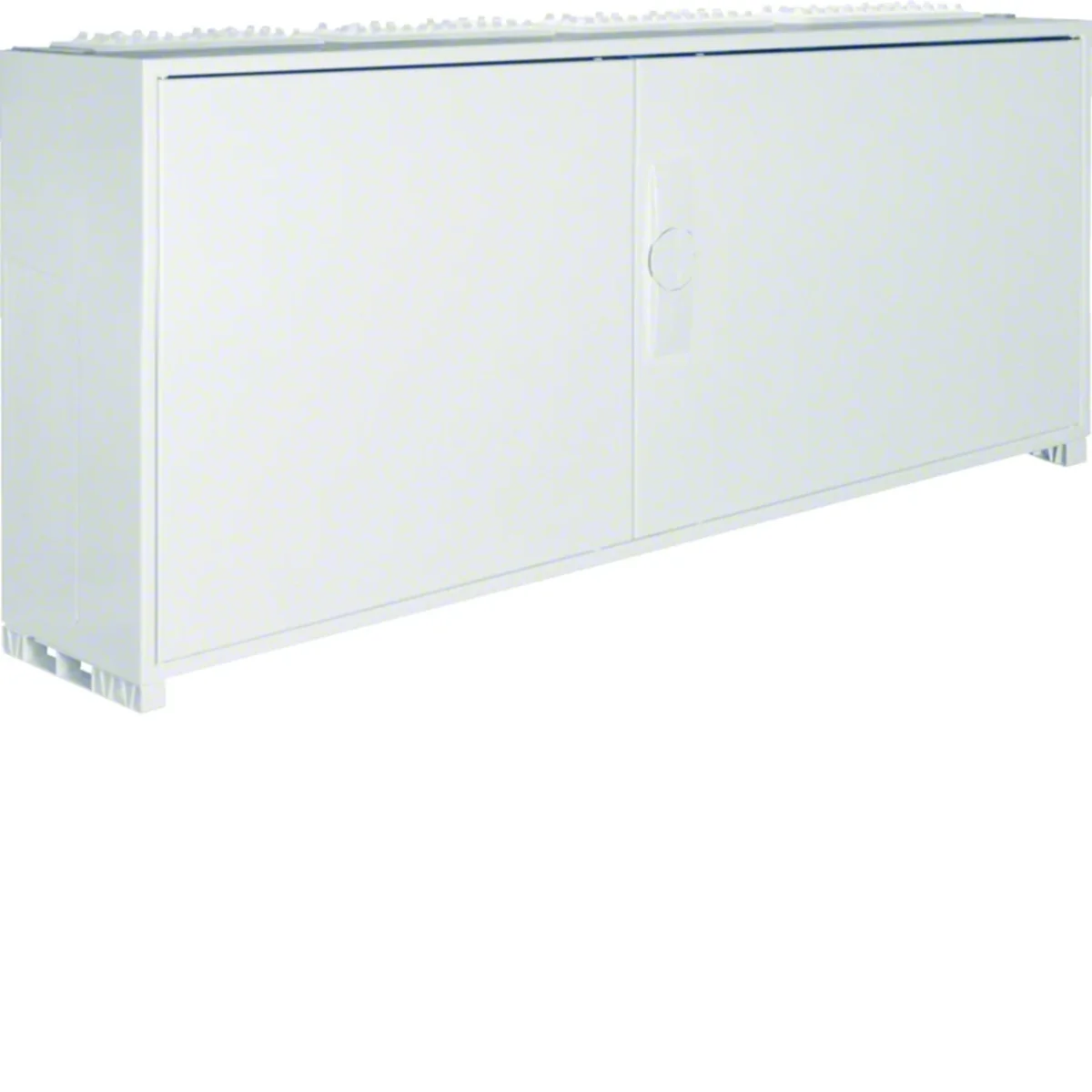

UNIVERS Wall-mounted enclosure IP44/II 500x1050x205 FP34SN2
local index:
RMN029HAGE
Catalog No:
FP34SN2
EAN code:
3250612669547
Price:
479,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Wall housing univers series:
- surface mounting,
Characteristics of the series:
Cabinet systems are functional, not only as distribution switchgears (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.
Technical data
-
Depth [mm]205
-
Number of doors2
-
Protection classII
-
MaterialGalvanized steel sheet
-
InstallationSurface-mounted
-
Level of securityIP44
-
Height [mm]500
-
Number of sections4
-
Number of cable entries8
-
Thickness [mm]1
-
Number of locks1
-
ColorWhite
-
Housing materialSteel plate
-
FamilyUNIVERS
-
Width [mm]1000
-
Surface finishPowder coated
-
Number of rows for cameras3
-
PKWIU27.12.40.0
Other technical data
-
Mounting methodOther
-
Cover modelClosed
-
Transparent cover/doorNo
-
Nominal current (In)250 A
-
Width1050 mm
-
Built-in depth205 mm
-
Material plate thickness cabinet1 mm
-
ColourWhite
-
Number of modules144
-
Width in number of modular spacings48
-
Extension possibleYes
-
Housing materialSteel
-
With mounting plateNo
-
Suitable for lightning protectionNo
-
Protection classII
-
Circuit integrityNone
-
Type of coveringCover
-
Type of doorDouble
-
With lockNo
-
Height500 mm
-
Depth205 mm
-
Inner depth143 mm
-
Material plate thickness door/cover1 mm
-
RAL-number9010
-
Number of rows3
-
Number of openings for flange plates8
-
Number of conduit inlets8
-
Surface protectionPowder coating
-
Suitable for outdoor useNo
-
Degree of protection (IP)IP44
-
Impact strengthIK09
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 8 pcs. |
| Weight (kg) | 16,400 | 16,450 | 156,600 |
| Width (m) | 1,050 | 0,215 | 0,860 |
| Length (m) | 0,500 | 0,550 | 1,220 |
| Depth (m) | 0,205 | 1,070 | 1,200 |
