UNIVERS Wall-mounted enclosure IP44/II 1700x1050x205 FP14SN2

Name: UNIVERS Wall-mounted enclosure IP44/II 1700x1050x205
Brand: HAGER
SKU: RMN026HAGE
Price: 5241.77 PLN
Availability: BackOrder

local index:

RMN026HAGE

Catalog number:

FP14SN2

EAN code:

3250612670031

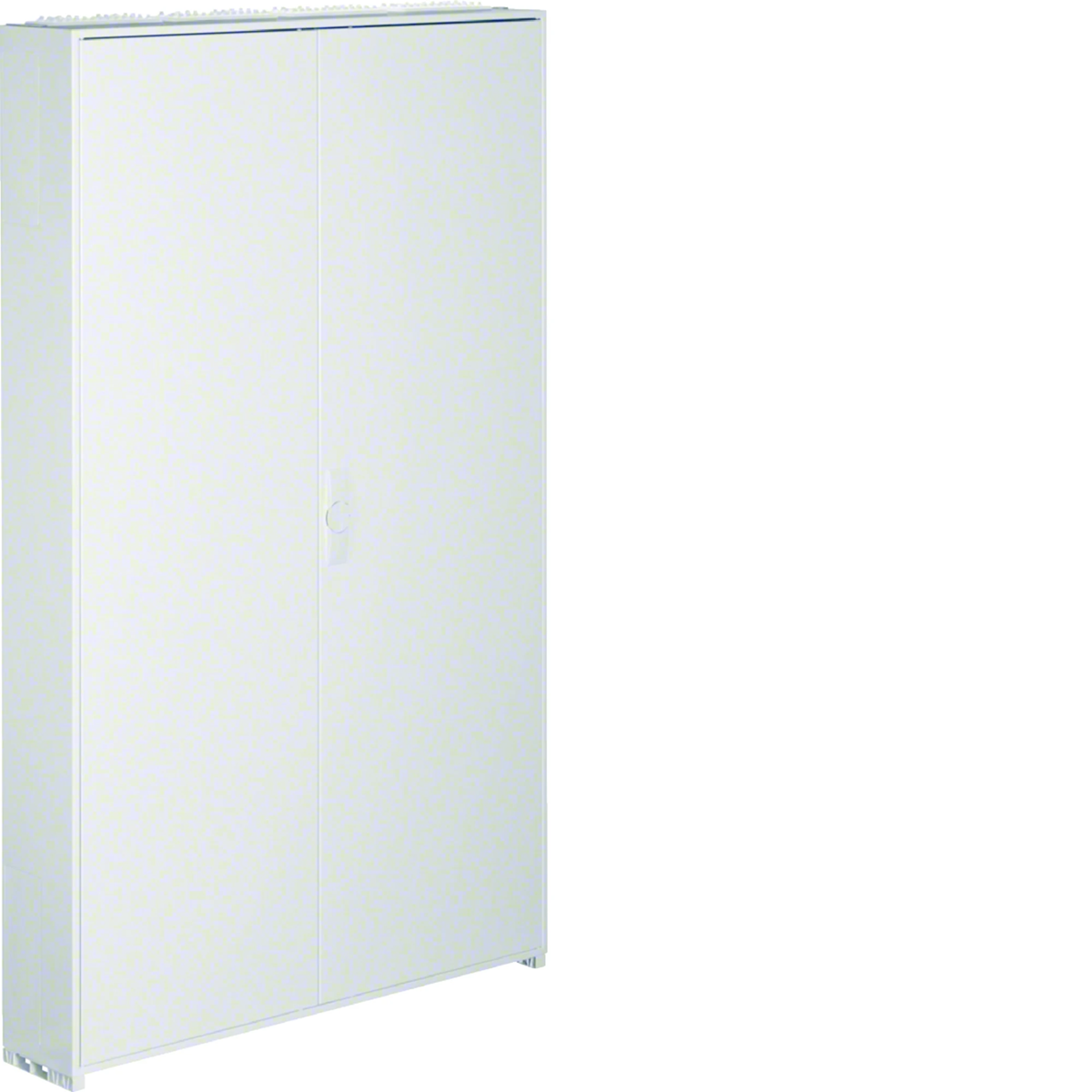

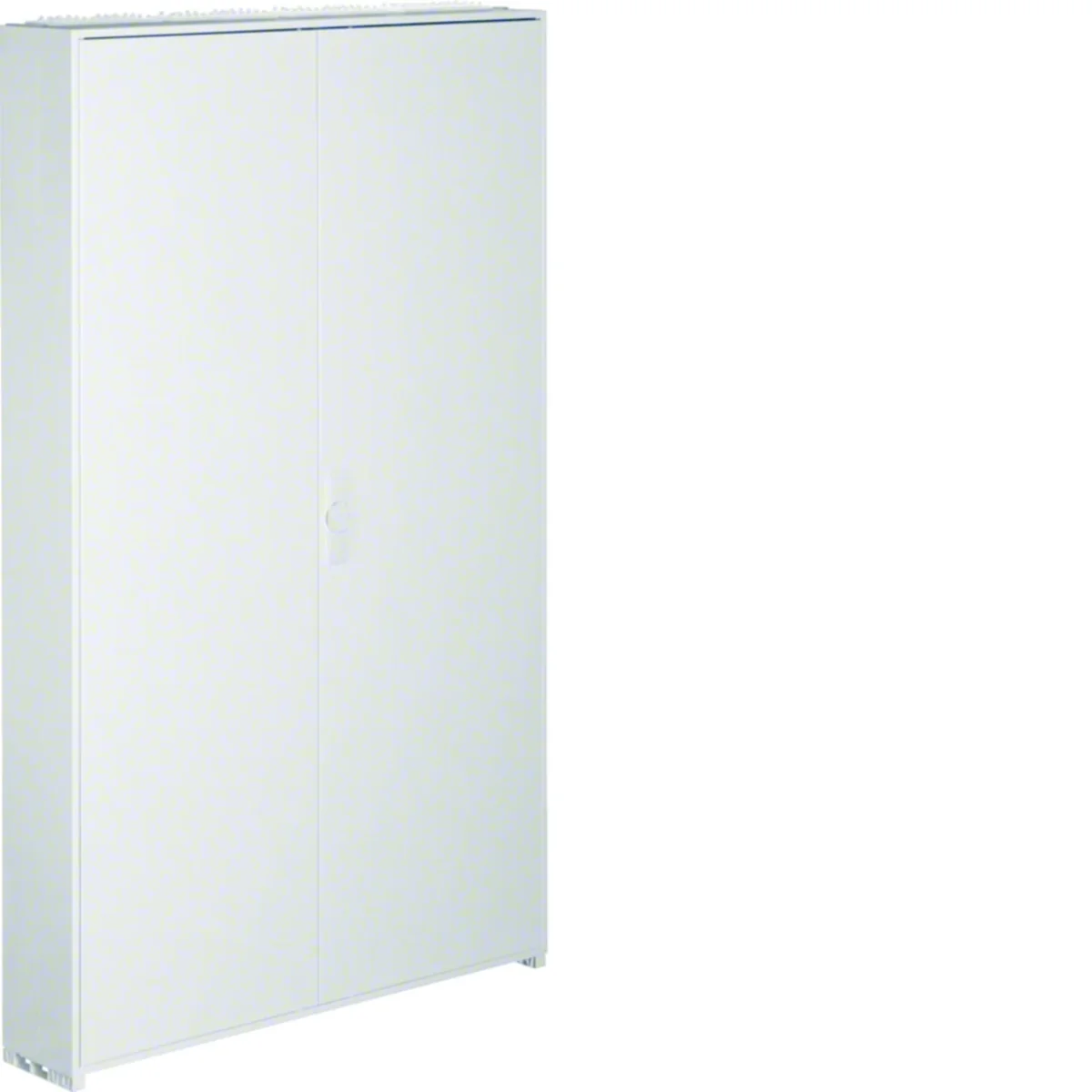

UNIVERS Wall-mounted enclosure IP44/II 1700x1050x205

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 205

Thickness [mm]: 1

Number of doors: 1

See full description

Large-size product

Price:

5 241,77 zł

gross / pcs.

(including VAT 23%)

up to 10 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Wall-mounted housing from univers series:

flush, surface or semi-recessed mounting.

< p> Characteristics of the series:

The cabinet systems are functional, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, guaranteeing at the same time maximum safety.

Technical data

Depth [mm]

205
Number of doors

1
Protection class

II
Material

Galvanized steel sheet
Family

UNIVERS
Width [mm]

1000
Surface finish

Powder coated
Number of sections

4
Number of cable entries

8
PKWIU

27.12.40.0

Thickness [mm]

1
Number of locks

1
Color

Gray
Housing material

Steel plate
Level of security

IP44
Height [mm]

1700
Accurate color

light gray
Number of rows for cameras

11
Lock type

T-Handle

Other technical data

Mounting method

Surface mounted
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

400 A
Width

1050 mm
Built-in depth

205 mm
Material plate thickness cabinet

1 mm
Colour

White
Number of modules

528
Width in number of modular spacings

48
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

II
Circuit integrity

None

Type of covering

Cover
Type of door

Double
With lock

No
Height

1700 mm
Depth

205 mm
Inner depth

143 mm
Material plate thickness door/cover

1 mm
RAL-number

9010
Number of rows

11
Number of openings for flange plates

8
Number of conduit inlets

8
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP44
Impact strength

IK09
Cover with overpressure release

No

Manufacturer details

Manufacturer

Hager Electro GmbH & Co KG
Address

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Paleta	Karton	Paleta
Quantity	1 pcs.	4 pcs.	1 pcs.	4 pcs.
Weight (kg)	45,600	204,400	45,600	204,400
Width (m)	0,210	0,800	0,210	0,800
Length (m)	1,750	1,900	1,750	1,900
Depth (m)	1,070	1,200	1,070	1,200
