UNIVERS Wall-mounted enclosure IP44/II 1550x1300x205 FP05SN2

Name: UNIVERS Wall-mounted enclosure IP44/II 1550x1300x205
Brand: HAGER
SKU: RMN022HAGE
Price: 5393.30 PLN
Availability: BackOrder

Indeks lokalny:

RMN022HAGE

Numer katalogowy:

FP05SN2

Kod EAN:

3250612670161

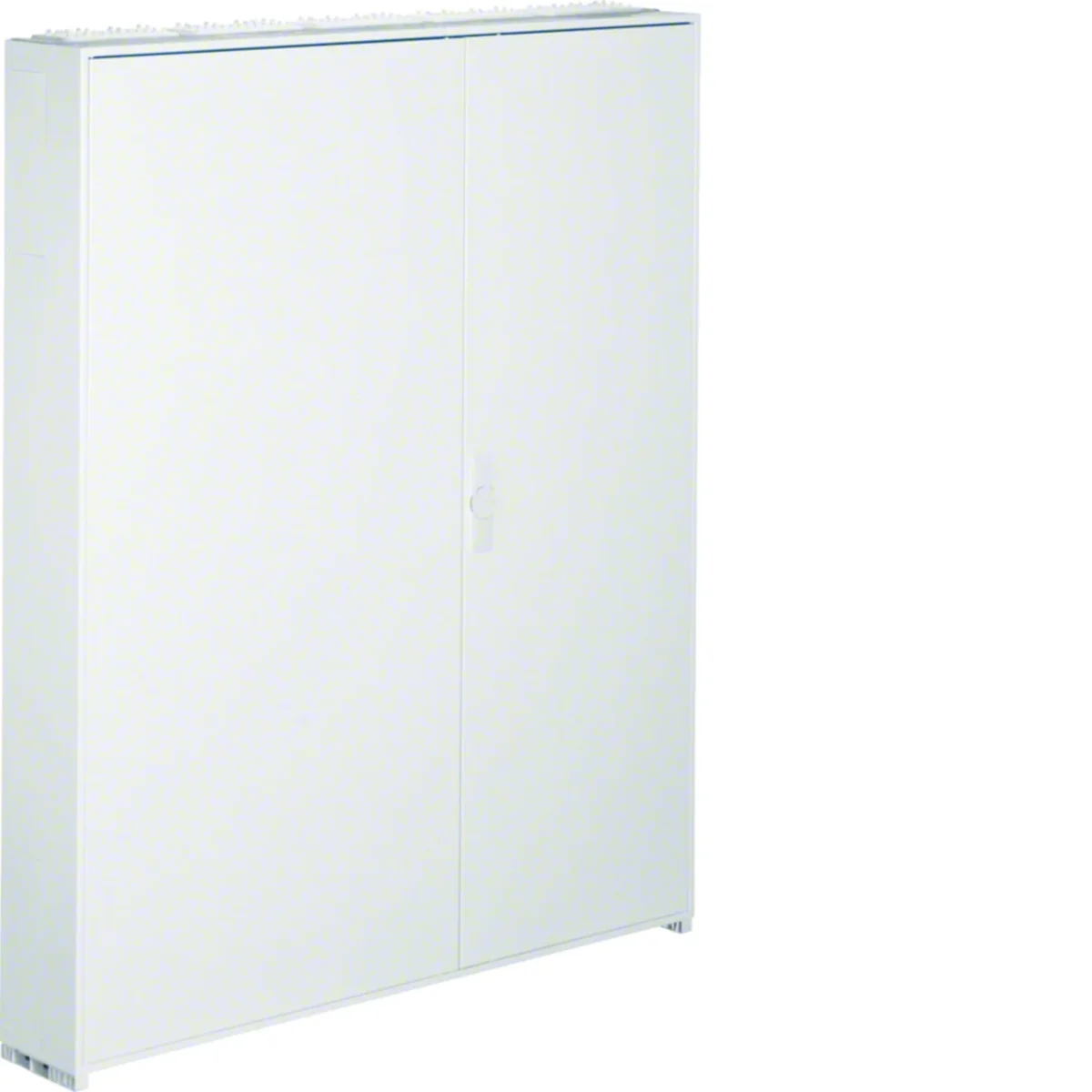

UNIVERS Wall-mounted enclosure IP44/II 1550x1300x205

Kliknij zdjęcie, aby powiększyć

Producent: HAGER

Depth [mm]: 205

Thickness [mm]: 1

Number of doors: 1

Zobacz cały opis

Przesyłka na palecie

Cena:

5 393,30 zł

gross / szt.

(w tym VAT 23%)

do 10 tygodni

Na zamówienie

Ilość szt.

(wielokrotność:

)

Dodaj do zapytania ofertowego

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

Wall-mounted housing from univers series:

flush, surface or semi-recessed mounting.

< p> Characteristics of the series:

The cabinet systems are functional, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, guaranteeing at the same time maximum safety.

Dane techniczne

Depth [mm]

205
Number of doors

1
Protection class

II
Material

Galvanized steel sheet
Family

UNIVERS
Width [mm]

1250
Surface finish

Powder coated
Number of rows for cameras

10
Lock type

T-Handle

Thickness [mm]

1
Number of locks

1
Color

White
Housing material

Steel plate
Level of security

IP44
Height [mm]

1550
Number of sections

5
Number of cable entries

10
PKWIU

27.12.40.0

Pozostałe dane techniczne

Mounting method

Surface mounted
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

400 A
Width

1300 mm
Built-in depth

205 mm
Material plate thickness cabinet

1 mm
Colour

White
Number of modules

600
Width in number of modular spacings

60
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

II
Circuit integrity

None

Type of covering

Cover
Type of door

Double
With lock

No
Height

1550 mm
Depth

205 mm
Inner depth

143 mm
Material plate thickness door/cover

1 mm
RAL-number

9010
Number of rows

10
Number of openings for flange plates

10
Number of conduit inlets

10
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP44
Impact strength

IK09
Cover with overpressure release

No

Dane producenta

Producent

Hager Electro GmbH & Co KG
Adres

DE 66440 Blieskastel Zum Gunterstal Niemcy
Email

wsparcie.klienta@hager.com

Opakowania zbiorcze

Rodzaj opakowania	Karton	Paleta	Karton	Paleta
Ilość	1 szt.	4 szt.	1 szt.	4 szt.
Waga (kg)	53,000	237,000	53,000	237,000
Szerokość (m)	0,210	0,840	0,210	0,840
Długość (m)	1,580	1,740	1,580	1,740
Głębokość (m)	1,320	1,470	1,320	1,470
