UNIVERS Wall-mounted enclosure IP44/II 1400x300x205 FP91SN2

Name: UNIVERS Wall-mounted enclosure IP44/II 1400x300x205
Brand: HAGER
SKU: RMN066HAGE
Price: 1949.99 PLN
Availability: BackOrder

Index local:

RMN066HAGE

Numéro de catalogue:

FP91SN2

Code EAN:

3250612669240

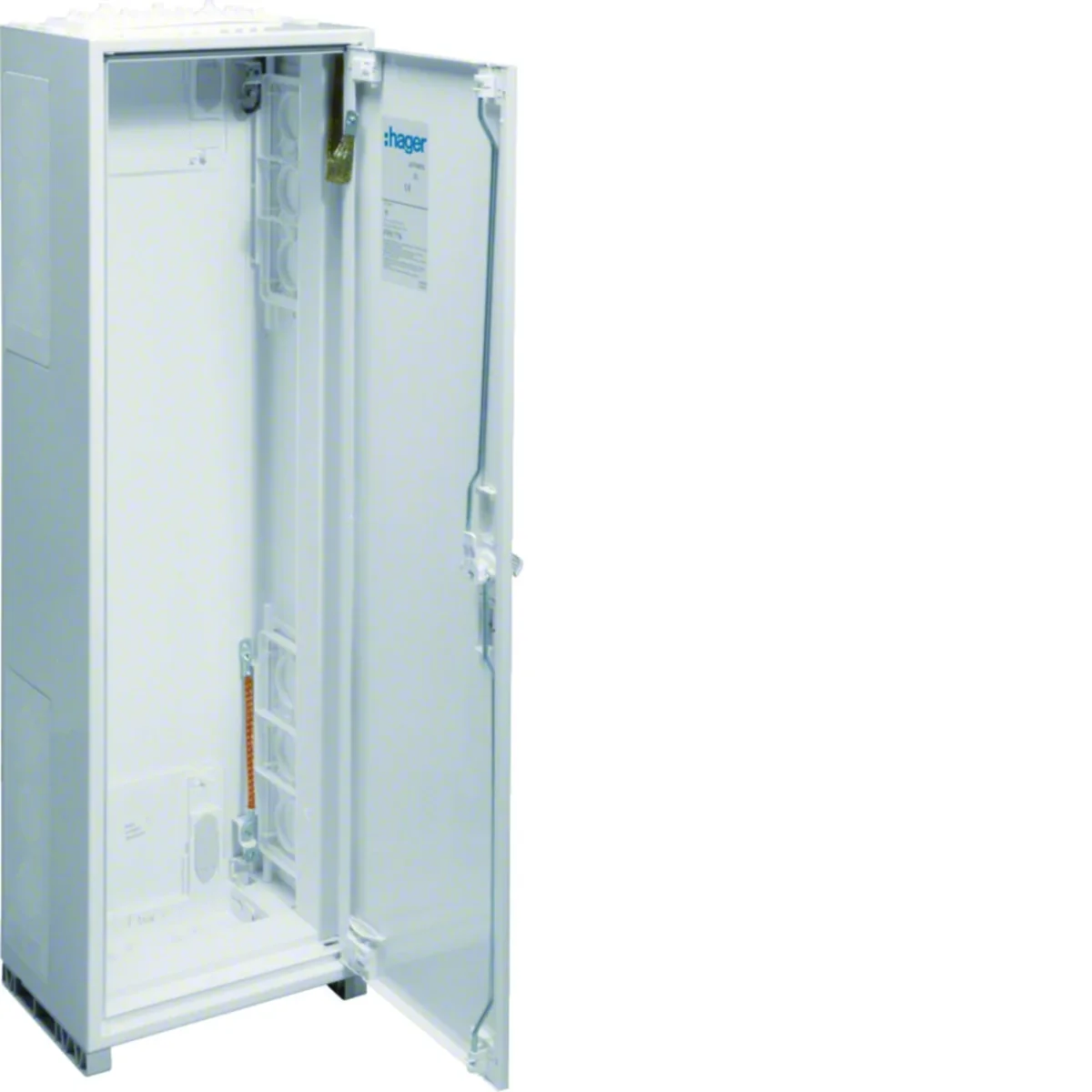

UNIVERS Wall-mounted enclosure IP44/II 1400x300x205

Cliquer sur la photo pour l'agrandir

Producteur: HAGER

Depth [mm]: 205

Thickness [mm]: 1

Number of doors: 1

Voir la description complète

Produit de grande taille

Prix:

1 949,99 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 10 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Wall housing univers series:

QuickSet mounting.

Characteristics of the series:

Cabinet systems are functional, not only as distribution switchgears (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Données techniques

Depth [mm]

205
Number of doors

1
Protection class

II
Material

Galvanized steel sheet
Fixing

QuickSet
Level of security

IP44
Height [mm]

1400
Number of sections

1
Number of cable entries

2
PKWIU

27.12.40.0

Thickness [mm]

1
Number of locks

1
Color

White
Housing material

Steel plate
Family

UNIVERS
Width [mm]

300
Surface finish

Powder coated
Number of rows for cameras

9
Lock type

T-Handle

Autres données techniques

Mounting method

Surface mounted
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

250 A
Width

300 mm
Built-in depth

205 mm
Material plate thickness cabinet

1 mm
Colour

White
Number of modules

108
Width in number of modular spacings

12
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

II
Circuit integrity

None

Type of covering

Cover
Type of door

Single
With lock

No
Height

1400 mm
Depth

205 mm
Inner depth

143 mm
Material plate thickness door/cover

1 mm
RAL-number

9010
Number of rows

9
Number of openings for flange plates

2
Number of conduit inlets

2
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP44
Impact strength

IK09
Cover with overpressure release

No

Détails du fabricant

Producteur

Hager Electro GmbH & Co KG
Adresse

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Emballage en vrac

Une sorte de paquet	Karton	Paleta	Karton	Paleta
Quantité	1 pcs.	12 pcs.	1 pcs.	12 pcs.
poids (kg)	15,500	211,000	15,500	211,000
Largeur (m)	0,210	0,800	0,210	0,800
Longueur (m)	1,450	1,280	1,450	1,280
Profondeur (m)	0,320	1,200	0,320	1,200
