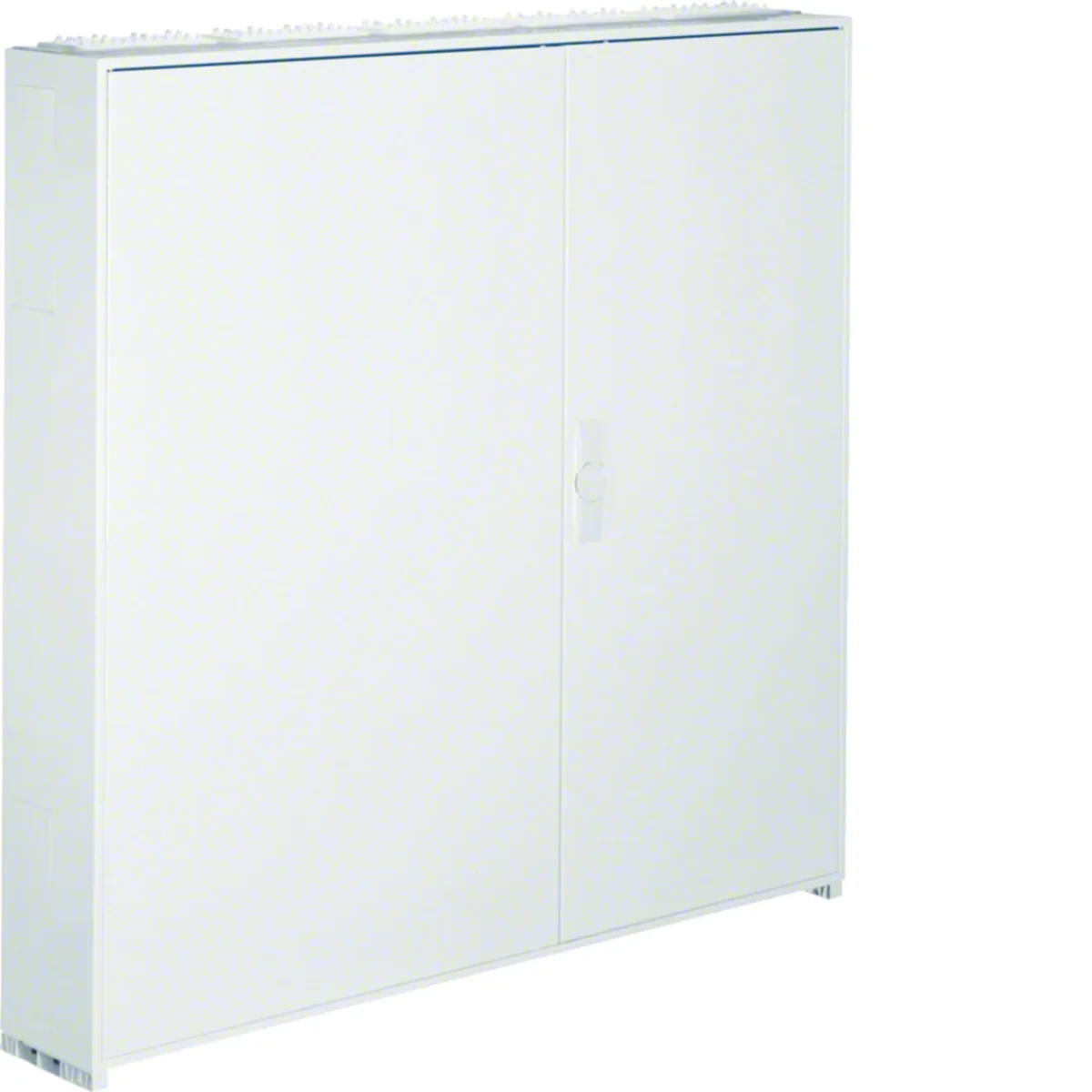

UNIVERS Wall-mounted enclosure IP44/II 1250x1300x205 FP85SN2
local index:
RMN064HAGE
Catalog No:
FP85SN2
EAN code:
3250612669233
Shipment on a pallet
Price:
892,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Wall housing univers:
- QuickSet mounting.
Characteristics of the series:
Cabinet systems are functional, not only as distribution switchgears (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.
Technical data
-
Depth [mm]205
-
Number of doors1
-
Protection classII
-
Materialsteel
-
FixingQuickSet
-
Level of securityIP44
-
Height [mm]1250
-
Number of sections5
-
Number of cable entries10
-
PKWIU27.12.40.0
-
Thickness [mm]1
-
Number of locks1
-
ColorWhite
-
Housing materialSteel plate
-
FamilyUNIVERS
-
Width [mm]1300
-
Surface finishPowder coated
-
Number of rows for cameras8
-
Lock typeT-Handle
Other technical data
-
Mounting methodOther
-
Cover modelClosed
-
Transparent cover/doorNo
-
Nominal current (In)250 A
-
Width1300 mm
-
Built-in depth205 mm
-
Material plate thickness cabinet1 mm
-
ColourWhite
-
Number of modules480
-
Width in number of modular spacings60
-
Extension possibleYes
-
Housing materialSteel
-
With mounting plateNo
-
Suitable for lightning protectionNo
-
Protection classII
-
Circuit integrityNone
-
Type of coveringDoor
-
Type of doorDouble
-
With lockNo
-
Height1250 mm
-
Depth205 mm
-
Inner depth130 mm
-
Material plate thickness door/cover1 mm
-
RAL-number9010
-
Number of rows8
-
Number of openings for flange plates10
-
Number of conduit inlets10
-
Surface protectionPowder coating
-
Suitable for outdoor useNo
-
Degree of protection (IP)IP44
-
Impact strengthIK09
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 4 pcs. |
| Weight (kg) | 38,999 | 39,000 | 181,000 |
| Width (m) | 1,300 | 0,210 | 0,860 |
| Length (m) | 1,250 | 1,320 | 1,890 |
| Depth (m) | 0,205 | 1,310 | 1,330 |
