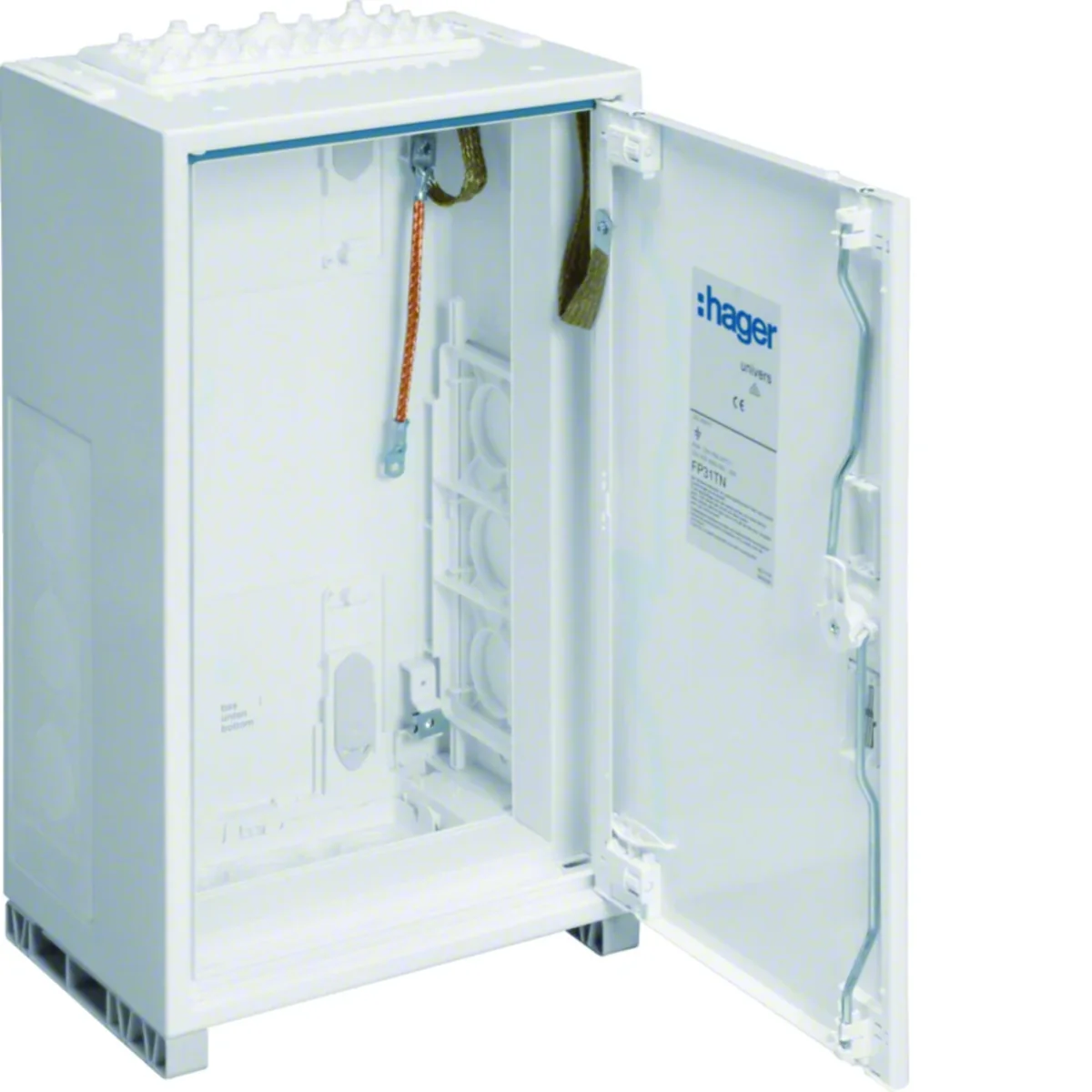

UNIVERS Wall-mounted enclosure IP44/I 650x300x205 FP41TN2

Index local:
RMN033HAGE
Numéro de catalogue:
FP41TN2
Code EAN:
3250612667543
Producteur: HAGER
Depth [mm]: 205
Thickness [mm]: 1
Number of doors: 1
Prix:
1 170,96 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 10 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Wall-mounted housing from univers series:

  • flush, surface or semi-recessed mounting.
< p> Characteristics of the series:

Cabinet systems are functional, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, guaranteeing at the same time maximum safety.

Données techniques

  • Depth [mm]
    205
  • Number of doors
    1
  • Protection class
    AND
  • Material
    Galvanized steel sheet
  • Family
    UNIVERS
  • Width [mm]
    250
  • Surface finish
    Powder coated
  • Number of sections
    1
  • Number of cable entries
    2
  • Thickness [mm]
    1
  • Number of locks
    1
  • Color
    Gray
  • Housing material
    Steel plate
  • Level of security
    IP44
  • Height [mm]
    650
  • Accurate color
    light gray
  • Number of rows for cameras
    4
  • PKWIU
    27.12.40.0

Autres données techniques

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    250 A
  • Width
    300 mm
  • Built-in depth
    205 mm
  • Material plate thickness cabinet
    1 mm
  • Colour
    White
  • Number of modules
    48
  • Width in number of modular spacings
    12
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    I
  • Circuit integrity
    None
  • Type of covering
    Cover
  • Type of door
    Single
  • With lock
    No
  • Height
    650 mm
  • Depth
    205 mm
  • Inner depth
    205 mm
  • Material plate thickness door/cover
    1 mm
  • RAL-number
    9010
  • Number of rows
    4
  • Number of openings for flange plates
    2
  • Number of conduit inlets
    2
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP44
  • Impact strength
    IK09
  • Cover with overpressure release
    No

Détails du fabricant

Emballage en vrac

Une sorte de paquet Karton Paleta Karton Paleta
Quantité 1 pcs. 10 pcs. 1 pcs. 10 pcs.
poids (kg) 8,280 107,800 8,280 107,800
Largeur (m) 0,310 0,800 0,310 0,800
Longueur (m) 0,690 0,780 0,690 0,780
Profondeur (m) 0,220 1,200 0,220 1,200
