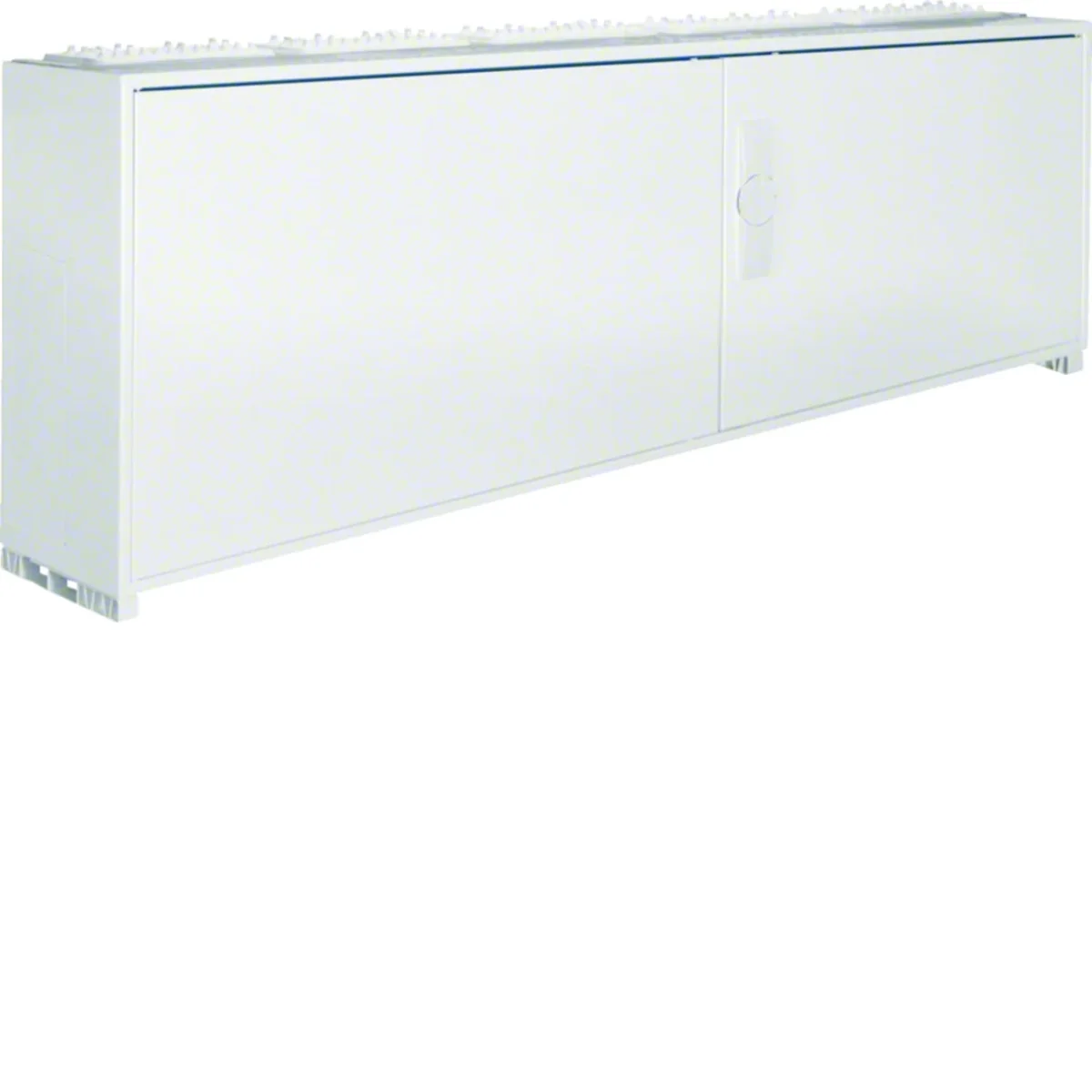

UNIVERS Wall-mounted enclosure IP44/I 500x1300x205 FP35TN2

Внутрішній артикул:
RMN032HAGE
№ каталоговий:
FP35TN2
Код EAN:
3250612667499
Виробник: HAGER
Depth [mm]: 205
Thickness [mm]: 1
Number of doors: 1
Виріб великого розміру
Ціна:
2 139,41 zł
gross / шт.
(з ПДВ 23%)
до 10 тижнів
На замовлення
Кількість шт.
(багаторазовий:
1
)
Додати до запиту на пропозицію
Додати в буфер обміну
Роздрукувати

Опис товару

Wall-mounted housing from univers series:

  • flush, surface or semi-recessed mounting.
< p> Characteristics of the series:

The cabinet systems are functional, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, guaranteeing at the same time maximum safety.

Технічні дані

  • Depth [mm]
    205
  • Number of doors
    1
  • Protection class
    AND
  • Material
    steel
  • Family
    UNIVERS
  • Width [mm]
    1250
  • Surface finish
    Powder coated
  • Number of rows for cameras
    3
  • Lock type
    T-Handle
  • Thickness [mm]
    1
  • Number of locks
    1
  • Color
    White
  • Housing material
    Steel plate
  • Level of security
    IP44
  • Height [mm]
    500
  • Number of sections
    5
  • Number of cable entries
    10
  • PKWIU
    27.12.40.0

Інші технічні дані

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    250 A
  • Width
    1300 mm
  • Built-in depth
    205 mm
  • Material plate thickness cabinet
    1 mm
  • Colour
    White
  • Number of modules
    180
  • Width in number of modular spacings
    60
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    I
  • Circuit integrity
    None
  • Type of covering
    Cover
  • Type of door
    Double
  • With lock
    No
  • Height
    500 mm
  • Depth
    205 mm
  • Inner depth
    205 mm
  • Material plate thickness door/cover
    1 mm
  • RAL-number
    9010
  • Number of rows
    3
  • Number of openings for flange plates
    10
  • Number of conduit inlets
    10
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP44
  • Impact strength
    IK09
  • Cover with overpressure release
    No

Інформація про виробника

  • Виробник
    Hager Electro GmbH & Co KG
  • Адреса
    DE 66440 Blieskastel Zum Gunterstal Niemcy
  • Електронна пошта

Об'ємна упаковка

Свого роду пакет Karton Paleta Karton Paleta
Кількість 1 шт. 8 шт. 1 шт. 8 шт.
Вага (кг) 20,830 191,640 20,830 191,640
Ширина (м) 0,210 0,860 0,210 0,860
Довжина (м) 1,310 1,460 1,310 1,460
Глибина (м) 0,540 1,200 0,540 1,200
