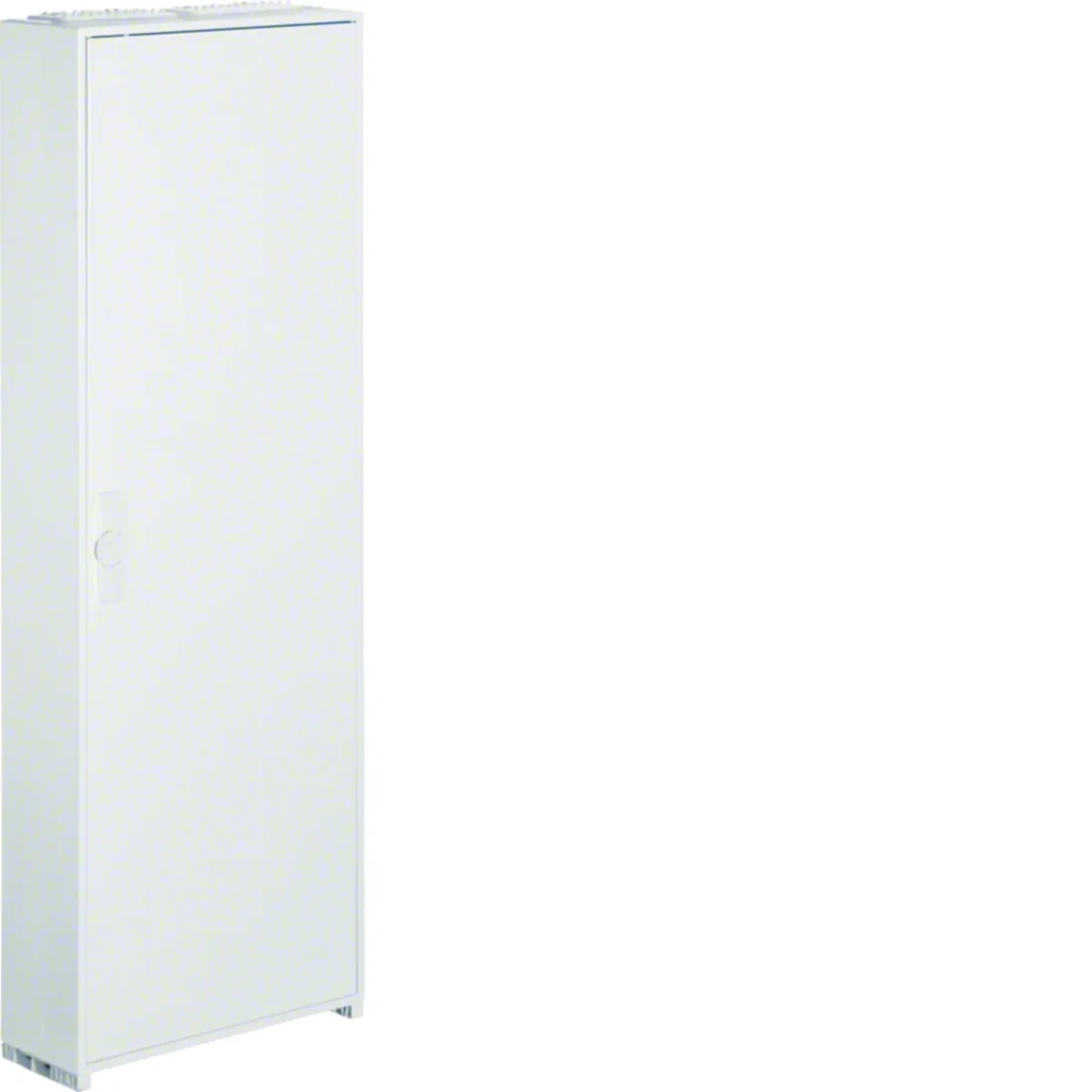

UNIVERS Wall-mounted enclosure IP44/I 1700x550x205 FP12TN2

local index:
RMN025HAGE
Catalog No:
FP12TN2
EAN code:
3250612668342
Manufacturer: HAGER
Depth [mm]: 205
Thickness [mm]: 1
Number of doors: 1
Large-size product
Price:
782,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Wall-mounted housing from univers series:

  • flush, surface or semi-recessed mounting.
< p> Characteristics of the series:

The cabinet systems are functional, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, guaranteeing at the same time maximum safety.

Technical data

  • Depth [mm]
    205
  • Number of doors
    1
  • Protection class
    AND
  • Material
    steel
  • Family
    UNIVERS
  • Width [mm]
    500
  • Surface finish
    Powder coated
  • Number of sections
    2
  • Number of cable entries
    4
  • Thickness [mm]
    1
  • Number of locks
    1
  • Color
    Gray
  • Housing material
    Steel plate
  • Level of security
    IP44
  • Height [mm]
    1700
  • Accurate color
    light gray
  • Number of rows for cameras
    11
  • PKWIU
    27.12.40.0

Other technical data

  • Mounting method
    Other
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    250 A
  • Width
    550 mm
  • Built-in depth
    205 mm
  • Material plate thickness cabinet
    1 mm
  • Colour
    White
  • Number of modules
    264
  • Width in number of modular spacings
    24
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    I
  • Circuit integrity
    None
  • Type of covering
    Cover
  • Type of door
    Single
  • With lock
    No
  • Height
    1700 mm
  • Depth
    205 mm
  • Inner depth
    205 mm
  • Material plate thickness door/cover
    1 mm
  • RAL-number
    9010
  • Number of rows
    11
  • Number of openings for flange plates
    4
  • Number of conduit inlets
    4
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP44
  • Impact strength
    IK09

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 8 pcs.
Weight (kg) 26,530 27,700 246,600
Width (m) 0,560 0,560 0,885
Length (m) 1,750 1,750 1,900
Depth (m) 0,210 0,210 1,200
