UNIVERS Series standing enclosure IP41 2000x1350x600 5-pole sheet FG25XE
local index:
RMS022HAGE
Catalog No:
FG25XE
EAN code:
7611919320429
Shipment on a pallet
Price:
1802,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

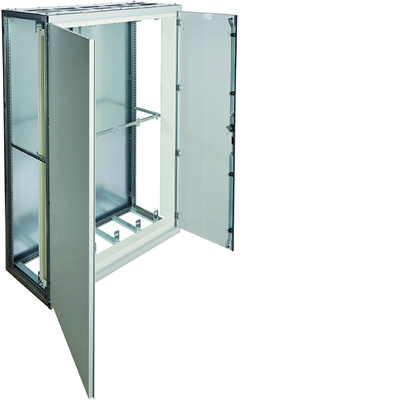

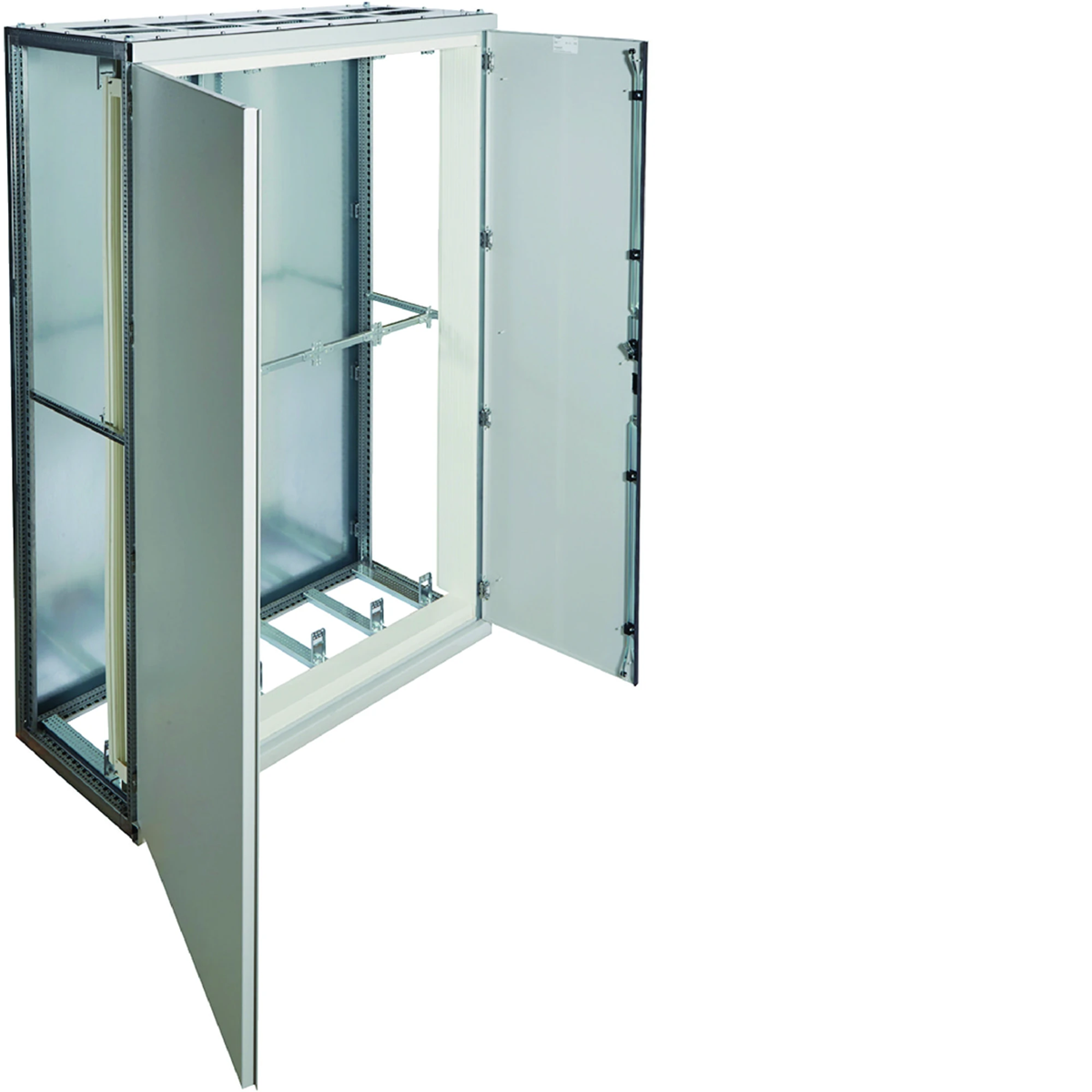

Standing row enclosure 5-pole, univers series.
Series characteristics:
Cabinet systems they are characterized by the functionality of the installation, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.
Technical data
-
Depth [mm]600
-
Number of doors2
-
Protection classAND
-
Housing materialSteel plate
-
Level of securityIP41
-
Height [mm]2000
-
Number of rows for cameras12
-
Lock type3mm double closures
-
Thickness [mm]2
-
Number of locks1
-
Materialsteel
-
FamilyUNIVERS
-
Width [mm]1350
-
Surface finishPowder coated
-
Number of cable entries10
-
PKWIU27.12.40.0
Other technical data
-
Mounting methodFloor installation
-
Cover modelWith notch
-
Transparent cover/doorNo
-
Nominal current (In)1600 A
-
Width1350 mm
-
Inner depth596 mm
-
Material plate thickness door/cover2 mm
-
RAL-number7035
-
Extension possibleYes
-
Housing materialSteel
-
With mounting plateNo
-
Degree of protection (IP)IP41
-
Impact strengthIK10
-
Type of coveringDoor
-
Type of doorDouble
-
With lockYes
-
Height2000 mm
-
Depth600 mm
-
Material plate thickness cabinet2 mm
-
ColourGrey
-
Number of openings for flange plates10
-
Number of conduit inlets6
-
Surface protectionPowder coating
-
Suitable for outdoor useNo
-
Protection classI
-
Circuit integrityNone
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 1 pcs. |
| Weight (kg) | 130,899 | 138,500 | 164,500 |
| Width (m) | 1,150 | 0,600 | 0,800 |
| Length (m) | 2,000 | 2,000 | 2,170 |
| Depth (m) | 0,600 | 1,350 | 1,450 |
