UNIVERS Series floor standing enclosure IP54/II 1900x350x400 1-pole FG21SD

Lokaler Index:
RMS025HAGE
Katalognummer:
FG21SD
EAN-Code:
3250612794935
Hersteller: HAGER
Depth [mm]: 400
Thickness [mm]: 2
Number of doors: 1
Versand auf Palette
Preis:
12 319,88 zł
gross / stk.
(inklusive MwSt 23%)
bis zu 10 Wochen
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

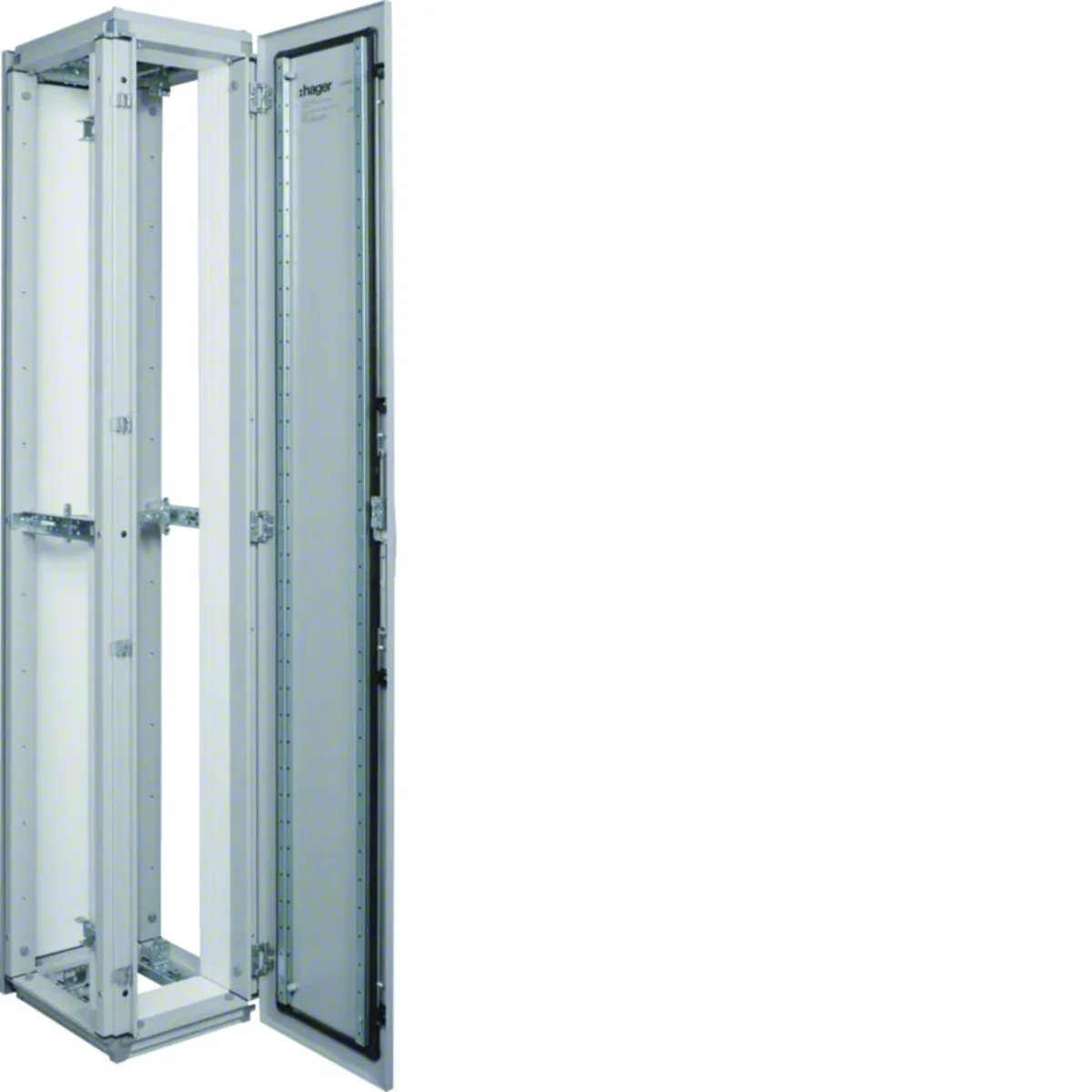

Single-pole row-mounted enclosurewith plain door, univers N series:

  • type of lock: double locks 3mm,
  • assembly: free-standing or wall-mounted installations.

Characteristics of the series:

Cabinet systems are characterized by built-in functionality, not only as switchboards distribution (main power supply), but also as metering cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technische Daten

  • Depth [mm]
    400
  • Number of doors
    1
  • Protection class
    II
  • Housing material
    Plastic / Steel sheet
  • Level of security
    IP54
  • Height [mm]
    1900
  • Number of sections
    1
  • Number of cable entries
    2
  • PKWIU
    27.12.40.0
  • Thickness [mm]
    2
  • Number of locks
    1
  • Material
    steel
  • Family
    UNIVERS
  • Width [mm]
    360
  • Surface finish
    Powder coated
  • Number of rows for cameras
    12
  • Lock type
    3mm double closures

Weitere technische Daten

  • Mounting method
    Floor installation
  • Cover model
    With notch
  • Transparent cover/door
    No
  • Nominal current (In)
    1600 A
  • Width
    360 mm
  • Built-in depth
    400 mm
  • Material plate thickness cabinet
    2 mm
  • Colour
    Grey
  • Number of modules
    144
  • Width in number of modular spacings
    12
  • Extension possible
    Yes
  • Housing material
    Steel/plastic
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    II
  • Circuit integrity
    None
  • Type of covering
    Door
  • Type of door
    Double
  • With lock
    Yes
  • Height
    1900 mm
  • Depth
    400 mm
  • Inner depth
    400 mm
  • Material plate thickness door/cover
    2 mm
  • RAL-number
    7035
  • Number of rows
    12
  • Number of openings for flange plates
    2
  • Number of conduit inlets
    2
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP54
  • Impact strength
    IK10
  • Cover with overpressure release
    No

Hersteller-Details

Großpackungen

Eine Art Paket Karton Paleta Karton Paleta
Menge 1 stk. 3 stk. 1 stk. 3 stk.
Gewicht (kg) 40,000 145,000 40,000 145,000
Breite (m) 0,450 0,800 0,450 0,800
Länge (m) 1,910 2,050 1,910 2,050
Tiefe (m) 0,370 1,200 0,370 1,200
