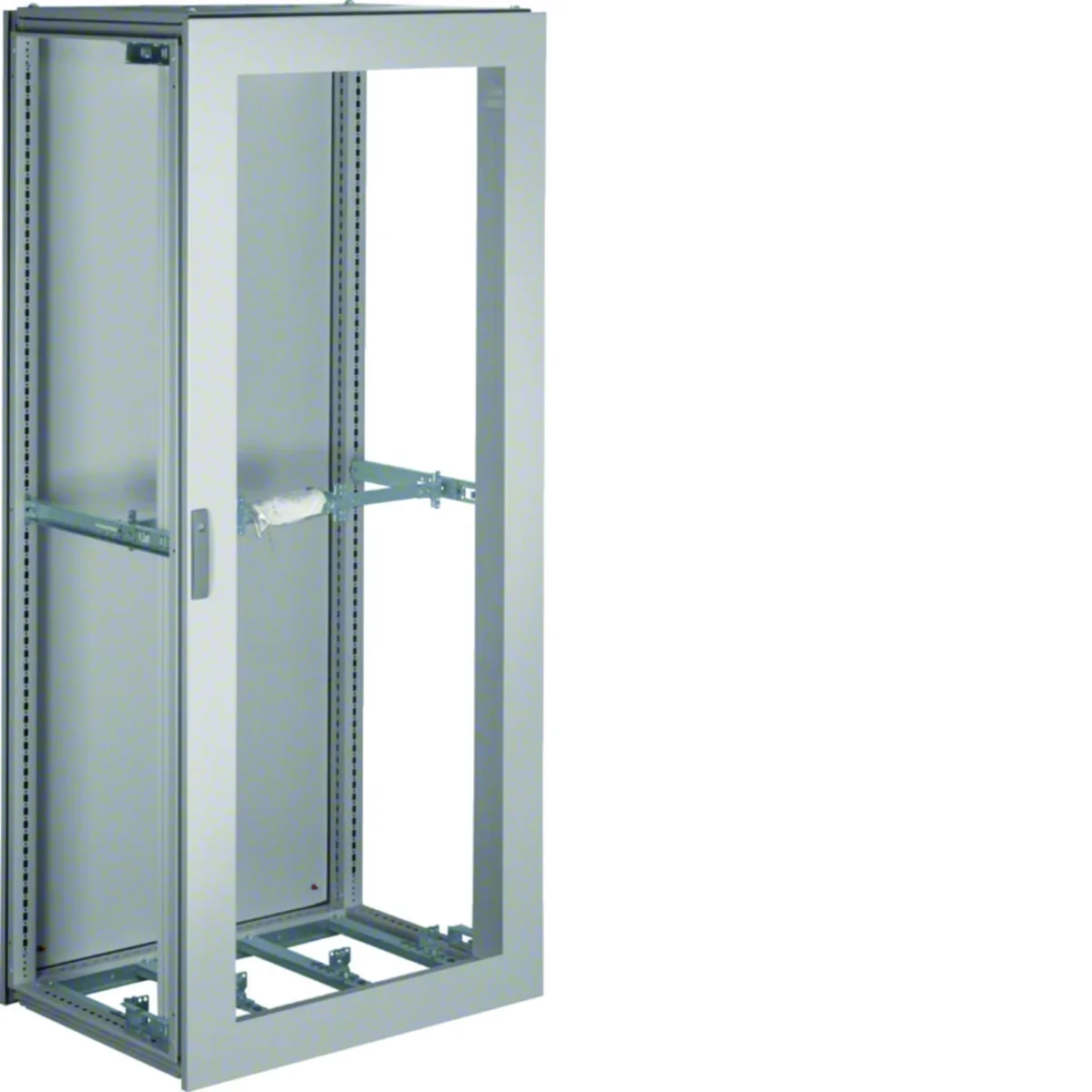

UNIVERS Series floor standing enclosure IP54/I 1900x800x600 3-field transparent door FG23KD

local index:
RMS029HAGE
Catalog No:
FG23KD
EAN code:
3250612794812
Manufacturer: HAGER
Depth [mm]: 600
Thickness [mm]: 1.5
Number of doors: 1
Shipment on a pallet
Price:
2111,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Three-pole serial floor-standing enclosurewith transparent door, univers N series:

  • type of lock: double locks 3mm,
  • assembly: free-standing or wall-mounted installations.

Series characteristics:

Cabinet systems are characterized by built-in functionality, not only as switchboards distribution cabinets (main power supply), but also as metering cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

  • Depth [mm]
    600
  • Number of doors
    1
  • Protection class
    AND
  • Housing material
    Steel plate
  • Level of security
    IP54
  • Height [mm]
    1900
  • Number of sections
    3
  • Number of cable entries
    6
  • PKWIU
    27.12.40.0
  • Thickness [mm]
    1.5
  • Number of locks
    1
  • Material
    Galvanized steel sheet
  • Family
    UNIVERS
  • Width [mm]
    800
  • Surface finish
    Powder coated
  • Number of rows for cameras
    36
  • Lock type
    3mm double closures

Other technical data

  • Mounting method
    Floor installation
  • Cover model
    Closed
  • Transparent cover/door
    Yes
  • Nominal current (In)
    1600 A
  • Width
    800 mm
  • Built-in depth
    600 mm
  • Material plate thickness cabinet
    1.5 mm
  • Colour
    Grey
  • Number of modules
    432
  • Width in number of modular spacings
    36
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    I
  • Circuit integrity
    None
  • Type of covering
    Door
  • Type of door
    Double
  • With lock
    Yes
  • Height
    1900 mm
  • Depth
    600 mm
  • Inner depth
    600 mm
  • Material plate thickness door/cover
    1.5 mm
  • RAL-number
    7035
  • Number of rows
    36
  • Number of openings for flange plates
    6
  • Number of conduit inlets
    6
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP54
  • Impact strength
    IK10

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 1 pcs.
Weight (kg) 111,001 116,000 116,000
Width (m) 0,800 0,600 0,800
Length (m) 1,900 1,900 2,050
Depth (m) 0,600 0,850 1,200
