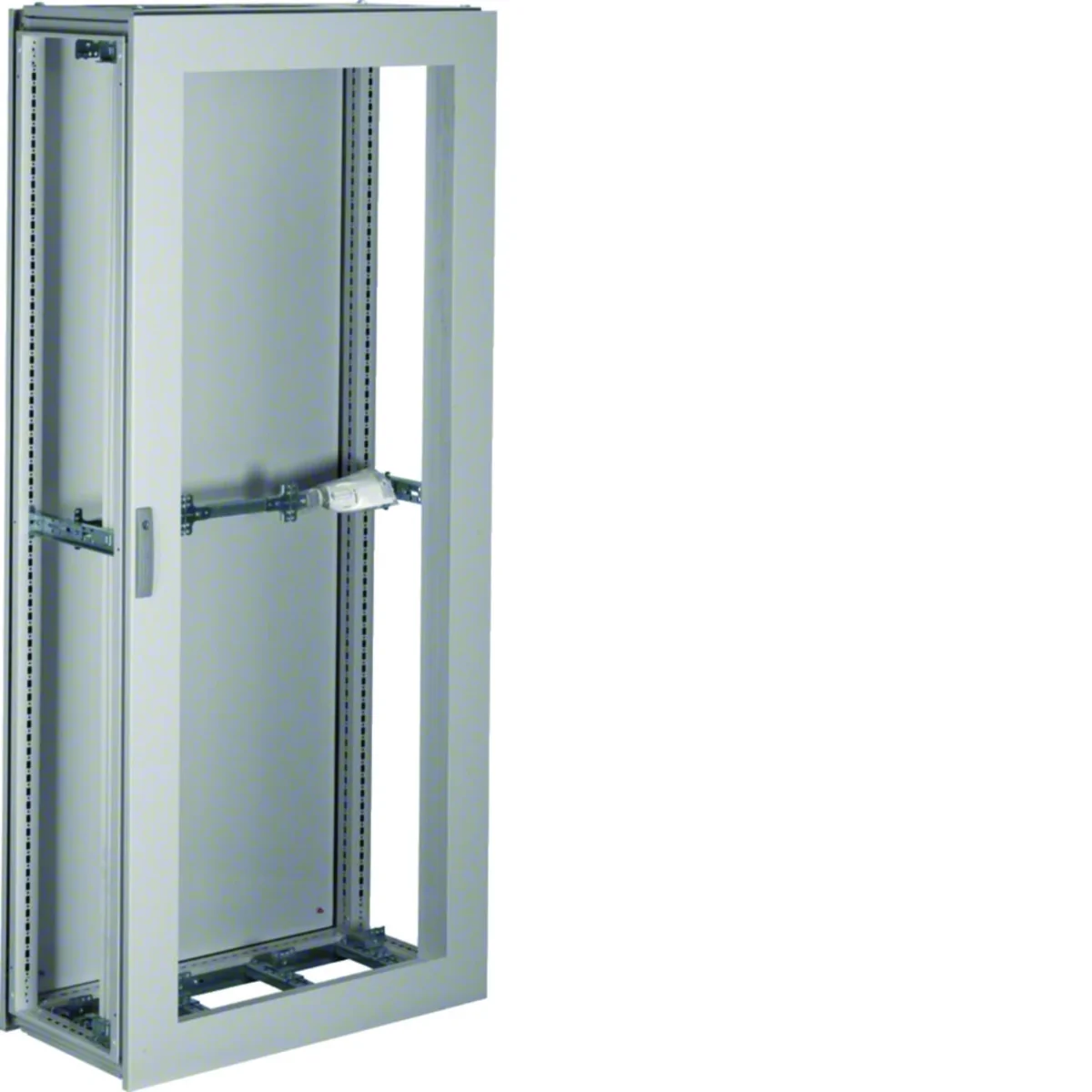

UNIVERS Series floor standing enclosure IP54/I 1900x800x400 3-field transparent door FG23LD
local index:
RMS030HAGE
Catalog No:
FG23LD
EAN code:
3250612794683
Shipment on a pallet
Price:
2507,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Three-pole serial floor-standing enclosurewith transparent door, univers N series:
- type of lock: double locks 3mm,
- assembly: free-standing or wall-mounted installations.
Series characteristics:
Cabinet systems are characterized by built-in functionality, not only as switchboards distribution cabinets (main power supply), but also as metering cabinets - they always form one, compact whole, while guaranteeing maximum safety.
Technical data
-
Depth [mm]400
-
Number of doors1
-
Protection classAND
-
Housing materialSteel plate
-
Level of securityIP54
-
Height [mm]1900
-
Number of sections3
-
Number of cable entries6
-
PKWIU27.12.40.0
-
Thickness [mm]2
-
Number of locks1
-
MaterialGalvanized steel sheet
-
FamilyUNIVERS
-
Width [mm]800
-
Surface finishPowder coated
-
Number of rows for cameras36
-
Lock type3mm double closures
Other technical data
-
Mounting methodFloor installation
-
Cover modelClosed
-
Transparent cover/doorYes
-
Nominal current (In)1600 A
-
Width800 mm
-
Built-in depth400 mm
-
Material plate thickness cabinet2 mm
-
ColourGrey
-
Number of modules432
-
Width in number of modular spacings36
-
Extension possibleYes
-
Housing materialSteel
-
With mounting plateNo
-
Suitable for lightning protectionNo
-
Protection classI
-
Circuit integrityNone
-
Type of coveringDoor
-
Type of doorDouble
-
With lockYes
-
Height1900 mm
-
Depth400 mm
-
Inner depth400 mm
-
Material plate thickness door/cover2 mm
-
RAL-number7035
-
Number of rows36
-
Number of openings for flange plates6
-
Number of conduit inlets6
-
Surface protectionPowder coating
-
Suitable for outdoor useNo
-
Degree of protection (IP)IP54
-
Impact strengthIK10
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 1 pcs. |
| Weight (kg) | 69,000 | 70,000 | 95,000 |
| Width (m) | 0,430 | 0,430 | 0,800 |
| Length (m) | 1,940 | 1,940 | 2,100 |
| Depth (m) | 0,880 | 0,880 | 1,200 |
