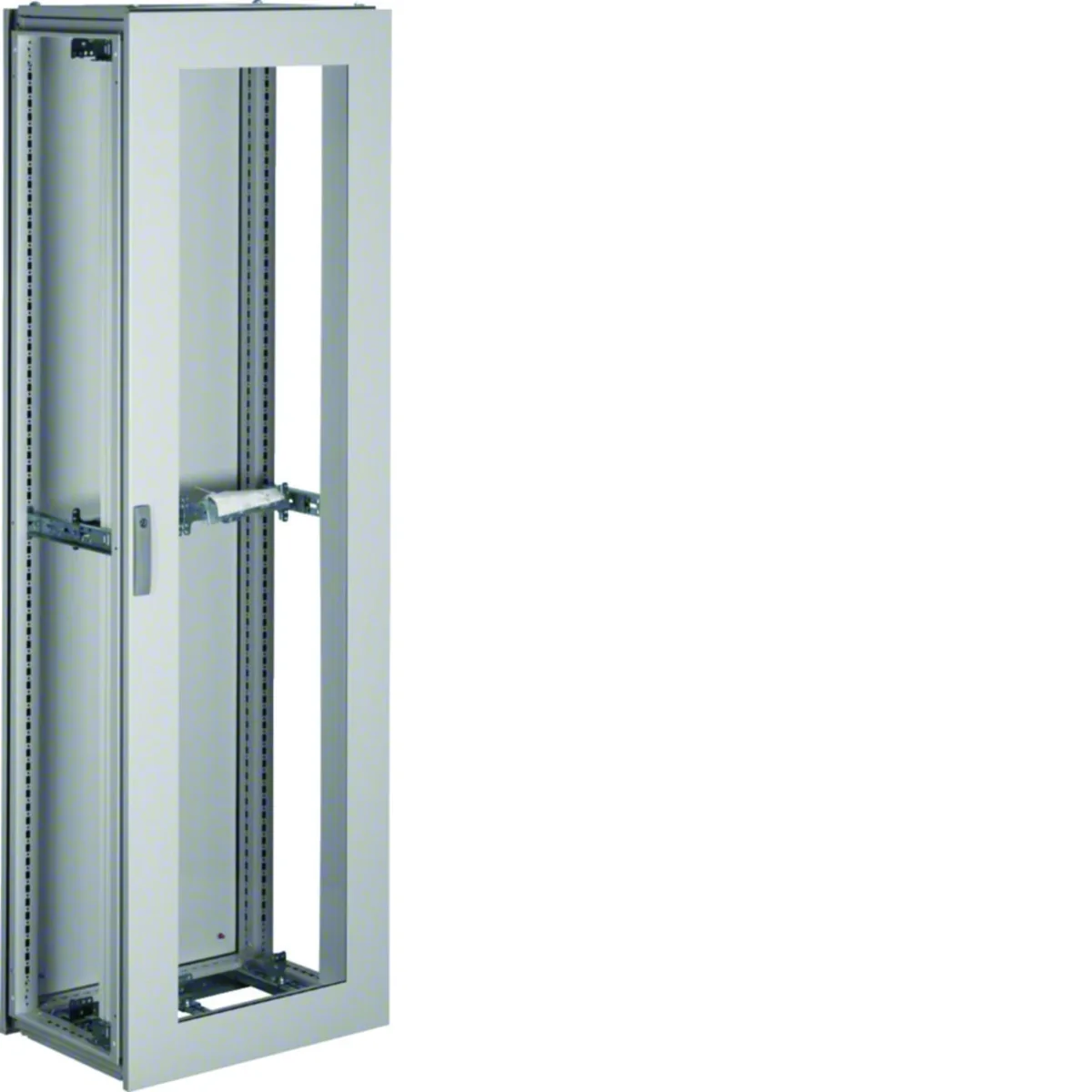

UNIVERS Series floor standing enclosure IP54/I 1900x600x400 2-field transparent door FG22LD

local index:
RMS028HAGE
Catalog No:
FG22LD
EAN code:
3250612794676
Manufacturer: HAGER
Depth [mm]: 400
Thickness [mm]: 2
Number of doors: 1
Shipment on a pallet
Price:
1947,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

2-pole row-mounted enclosurewith transparent door, univers N series:

  • type of lock: double locks 3mm,
  • assembly: free-standing or wall-mounted installations.

Characteristics of the series:

Cabinet systems are characterized by built-in functionality, not only as switchboards distribution (main power supply), but also as metering cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

  • Depth [mm]
    400
  • Number of doors
    1
  • Protection class
    AND
  • Housing material
    Steel plate
  • Level of security
    IP54
  • Height [mm]
    1900
  • Number of sections
    2
  • Number of cable entries
    4
  • PKWIU
    27.12.40.0
  • Thickness [mm]
    2
  • Number of locks
    1
  • Material
    Galvanized steel sheet
  • Family
    UNIVERS
  • Width [mm]
    600
  • Surface finish
    Powder coated
  • Number of rows for cameras
    24
  • Lock type
    3mm double closures

Other technical data

  • Mounting method
    Floor installation
  • Cover model
    Closed
  • Transparent cover/door
    Yes
  • Nominal current (In)
    1600 A
  • Width
    600 mm
  • Built-in depth
    400 mm
  • Material plate thickness cabinet
    2 mm
  • Colour
    Grey
  • Number of modules
    288
  • Width in number of modular spacings
    24
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    I
  • Circuit integrity
    None
  • Type of covering
    Door
  • Type of door
    Double
  • With lock
    Yes
  • Height
    1900 mm
  • Depth
    400 mm
  • Inner depth
    400 mm
  • Material plate thickness door/cover
    2 mm
  • RAL-number
    7035
  • Number of rows
    24
  • Number of openings for flange plates
    4
  • Number of conduit inlets
    4
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP54
  • Impact strength
    IK10

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 2 pcs.
Weight (kg) 67,400 67,500 160,000
Width (m) 0,430 0,430 0,800
Length (m) 1,925 1,925 2,070
Depth (m) 0,620 0,620 1,200
