UNIVERS Series floor standing enclosure IP54/I 1900x350x400 1-field transparent door FG21LD

Name: UNIVERS Series floor standing enclosure IP54/I 1900x350x400 1-field transparent door
Brand: HAGER
SKU: RMS024HAGE
Price: 7344.67 PLN
Availability: BackOrder

Indice locale:

RMS024HAGE

Numero di catalogo:

FG21LD

Codice EAN:

3250612794669

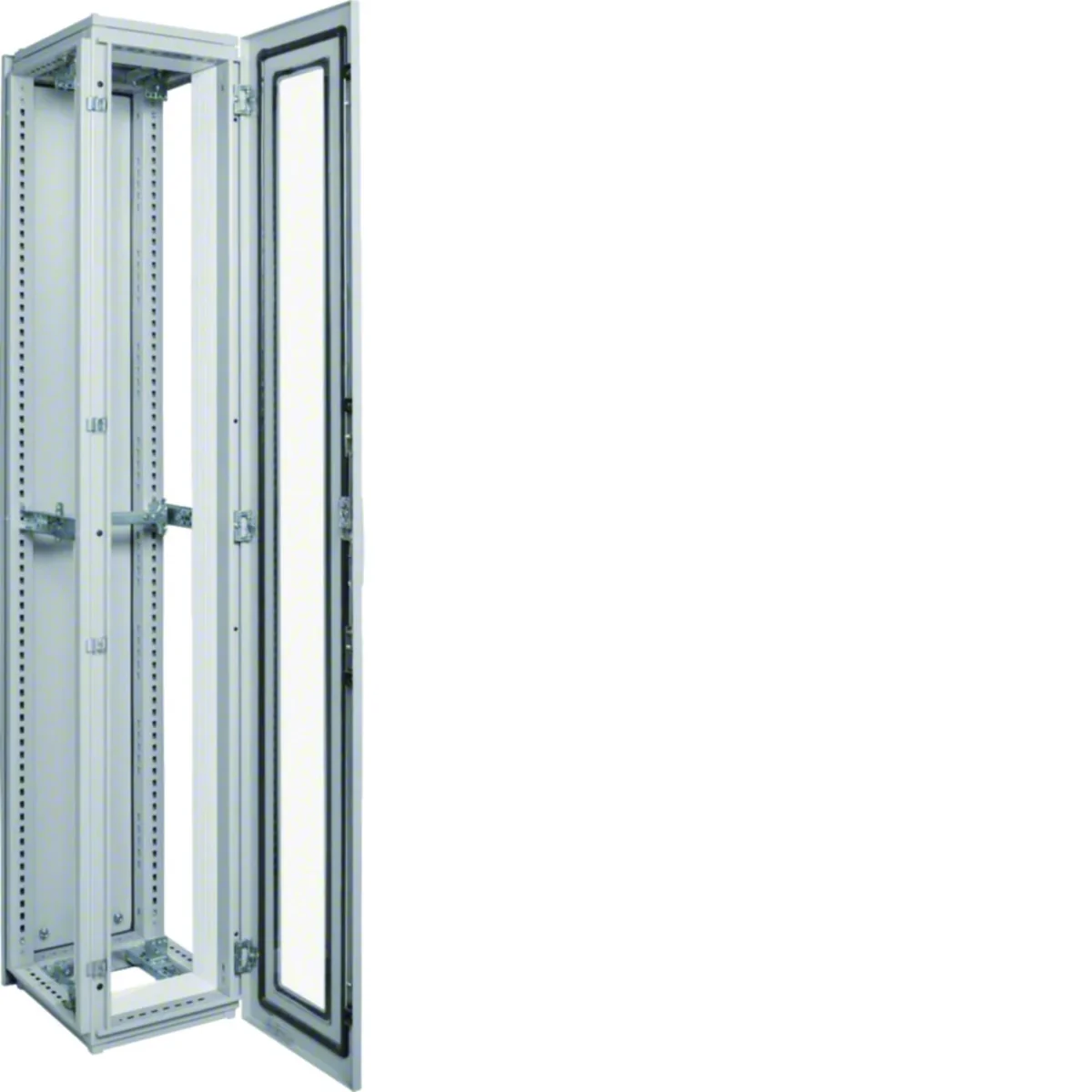

UNIVERS Series floor standing enclosure IP54/I 1900x350x400 1-field transparent door

Clicca sulla foto per ingrandire

Produttore: HAGER

Depth [mm]: 400

Thickness [mm]: 2

Number of doors: 1

Vedi la descrizione completa

Spedizione su pallet

Prezzo:

7 344,67 zł

gross / pezzi

(inclusa IVA 23%)

fino a 10 settimane

Su ordinazione

Quantità pezzi

(multiplo:

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

Multi-pole row-mounted enclosurewith transparent door, univers N series:

type of lock: double locks 3mm,
assembly: free-standing or wall-mounted installations.

Series characteristics:

Cabinet systems are characterized by built-in functionality, not only as switchboards distribution cabinets (main power supply), but also as metering cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Dati tecnici

Depth [mm]

400
Number of doors

1
Protection class

AND
Housing material

Steel plate
Level of security

IP54
Height [mm]

1900
Number of sections

1
Number of cable entries

2
PKWIU

27.12.40.0

Thickness [mm]

2
Number of locks

1
Material

Galvanized steel sheet
Family

UNIVERS
Width [mm]

350
Surface finish

Powder coated
Number of rows for cameras

12
Lock type

3mm double closures

Altri dati tecnici

Mounting method

Floor installation
Cover model

Closed
Transparent cover/door

Yes
Nominal current (In)

1600 A
Width

350 mm
Built-in depth

400 mm
Material plate thickness cabinet

2 mm
Colour

Grey
Number of modules

144
Width in number of modular spacings

12
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

I
Circuit integrity

None

Type of covering

Door
Type of door

Double
With lock

Yes
Height

1900 mm
Depth

400 mm
Inner depth

400 mm
Material plate thickness door/cover

2 mm
RAL-number

7035
Number of rows

12
Number of openings for flange plates

2
Number of conduit inlets

2
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP54
Impact strength

IK10
Cover with overpressure release

No

Dettagli del produttore

Produttore

Hager Electro GmbH & Co KG
Indirizzo

DE 66440 Blieskastel Zum Gunterstal Niemcy
Email

wsparcie.klienta@hager.com

Imballaggio sfuso

Una specie di pacchetto	Karton	Paleta	Karton	Paleta
Quantità	1 pezzi	4 pezzi	1 pezzi	4 pezzi
Peso (kg)	74,000	296,000	74,000	296,000
Larghezza (m)	0,350	0,800	0,350	0,800
Lunghezza (m)	2,040	2,190	2,040	2,190
Profondità (m)	0,600	1,200	0,600	1,200
