UNIVERS Series floor standing enclosure IP54/I 1900x1350x600 5-pole FG25XD

Name: UNIVERS Series floor standing enclosure IP54/I 1900x1350x600 5-pole
Brand: HAGER
SKU: RMS037HAGE
Price: 2916.27 PLN

Indice locale:

RMS037HAGE

Numero di catalogo:

FG25XD

Codice EAN:

3250612794775

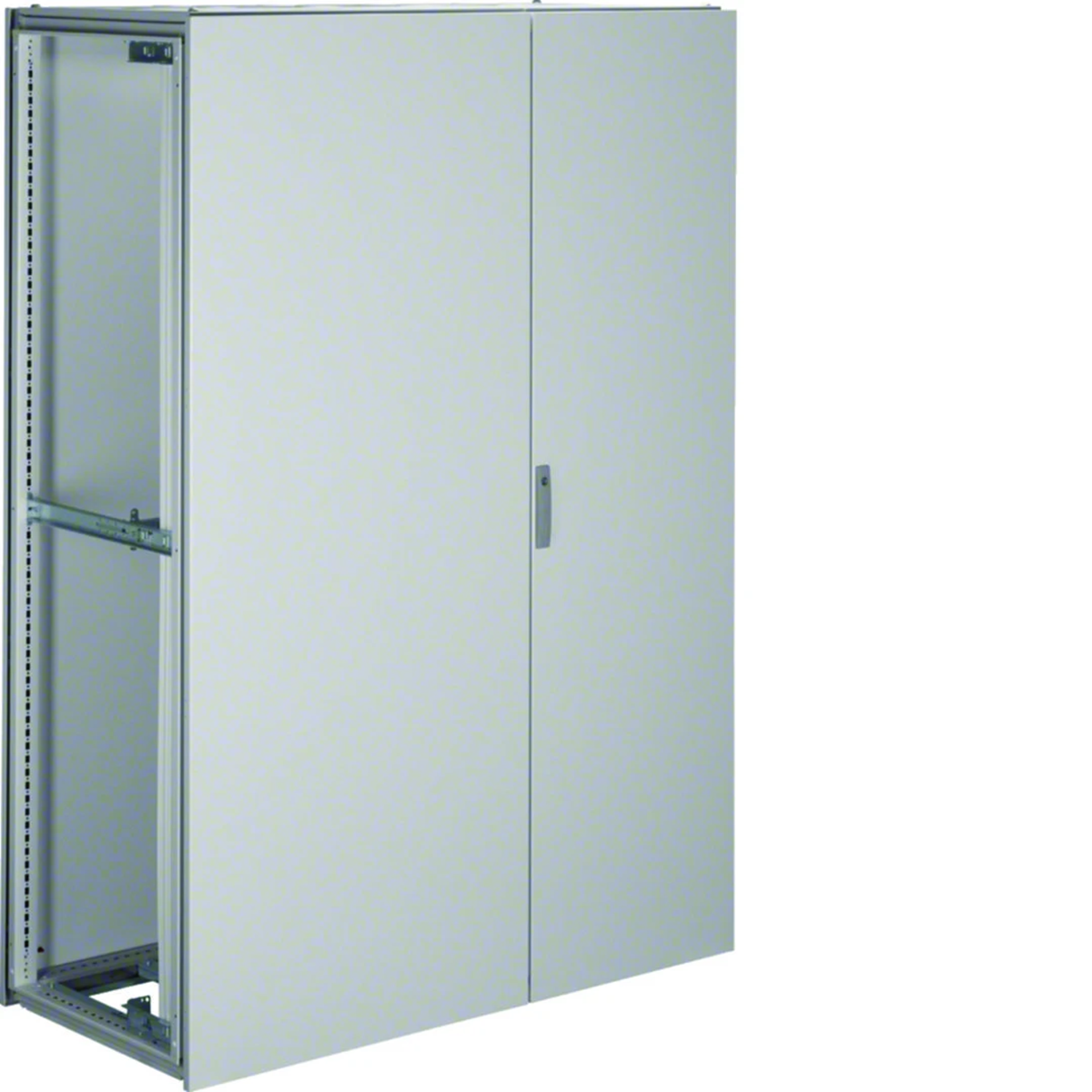

UNIVERS Series floor standing enclosure IP54/I 1900x1350x600 5-pole

Clicca sulla foto per ingrandire

Produttore: HAGER

Depth [mm]: 600

Thickness [mm]: 1.5

Number of doors: 2

Vedi la descrizione completa

Spedizione su pallet

Prezzo:

2916,27 €

gross / pezzi

(inclusa IVA 23%)

Consegna in 3 ore

fino a 10 settimane (giorni lavorativi)

Raccolta in 1h

Quantità pezzi

(multiplo:

)

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

Five-pole serial floor-standing enclosurewith plain door, univers N series:

type of lock: double locks 3mm,
assembly: free-standing or wall-mounted installations.

Series characteristics:

Cabinet systems are characterized by built-in functionality, not only as switchboards distribution cabinets (main power supply), but also as metering cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Dati tecnici

Depth [mm]

600
Number of doors

2
Protection class

AND
Housing material

Steel plate
Level of security

IP54
Height [mm]

1900
Number of sections

5
Number of cable entries

10
PKWIU

27.12.40.0

Thickness [mm]

1.5
Number of locks

1
Material

Galvanized steel sheet
Family

UNIVERS
Width [mm]

1350
Surface finish

Powder coated
Number of rows for cameras

60
Lock type

3mm double closures

Altri dati tecnici

Mounting method

Floor installation
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

1600 A
Width

1350 mm
Built-in depth

600 mm
Material plate thickness cabinet

1.5 mm
Colour

Grey
Number of modules

720
Width in number of modular spacings

60
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

I
Circuit integrity

None

Type of covering

Door
Type of door

Double
With lock

Yes
Height

1900 mm
Depth

600 mm
Inner depth

600 mm
Material plate thickness door/cover

1.5 mm
RAL-number

7035
Number of rows

60
Number of openings for flange plates

10
Number of conduit inlets

10
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP54
Impact strength

IK10

Dettagli del produttore

Produttore

Hager Electro GmbH & Co KG
Indirizzo

DE 66440 Blieskastel Zum Gunterstal Niemcy
Email

wsparcie.klienta@hager.com

Imballaggio sfuso

Una specie di pacchetto	Karton	Paleta
Quantità	1 pezzi	1 pezzi
Peso (kg)	154,000	154,000
Larghezza (m)	0,360	0,800
Lunghezza (m)	1,930	2,100
Profondità (m)	1,380	1,400
