UNIVERS Series floor standing enclosure IP54/I 1900x1350x400 5-field transparent door FG25LD

Name: UNIVERS Series floor standing enclosure IP54/I 1900x1350x400 5-field transparent door
Brand: HAGER
SKU: RMS035HAGE
Price: 13782.20 PLN
Availability: BackOrder

Índice local:

RMS035HAGE

Número de catálogo:

FG25LD

Código EAN:

3250612794706

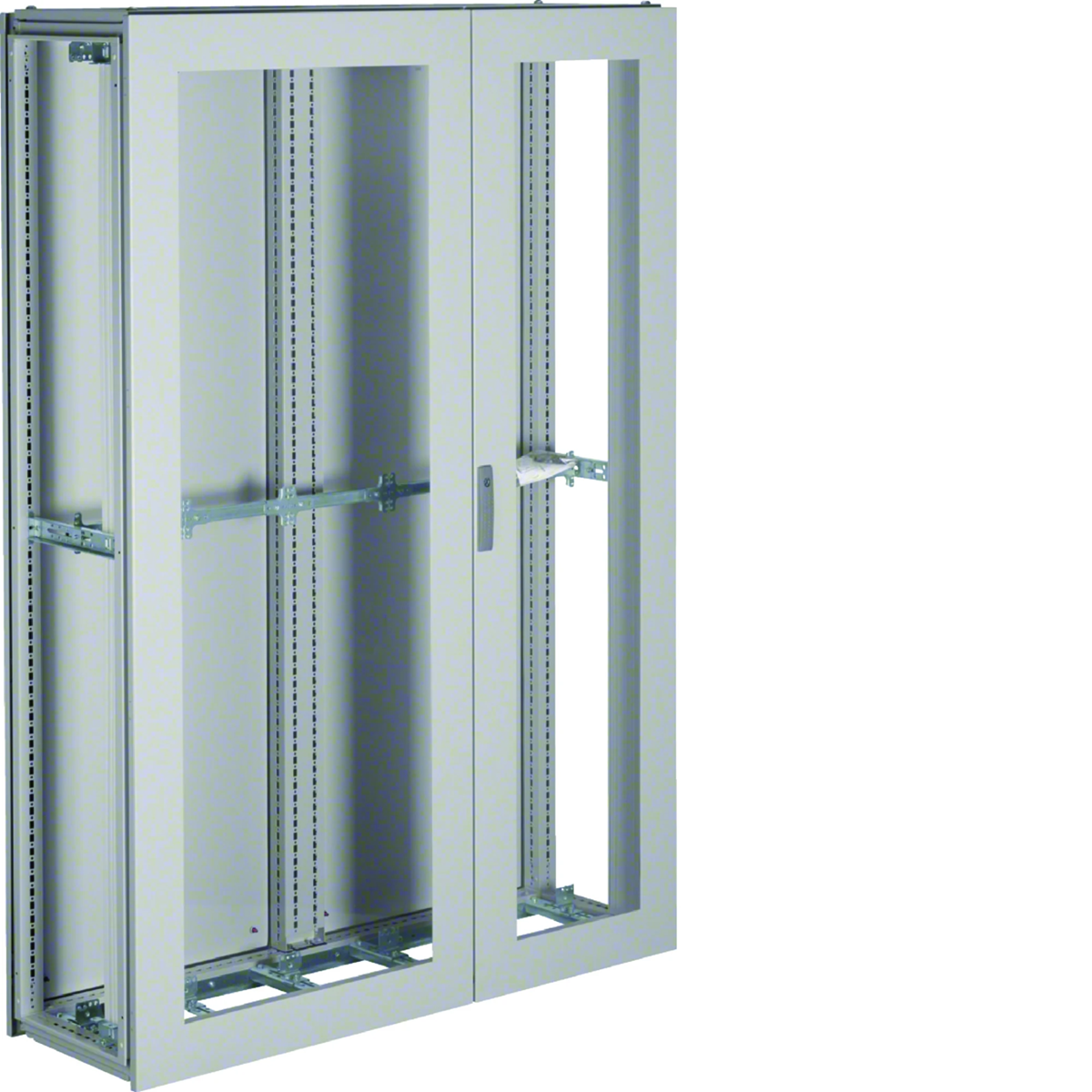

UNIVERS Series floor standing enclosure IP54/I 1900x1350x400 5-field transparent door

Haga clic en la foto para ampliar

Fabricante: HAGER

Depth [mm]: 400

Thickness [mm]: 2

Number of doors: 2

Ver descripción completa

Envío en palé

Precio:

13 782,20 zł

gross / uds.

(IVA incluido 23%)

hasta 10 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

Five-pole serial floor-standing enclosurewith transparent door, univers N series:

type of lock: double locks 3mm,
assembly: free-standing or wall-mounted installations.

Series characteristics:

Cabinet systems are characterized by built-in functionality, not only as switchboards distribution cabinets (main power supply), but also as metering cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Datos técnicos

Depth [mm]

400
Number of doors

2
Protection class

AND
Housing material

Steel plate
Level of security

IP54
Height [mm]

1900
Number of sections

5
Number of cable entries

10
PKWIU

27.12.40.0

Thickness [mm]

2
Number of locks

1
Material

Galvanized steel sheet
Family

UNIVERS
Width [mm]

1350
Surface finish

Powder coated
Number of rows for cameras

60
Lock type

3mm double closures

Otros datos técnicos

Mounting method

Floor installation
Cover model

Closed
Transparent cover/door

Yes
Nominal current (In)

1600 A
Width

1350 mm
Built-in depth

400 mm
Material plate thickness cabinet

2 mm
Colour

Grey
Number of modules

720
Width in number of modular spacings

60
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

I
Circuit integrity

None

Type of covering

Door
Type of door

Double
With lock

Yes
Height

1900 mm
Depth

400 mm
Inner depth

400 mm
Material plate thickness door/cover

2 mm
RAL-number

7035
Number of rows

60
Number of openings for flange plates

10
Number of conduit inlets

10
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP54
Impact strength

IK10
Cover with overpressure release

No

Detalles del fabricante

Fabricante

Hager Electro GmbH & Co KG
Dirección

DE 66440 Blieskastel Zum Gunterstal Niemcy
Email

wsparcie.klienta@hager.com

Empaquetado a granel

una especie de paquete	Karton	Paleta	Karton	Paleta
Cantidad	1 uds.	1 uds.	1 uds.	1 uds.
Peso (kg)	133,000	158,000	133,000	158,000
Ancho (m)	1,360	0,800	1,360	0,800
Longitud (m)	1,930	2,060	1,930	2,060
Profundidad (m)	0,410	1,400	0,410	1,400
