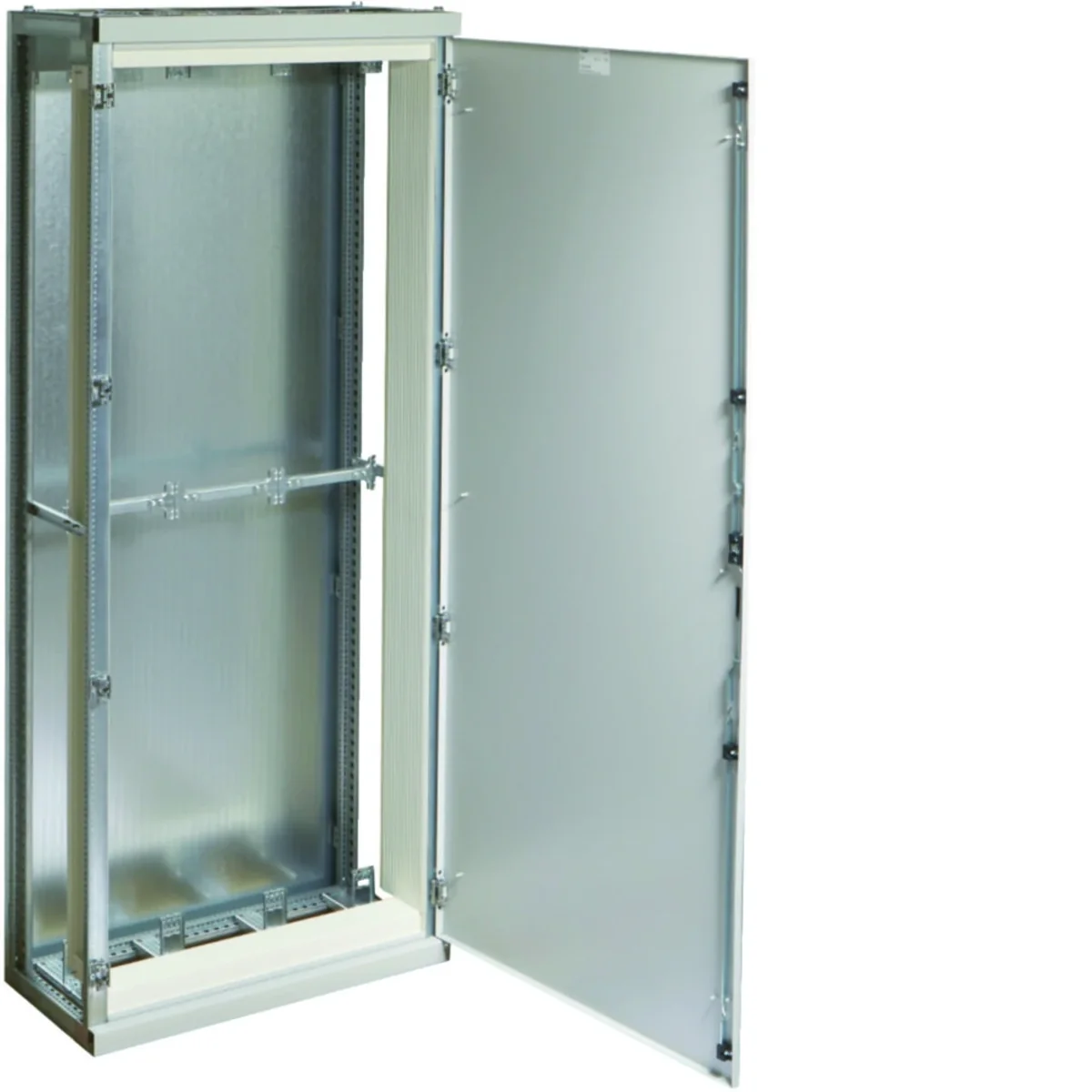

UNIVERS Series floor standing enclosure IP41 2000x850x400 3-pole steel FG23WE

local index:
RMS081HAGE
Catalog No:
FG23WE
EAN code:
7611919291729
Manufacturer: HAGER
Depth [mm]: 400
Thickness [mm]: 2
Number of doors: 1
Shipment on a pallet
Price:
1172,05 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Three-pole serial floor-standing enclosurewith solid door, univers N HC series:

  • type of lock: double locks 3mm,
  • assembly: free-standing or wall-mounted installations.

Series characteristics:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as metering cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

  • Depth [mm]
    400
  • Number of doors
    1
  • Protection class
    AND
  • Housing material
    Steel plate
  • Level of security
    IP41
  • Height [mm]
    2000
  • Number of rows for cameras
    12
  • Lock type
    3mm double closures
  • Thickness [mm]
    2
  • Number of locks
    1
  • Material
    steel
  • Family
    UNIVERS
  • Width [mm]
    850
  • Surface finish
    Powder coated
  • Number of cable entries
    6
  • PKWIU
    27.12.40.0

Other technical data

  • Mounting method
    Floor installation
  • Cover model
    With notch
  • Transparent cover/door
    No
  • Nominal current (In)
    1600 A
  • Width
    850 mm
  • Inner depth
    396 mm
  • Material plate thickness door/cover
    2 mm
  • RAL-number
    7035
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Degree of protection (IP)
    IP41
  • Impact strength
    IK10
  • Type of covering
    Door
  • Type of door
    Single
  • With lock
    Yes
  • Height
    2000 mm
  • Depth
    400 mm
  • Material plate thickness cabinet
    2 mm
  • Colour
    Grey
  • Number of openings for flange plates
    6
  • Number of conduit inlets
    6
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Protection class
    I
  • Circuit integrity
    None

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 1 pcs.
Weight (kg) 84,600 84,700 109,700
Width (m) 0,410 0,400 0,800
Length (m) 2,010 2,000 2,015
Depth (m) 0,845 0,850 1,200
