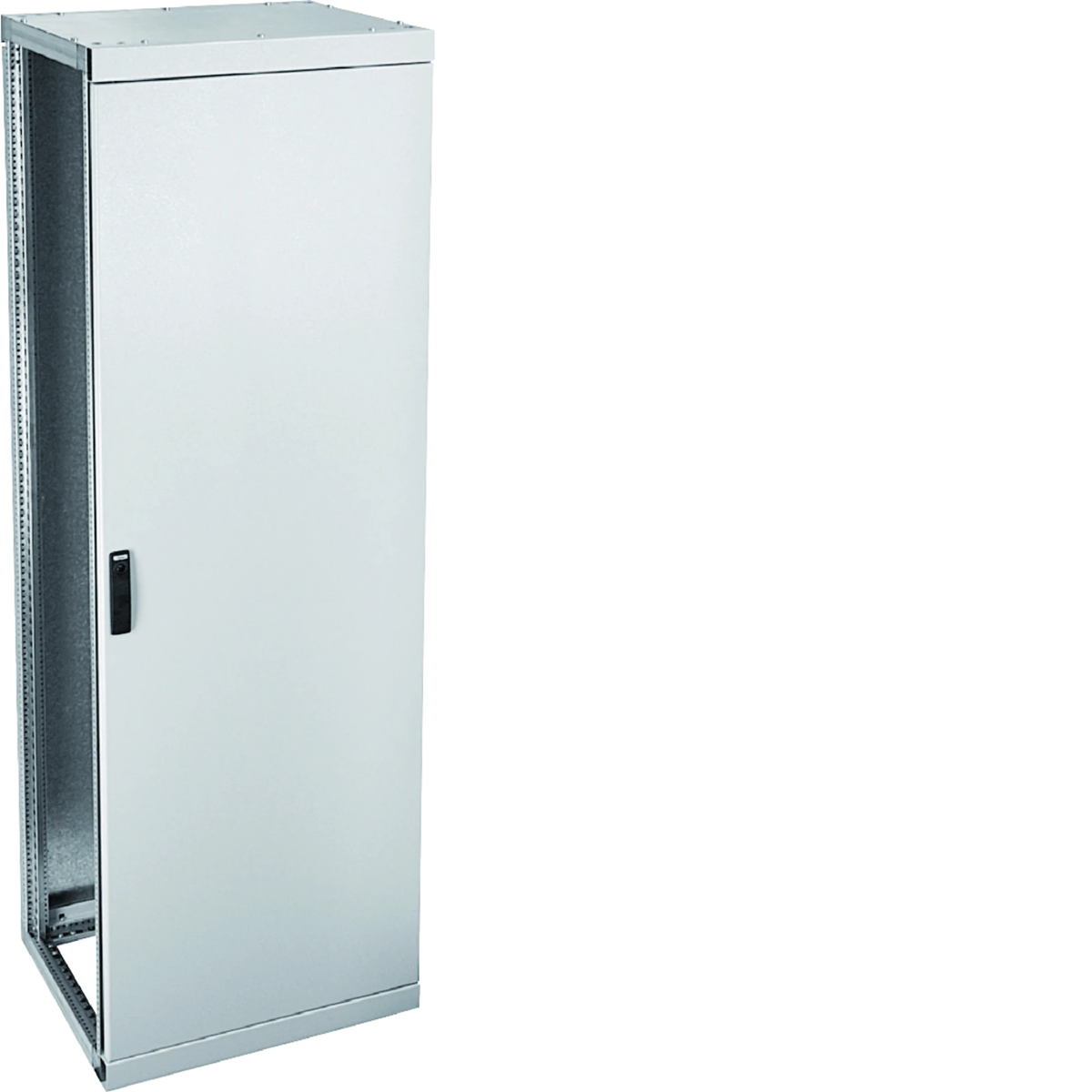

UNIVERS Series floor standing enclosure IP41 2000x600x400mm 2-pole FG22WE

local index:
RMS017HAGE
Catalog No:
FG22WE
EAN code:
7611919291712
Manufacturer: HAGER
Depth [mm]: 400
Level of security: IP41
Width [mm]: 600
Shipment on a pallet
Price:
1053,91 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

A row-mounted enclosure with a solid door

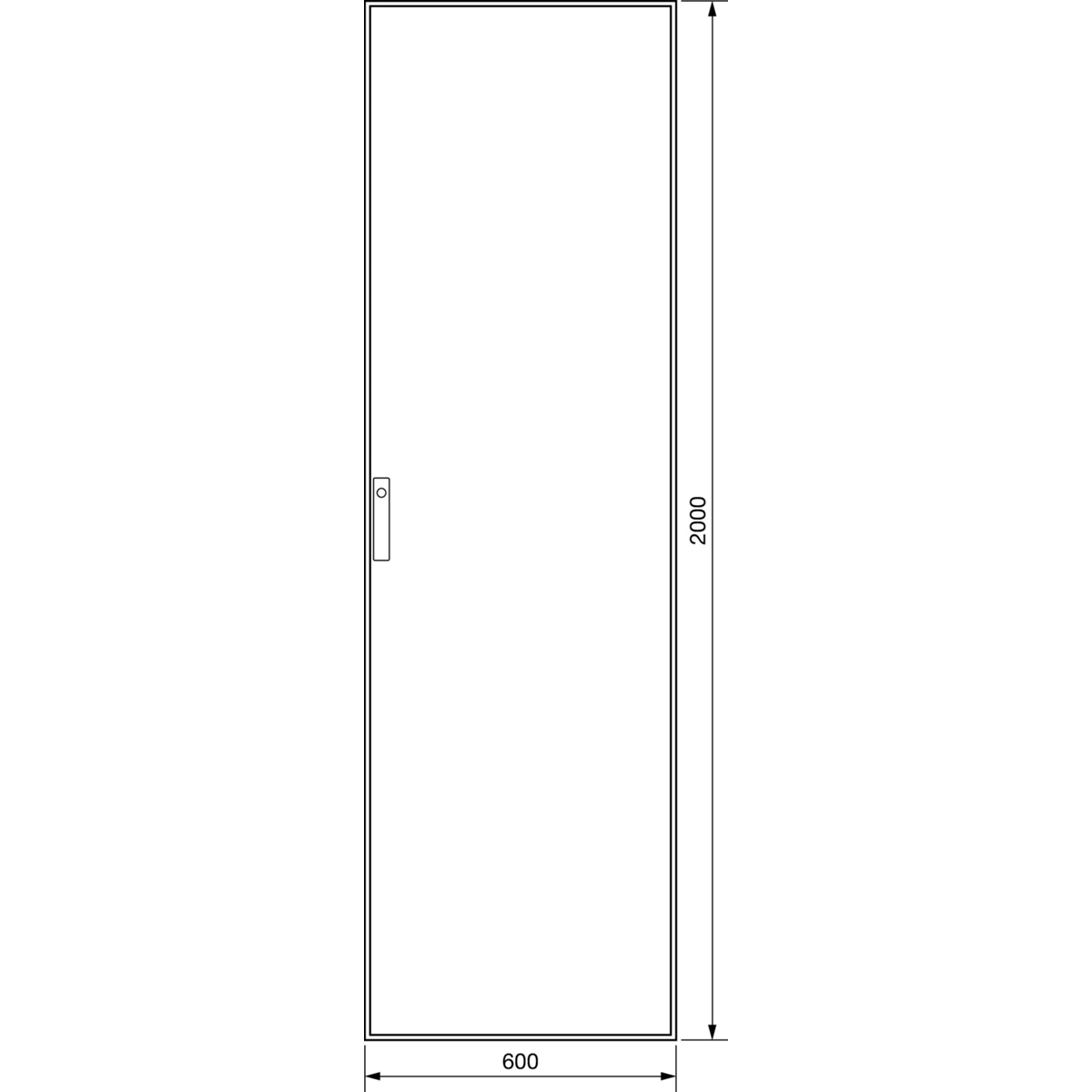

Technical data

  • Depth [mm]
    400
  • Width [mm]
    600
  • PKWIU
    27.12.40.0
  • Level of security
    IP41
  • Height [mm]
    2000

Other technical data

  • Mounting method
    Floor installation
  • Cover model
    With notch
  • Transparent cover/door
    No
  • Nominal current (In)
    1600 A
  • Width
    600 mm
  • Inner depth
    396 mm
  • Material plate thickness door/cover
    2 mm
  • RAL-number
    7035
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Degree of protection (IP)
    IP41
  • Impact strength
    IK10
  • Type of covering
    Door
  • Type of door
    Single
  • With lock
    Yes
  • Height
    2000 mm
  • Depth
    400 mm
  • Material plate thickness cabinet
    2 mm
  • Colour
    Grey
  • Number of openings for flange plates
    4
  • Number of conduit inlets
    6
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Protection class
    I
  • Circuit integrity
    None

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 1 pcs.
Weight (kg) 65,900 67,000 92,000
Width (m) 0,400 0,400 0,800
Length (m) 2,000 2,000 2,150
Depth (m) 0,600 0,600 1,200
