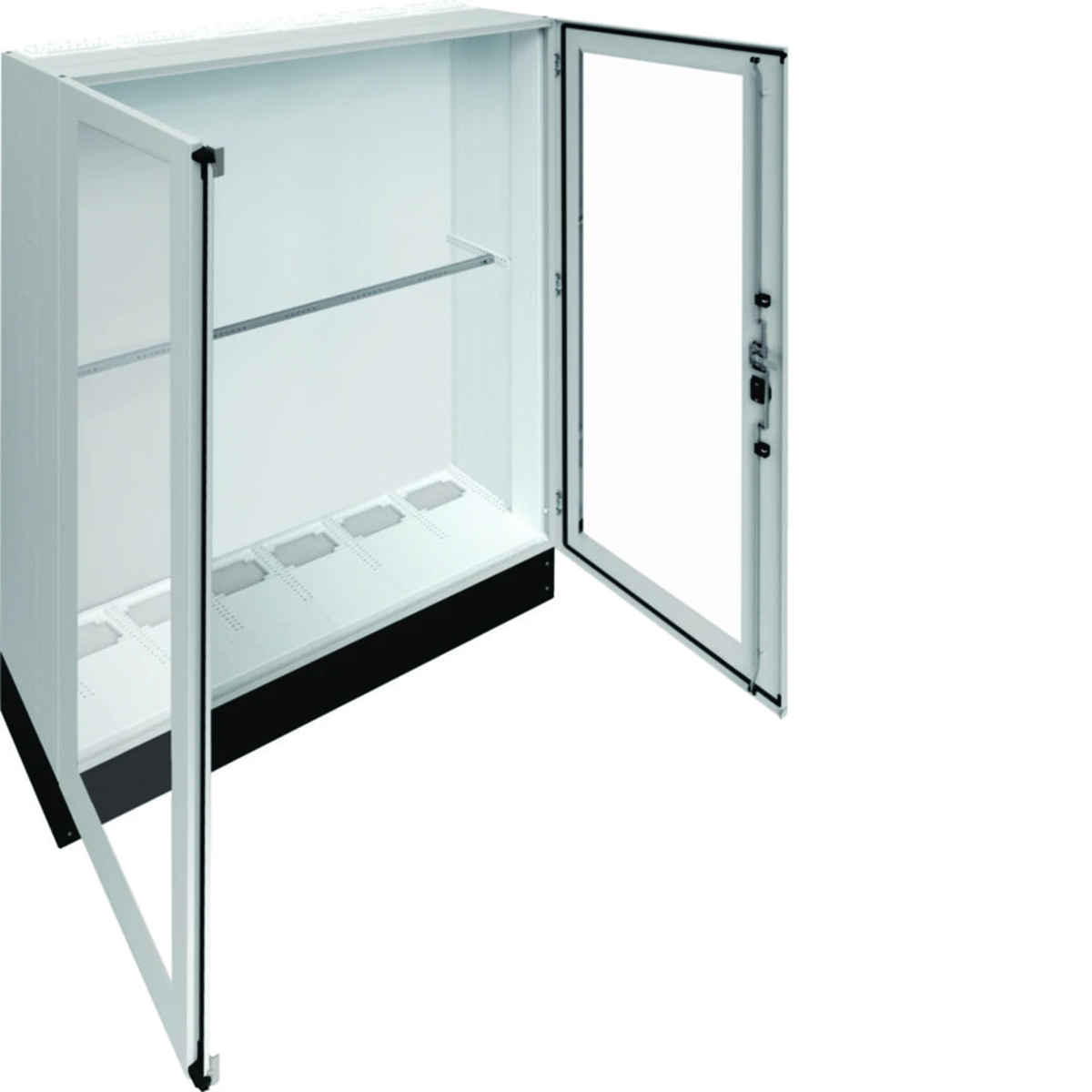

UNIVERS Floor-standing switchgear IP55/II 1550x1800x400 with 200mm base, transparent door FR26U2

local index:
RMS184HAGE
Catalog No:
FR26U2
EAN code:
3250610701430
Manufacturer: HAGER
Halogen free: NO
Depth [mm]: 400
Thickness [mm]: 1.5
Shipment on a pallet
Price:
1905,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Floor-mounted switchgear with a 200mm plinth with a transparent door, univers series. The type of lock is a rotary lever of a semi-cylindrical insert.

Characteristics of the series:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

  • Halogen free
    NO
  • Thickness [mm]
    1.5
  • Number of locks
    1
  • Color
    Gray
  • Installation
    Surface-mounted
  • Family
    UNIVERS
  • Width [mm]
    1550
  • Surface finish
    Powder coated
  • Number of rows for cameras
    12
  • PKWIU
    27.12.40.0
  • Depth [mm]
    400
  • Number of doors
    2
  • Protection class
    II
  • Housing material
    Steel plate
  • Surface
    Matt
  • Level of security
    IP55
  • Height [mm]
    2050
  • Accurate color
    light gray
  • Number of cable entries
    12

Other technical data

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    yes
  • Nominal current (In)
    800 A
  • Width
    1550 mm
  • Inner depth
    400 mm
  • Material plate thickness door/cover
    1.5 mm
  • RAL-number
    7035
  • Number of rows
    12
  • Number of openings for flange plates
    12
  • Number of conduit inlets
    12
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    no
  • Degree of protection (IP)
    IP55
  • Impact strength
    IK10
  • Type of covering
    Door
  • Type of door
    Double
  • With lock
    no
  • Height
    2050 mm
  • Depth
    400 mm
  • Material plate thickness cabinet
    1.5 mm
  • Colour
    Grey
  • Number of modules
    864
  • Width in number of modular spacings
    24
  • Extension possible
    yes
  • Housing material
    Steel
  • With mounting plate
    no
  • Suitable for lightning protection
    no
  • Protection class
    II
  • Circuit integrity
    None

Bulk packaging

A kind of package Pakiet Paleta
Quantity 1 pcs. 1 pcs.
Weight (kg) 124,672 150,672
Width (m) 0,410 0,800
Length (m) 2,050 2,200
Depth (m) 1,570 1,570
