UNIVERS Floor-standing switchgear IP55/II 1050x1800x400 with 200mm base, transparent door FR24U2

Name: UNIVERS Floor-standing switchgear IP55/II 1050x1800x400 with 200mm base, transparent door
Brand: HAGER
SKU: RMS154HAGE
Price: 6786.80 PLN
Availability: BackOrder

Indice locale:

RMS154HAGE

Numero di catalogo:

FR24U2

Codice EAN:

3250610701270

UNIVERS Floor-standing switchgear IP55/II 1050x1800x400 with 200mm base, transparent door

Clicca sulla foto per ingrandire

Produttore: HAGER

Halogen free: NO

Depth [mm]: 400

Thickness [mm]: 1.5

Vedi la descrizione completa

Spedizione su pallet

Prezzo:

6 786,80 zł

gross / pezzi

(inclusa IVA 23%)

fino a 10 settimane

Su ordinazione

Quantità pezzi

(multiplo:

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

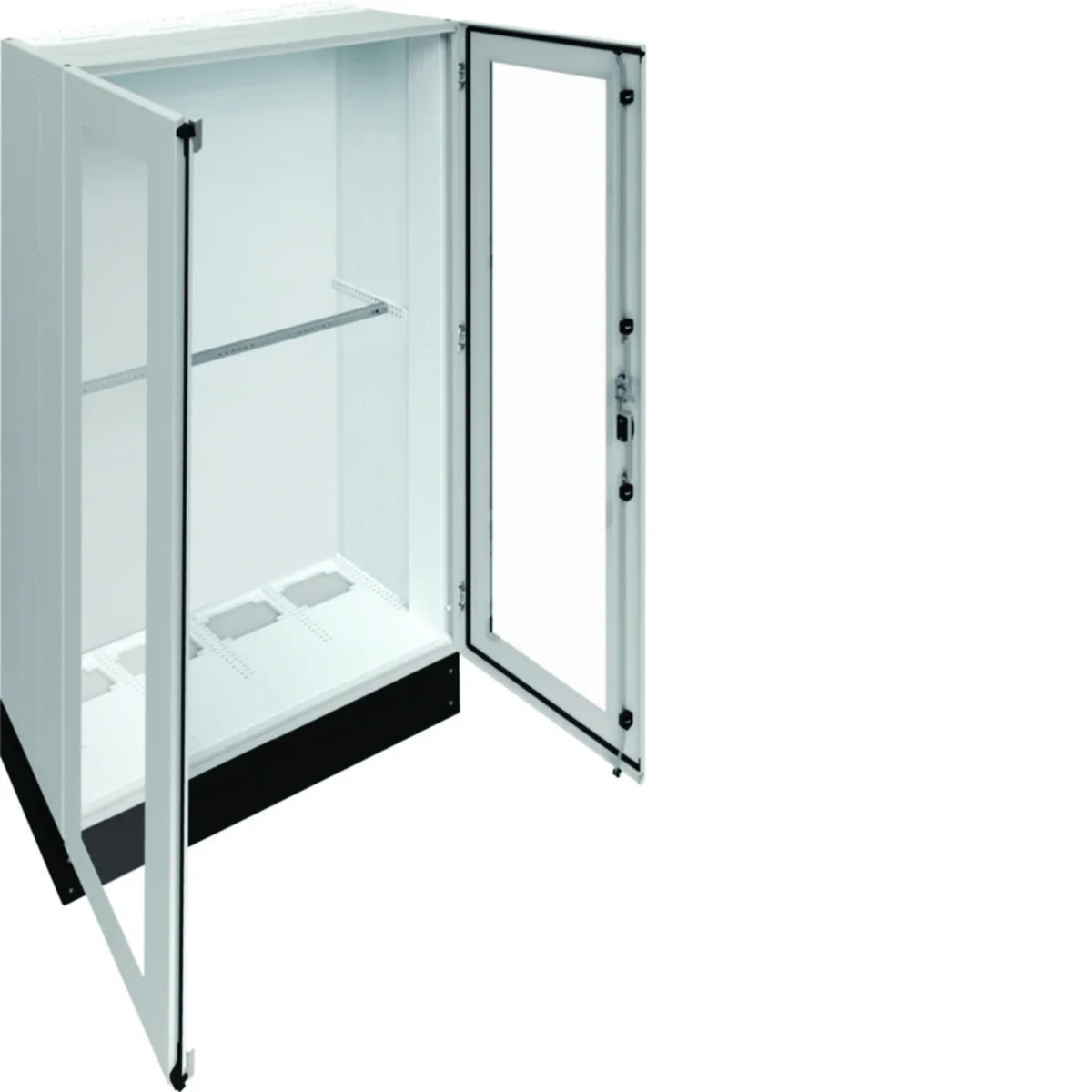

Floor-mounted switchgear with a 200mm plinth with a transparent door, univers series. The type of lock is a rotary lever of a semi-cylindrical insert.

Series characteristics:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Dati tecnici

Halogen free

NO
Thickness [mm]

1.5
Number of locks

1
Color

Gray
Installation

Surface-mounted
Family

UNIVERS
Width [mm]

1050
Surface finish

Powder coated
Number of rows for cameras

12
PKWIU

27.12.40.0

Depth [mm]

400
Number of doors

2
Protection class

II
Housing material

Steel plate
Surface

Matt
Level of security

IP55
Height [mm]

2050
Accurate color

light gray
Number of cable entries

8

Altri dati tecnici

Mounting method

Floor installation
Cover model

Closed
Transparent cover/door

Yes
Nominal current (In)

800 A
Width

1050 mm
Inner depth

400 mm
Material plate thickness door/cover

1.5 mm
RAL-number

7035
Number of rows

12
Number of openings for flange plates

8
Number of conduit inlets

8
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP55
Impact strength

IK10
Cover with overpressure release

No

Type of covering

Door
Type of door

Double
With lock

No
Height

2050 mm
Depth

400 mm
Material plate thickness cabinet

1.5 mm
Colour

Grey
Number of modules

576
Width in number of modular spacings

24
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

II
Circuit integrity

None

Dettagli del produttore

Produttore

Hager Electro GmbH & Co KG
Indirizzo

DE 66440 Blieskastel Zum Gunterstal Niemcy
Email

wsparcie.klienta@hager.com

Imballaggio sfuso

Una specie di pacchetto	Karton	Paleta	Karton	Paleta
Quantità	1 pezzi	2 pezzi	1 pezzi	2 pezzi
Peso (kg)	101,000	213,000	101,000	213,000
Larghezza (m)	0,410	0,820	0,410	0,820
Lunghezza (m)	2,060	2,210	2,060	2,210
Profondità (m)	1,070	1,200	1,070	1,200
