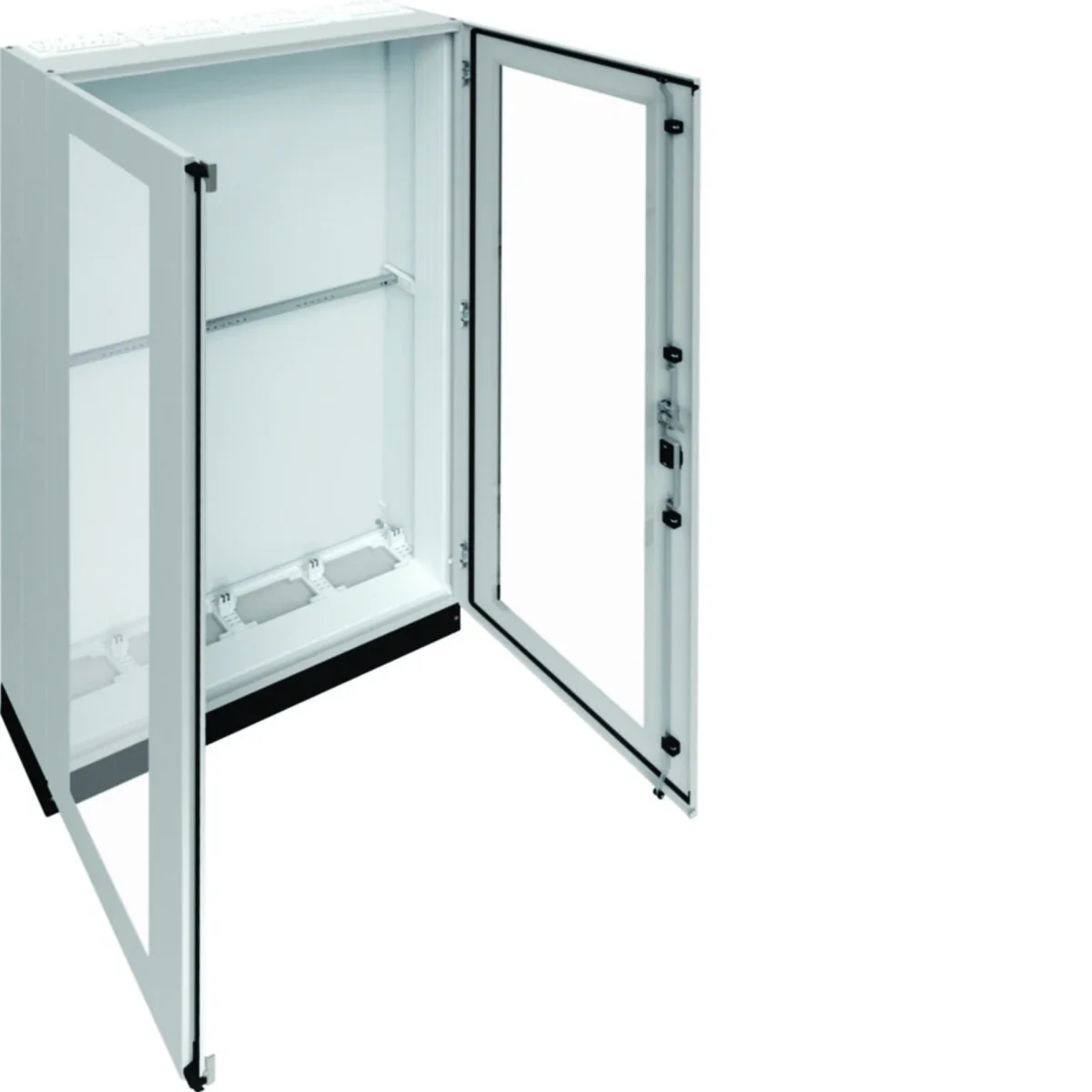

UNIVERS Floor-standing switchgear IP55/II 1050x1800x275 with 100mm base, transparent door FR24L1

local index:
RMS149HAGE
Catalog No:
FR24L1
EAN code:
3250616004160
Manufacturer: HAGER
Halogen free: NO
Depth [mm]: 275
Thickness [mm]: 1.5
Shipment on a pallet
Price:
1367,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Floor-mounted switchgear with a 100mm plinth with a transparent door, univers series. The type of lock is a rotary lever of a semi-cylindrical insert.

Series characteristics:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

  • Halogen free
    NO
  • Thickness [mm]
    1.5
  • Number of locks
    1
  • Color
    Gray
  • Installation
    Surface-mounted
  • Family
    UNIVERS
  • Width [mm]
    1050
  • Surface finish
    Powder coated
  • Number of rows for cameras
    12
  • PKWIU
    27.12.40.0
  • Depth [mm]
    275
  • Number of doors
    2
  • Protection class
    II
  • Housing material
    Steel plate
  • Surface
    Matt
  • Level of security
    IP55
  • Height [mm]
    1950
  • Accurate color
    light gray
  • Number of cable entries
    8

Other technical data

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    Yes
  • Nominal current (In)
    800 A
  • Width
    1050 mm
  • Inner depth
    275 mm
  • Material plate thickness door/cover
    1.5 mm
  • RAL-number
    7035
  • Number of rows
    12
  • Number of openings for flange plates
    8
  • Number of conduit inlets
    8
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP55
  • Impact strength
    IK10
  • Type of covering
    Door
  • Type of door
    Double
  • With lock
    No
  • Height
    1950 mm
  • Depth
    275 mm
  • Material plate thickness cabinet
    1.5 mm
  • Colour
    Grey
  • Number of modules
    576
  • Width in number of modular spacings
    24
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    II
  • Circuit integrity
    None

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 2 pcs.
Weight (kg) 89,514 96,750 200,000
Width (m) 1,050 0,300 0,800
Length (m) 1,950 1,960 2,300
Depth (m) 0,275 1,070 1,200
