UNIVERS Floor-standing switchgear IP55/I 1300x1800x400 with 200mm base, transparent door FR25V2

Name: UNIVERS Floor-standing switchgear IP55/I 1300x1800x400 with 200mm base, transparent door
Brand: HAGER
SKU: RMS171HAGE
Price: 7324.06 PLN
Availability: BackOrder

Indeks lokalny:

RMS171HAGE

Numer katalogowy:

FR25V2

Kod EAN:

3250610701362

UNIVERS Floor-standing switchgear IP55/I 1300x1800x400 with 200mm base, transparent door

Kliknij zdjęcie, aby powiększyć

Producent: HAGER

Halogen free: NO

Depth [mm]: 400

Thickness [mm]: 1.5

Zobacz cały opis

Przesyłka na palecie

Cena:

7 324,06 zł

gross / szt.

(w tym VAT 23%)

do 10 tygodni

Na zamówienie

Ilość szt.

(wielokrotność:

)

Dodaj do zapytania ofertowego

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

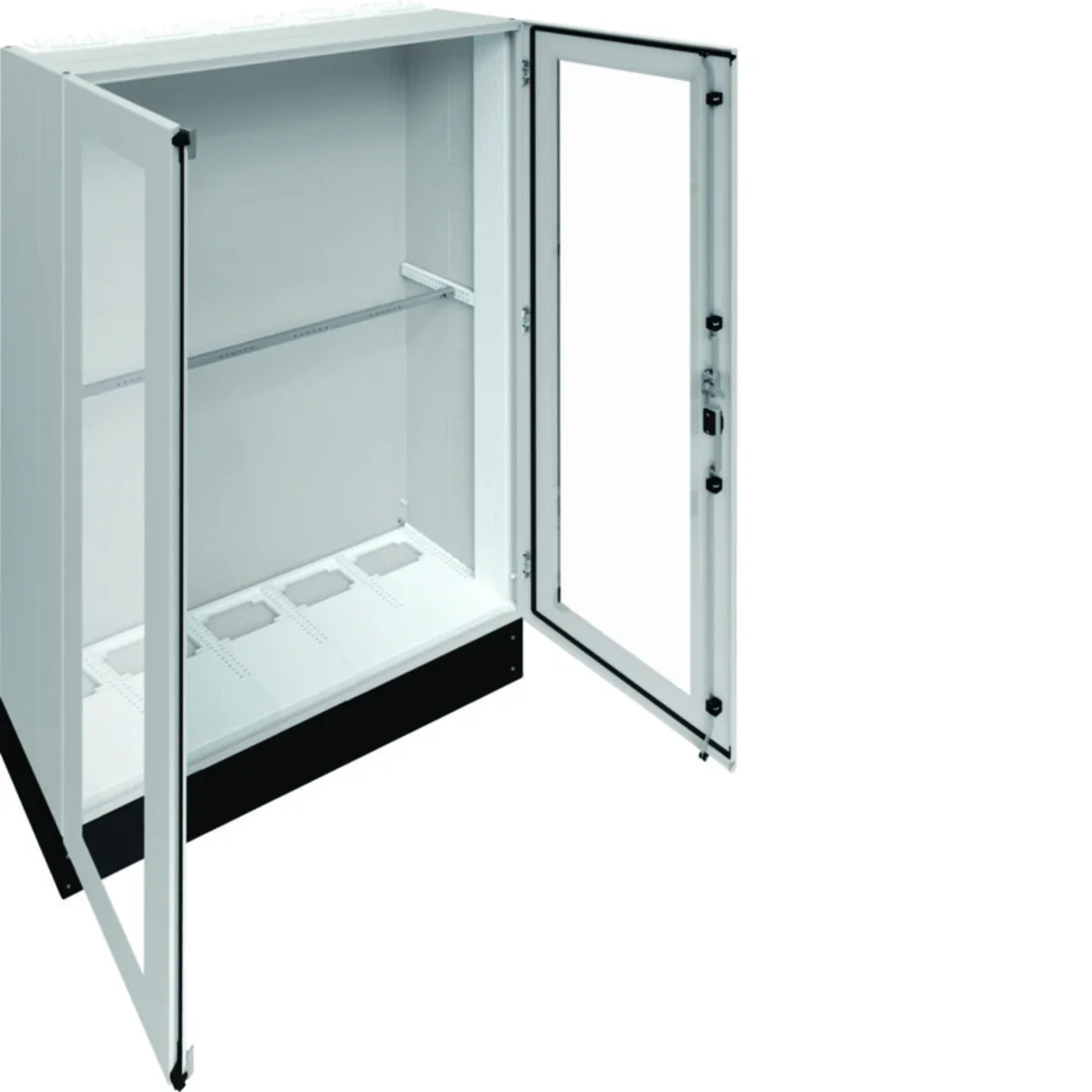

Floor-mounted switchgear with a 200mm plinth with a transparent door, univers series. The type of lock is a rotary lever of a semi-cylindrical insert.

Series characteristics:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Dane techniczne

Halogen free

NO
Thickness [mm]

1.5
Number of locks

1
Color

Gray
Installation

Surface-mounted
Family

UNIVERS
Width [mm]

1300
Surface finish

Powder coated
Number of rows for cameras

12
PKWIU

27.12.40.0

Depth [mm]

400
Number of doors

2
Protection class

AND
Housing material

Steel plate
Surface

Matt
Level of security

IP55
Height [mm]

2050
Accurate color

light gray
Number of cable entries

10

Pozostałe dane techniczne

Mounting method

Floor installation
Cover model

Closed
Transparent cover/door

Yes
Nominal current (In)

800 A
Width

1300 mm
Inner depth

400 mm
Material plate thickness door/cover

1.5 mm
RAL-number

7035
Number of rows

12
Number of openings for flange plates

10
Number of conduit inlets

10
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP55
Impact strength

IK10
Cover with overpressure release

No

Type of covering

Door
Type of door

Double
With lock

No
Height

2050 mm
Depth

400 mm
Material plate thickness cabinet

1.5 mm
Colour

Grey
Number of modules

720
Width in number of modular spacings

24
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

I
Circuit integrity

None

Dane producenta

Producent

Hager Electro GmbH & Co KG
Adres

DE 66440 Blieskastel Zum Gunterstal Niemcy
Email

wsparcie.klienta@hager.com

Opakowania zbiorcze

Rodzaj opakowania	Karton	Paleta	Karton	Paleta
Ilość	1 szt.	1 szt.	1 szt.	1 szt.
Waga (kg)	112,583	135,000	112,583	135,000
Szerokość (m)	0,410	0,600	0,410	0,600
Długość (m)	2,060	2,200	2,060	2,200
Głębokość (m)	0,130	1,600	0,130	1,600
