UNIVERS Floor-standing switchgear IP55/I 1300x1800x400 with 100mm base, transparent door FR25V1

Name: UNIVERS Floor-standing switchgear IP55/I 1300x1800x400 with 100mm base, transparent door
Brand: HAGER
SKU: RMS170HAGE
Price: 7000.74 PLN
Availability: BackOrder

Índice local:

RMS170HAGE

Número de catálogo:

FR25V1

Código EAN:

3250616005259

UNIVERS Floor-standing switchgear IP55/I 1300x1800x400 with 100mm base, transparent door

Haga clic en la foto para ampliar

Fabricante: HAGER

Halogen free: NO

Depth [mm]: 400

Thickness [mm]: 1.5

Ver descripción completa

Envío en palé

Precio:

7 000,74 zł

gross / uds.

(IVA incluido 23%)

hasta 10 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

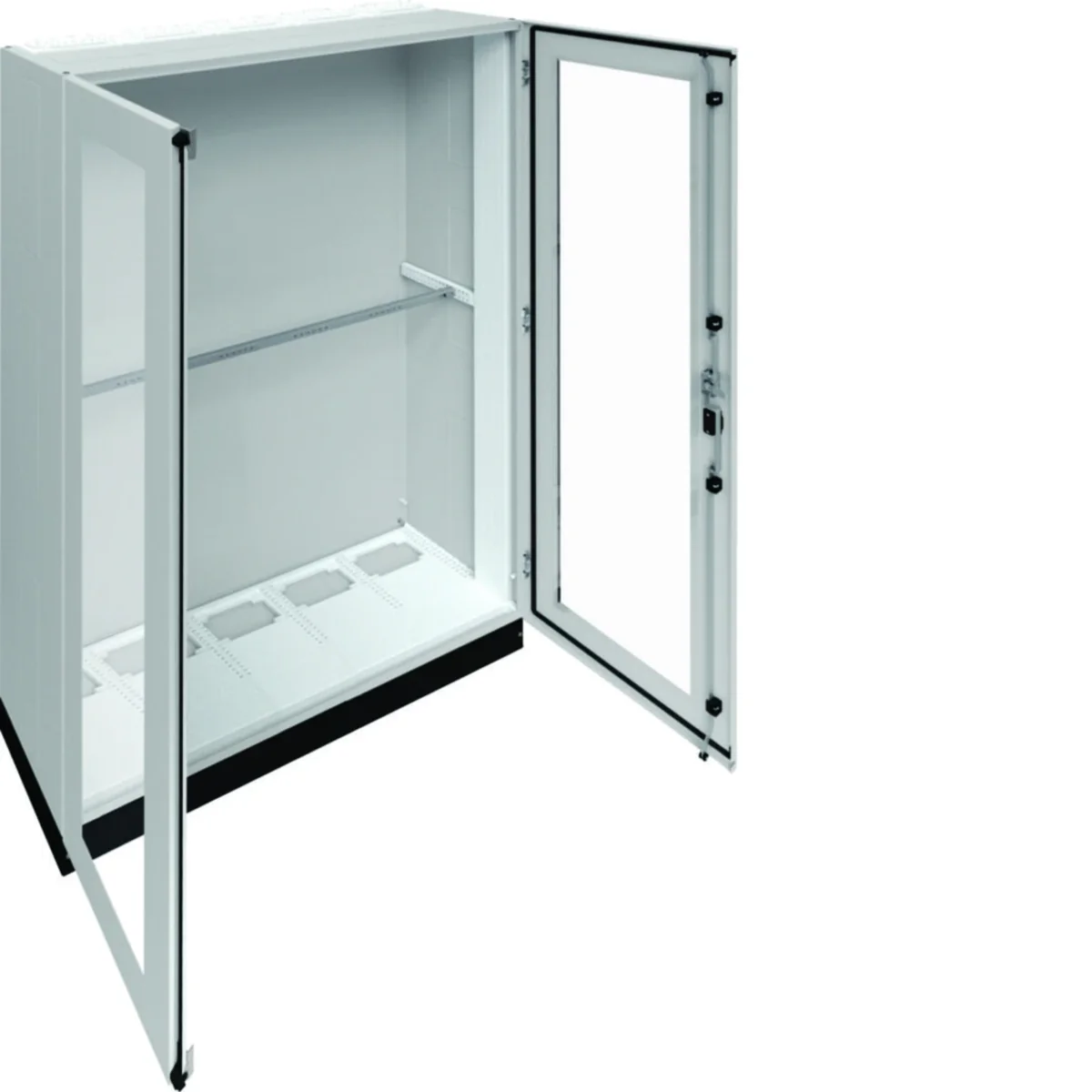

Floor-mounted switchgear with a 100mm plinth with a transparent door, univers series. The type of lock is a rotary lever of a semi-cylindrical insert.

Characteristics of the series:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Datos técnicos

Halogen free

NO
Thickness [mm]

1.5
Number of locks

1
Color

Gray
Installation

Surface-mounted
Family

UNIVERS
Width [mm]

1300
Surface finish

Powder coated
Number of rows for cameras

12
PKWIU

27.12.40.0

Depth [mm]

400
Number of doors

2
Protection class

AND
Housing material

Steel plate
Surface

Matt
Level of security

IP55
Height [mm]

1950
Accurate color

light gray
Number of cable entries

10

Otros datos técnicos

Mounting method

Floor installation
Cover model

Closed
Transparent cover/door

Yes
Nominal current (In)

800 A
Width

1300 mm
Inner depth

400 mm
Material plate thickness door/cover

1.5 mm
RAL-number

7035
Number of rows

12
Number of openings for flange plates

10
Number of conduit inlets

10
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP55
Impact strength

IK10
Cover with overpressure release

No

Type of covering

Door
Type of door

Double
With lock

No
Height

1950 mm
Depth

400 mm
Material plate thickness cabinet

1.5 mm
Colour

Grey
Number of modules

720
Width in number of modular spacings

24
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

I
Circuit integrity

None

Detalles del fabricante

Fabricante

Hager Electro GmbH & Co KG
Dirección

DE 66440 Blieskastel Zum Gunterstal Niemcy
Email

wsparcie.klienta@hager.com

Empaquetado a granel

una especie de paquete	Karton	Paleta	Karton	Paleta
Cantidad	1 uds.	1 uds.	1 uds.	1 uds.
Peso (kg)	109,000	131,000	109,000	131,000
Ancho (m)	0,430	0,800	0,430	0,800
Longitud (m)	2,000	2,060	2,000	2,060
Profundidad (m)	1,320	1,400	1,320	1,400
