UNIVERS Floor-standing switchgear IP55/I 1300x1800x275 with 200mm base, transparent door FR25K2

Name: UNIVERS Floor-standing switchgear IP55/I 1300x1800x275 with 200mm base, transparent door
Brand: HAGER
SKU: RMS163HAGE
Price: 1419.76 PLN

local index:

RMS163HAGE

Catalog No:

FR25K2

EAN code:

3250610701324

UNIVERS Floor-standing switchgear IP55/I 1300x1800x275 with 200mm base, transparent door

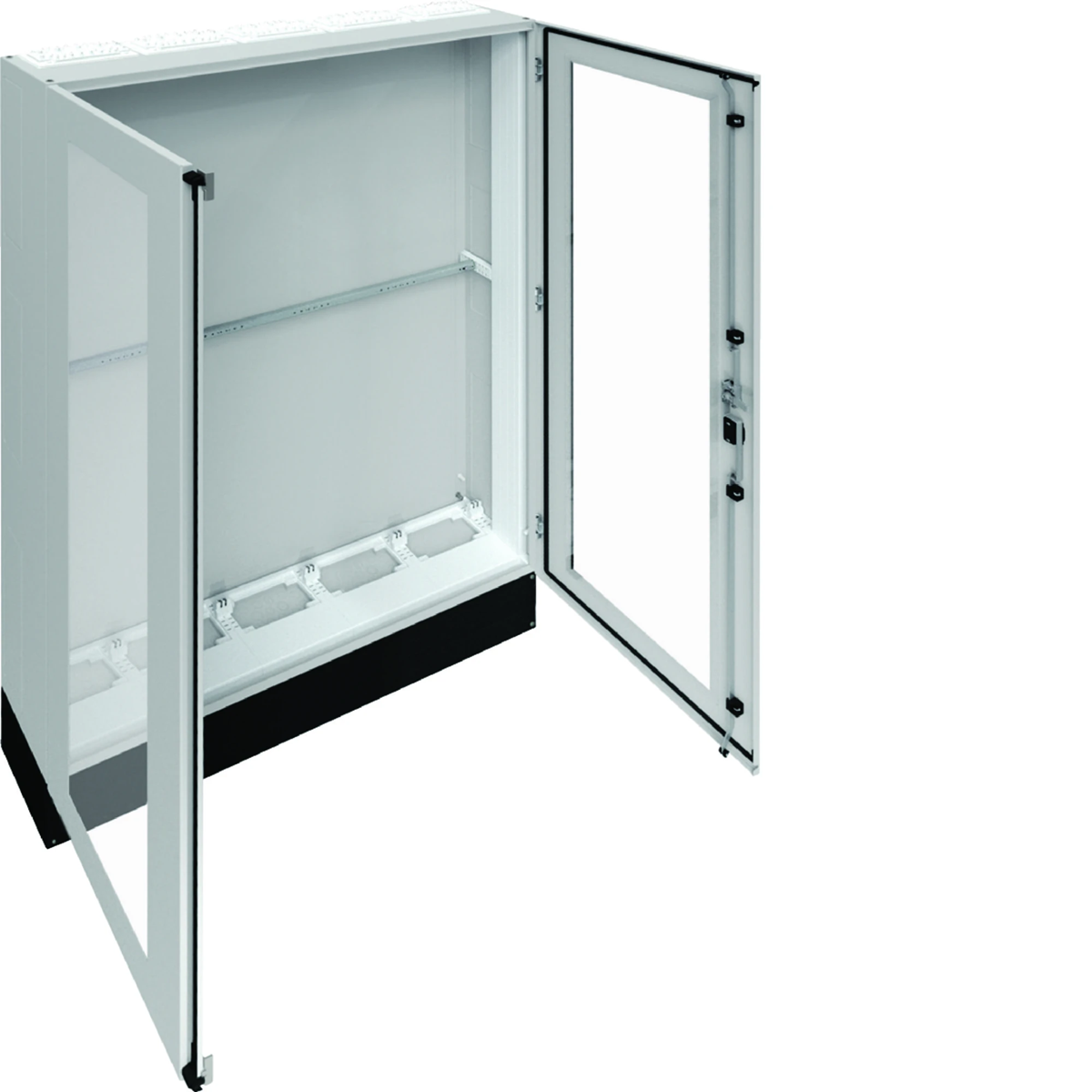

Click on the photo to enlarge

Manufacturer: HAGER

Halogen free: NO

Depth [mm]: 275

Thickness [mm]: 1.5

See full description

Shipment on a pallet

Price:

1419,76 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Floor-mounted switchgear with a 200mm plinth with a transparent door, univers series. The type of lock is a rotary lever of a semi-cylindrical insert.

Characteristics of the series:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

Halogen free

NO
Thickness [mm]

1.5
Number of locks

1
Color

Gray
Installation

Surface-mounted
Family

UNIVERS
Width [mm]

1300
Surface finish

Powder coated
Number of rows for cameras

12
PKWIU

27.12.40.0

Depth [mm]

275
Number of doors

2
Protection class

AND
Housing material

Steel plate
Surface

Matt
Level of security

IP55
Height [mm]

2050
Accurate color

light gray
Number of cable entries

10

Other technical data

Mounting method

Surface mounted
Cover model

Closed
Transparent cover/door

Yes
Nominal current (In)

800 A
Width

1300 mm
Inner depth

275 mm
Material plate thickness door/cover

1.5 mm
RAL-number

7035
Number of rows

12
Number of openings for flange plates

10
Number of conduit inlets

10
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP55
Impact strength

IK10

Type of covering

Door
Type of door

Double
With lock

No
Height

2050 mm
Depth

275 mm
Material plate thickness cabinet

1.5 mm
Colour

Grey
Number of modules

720
Width in number of modular spacings

24
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

I
Circuit integrity

None

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
Tax identification number

6460015532

Bulk packaging

A kind of package	Karton	Paleta
Quantity	1 pcs.	1 pcs.
Weight (kg)	106,611	129,611
Width (m)	0,300	0,800
Length (m)	2,070	2,200
Depth (m)	1,320	1,320
