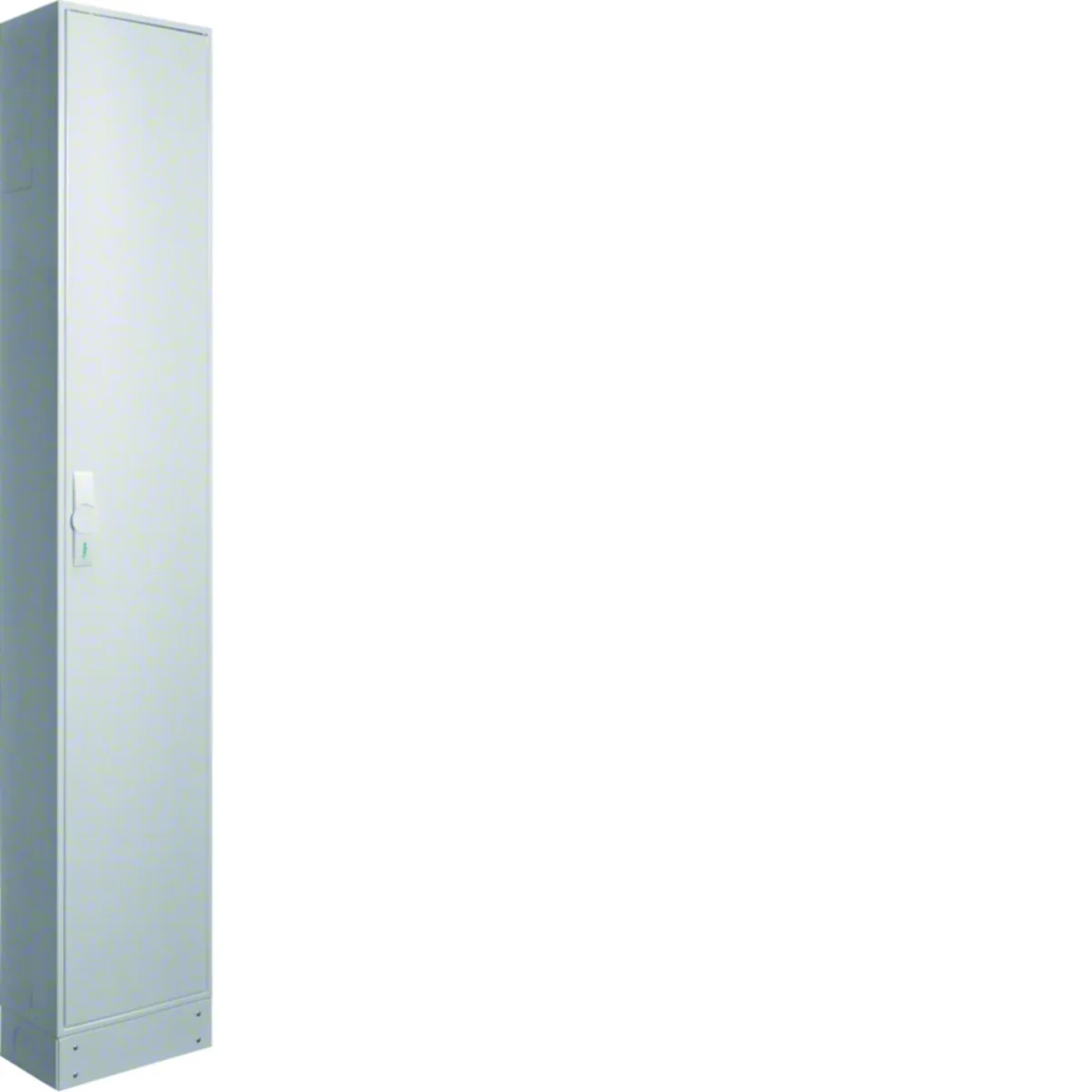

UNIVERS Floor-standing enclosure IP54/I 1950x300x205 FP21TW2
local index:
RMS044HAGE
Catalog No:
FP21TW2
EAN code:
3250612669011
Shipment on a pallet
Price:
827,73 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Freestanding housing from univers series:
- flush, surface or semi-recessed mounting.
The cabinet systems are functional, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, guaranteeing at the same time maximum safety.
Technical data
-
Depth [mm]205
-
Number of doors1
-
Protection classAND
-
Housing materialSteel plate
-
Level of securityIP54
-
Height [mm]1950
-
Number of rows for cameras12
-
PKWIU27.12.40.0
-
Thickness [mm]1
-
Number of locks1
-
ColorWhite
-
FamilyUNIVERS
-
Width [mm]250
-
Number of sections1
-
Number of cable entries2
Other technical data
-
Mounting methodFloor installation
-
Cover modelClosed
-
Transparent cover/doorNo
-
Nominal current (In)250 A
-
Width300 mm
-
Built-in depth205 mm
-
Material plate thickness cabinet1 mm
-
ColourWhite
-
Number of modules144
-
Width in number of modular spacings12
-
Extension possibleYes
-
Housing materialSteel
-
With mounting plateNo
-
Suitable for lightning protectionNo
-
Protection classI
-
Circuit integrityNone
-
Type of coveringCover
-
Type of doorSingle
-
With lockNo
-
Height1950 mm
-
Depth205 mm
-
Inner depth205 mm
-
Material plate thickness door/cover1 mm
-
RAL-number9010
-
Number of rows12
-
Number of openings for flange plates2
-
Number of conduit inlets2
-
Surface protectionPowder coating
-
Suitable for outdoor useNo
-
Degree of protection (IP)IP54
-
Impact strengthIK09
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 12 pcs. |
| Weight (kg) | 19,000 | 20,000 | 240,000 |
| Width (m) | 0,300 | 0,215 | 0,860 |
| Length (m) | 1,950 | 1,970 | 2,120 |
| Depth (m) | 0,205 | 0,320 | 1,200 |
