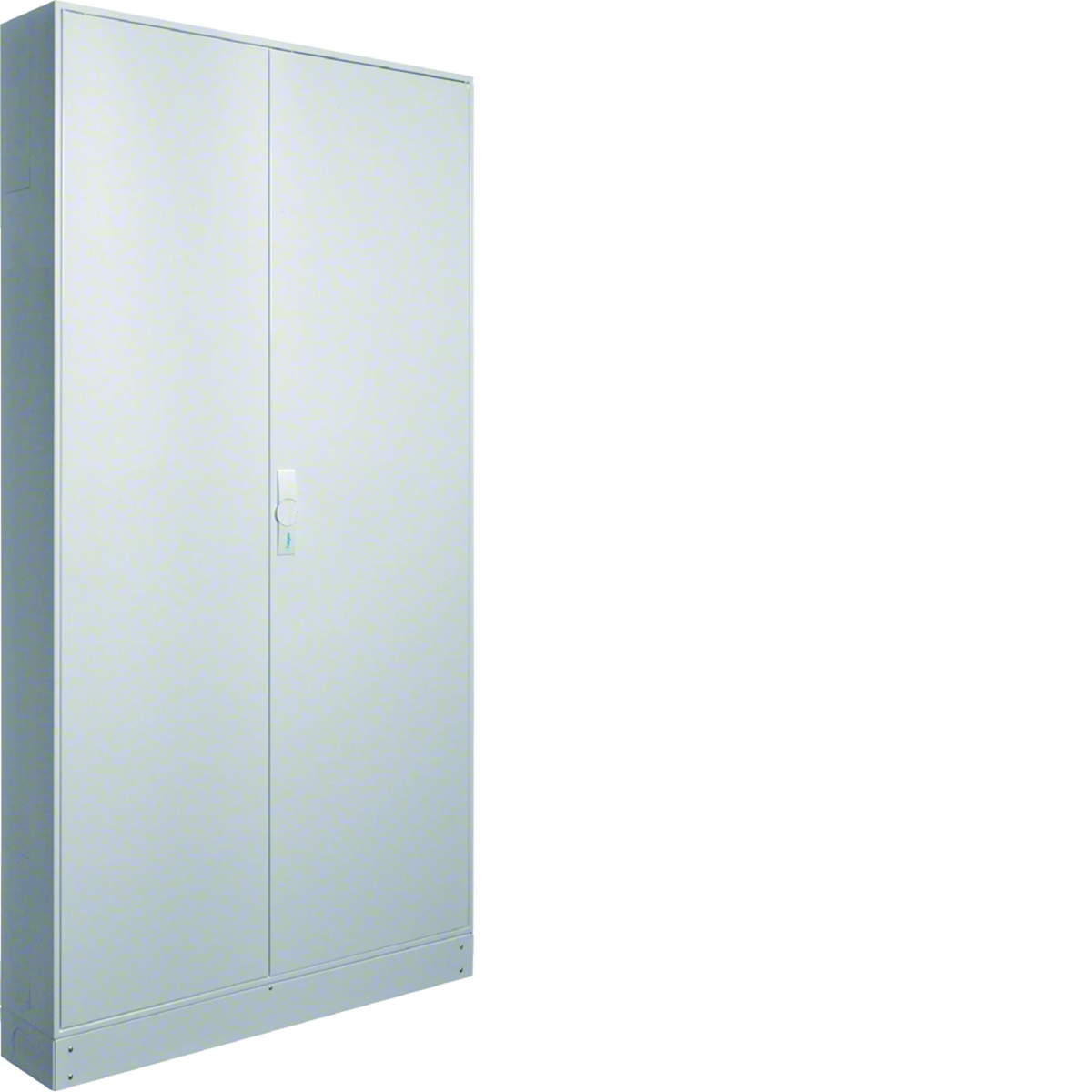

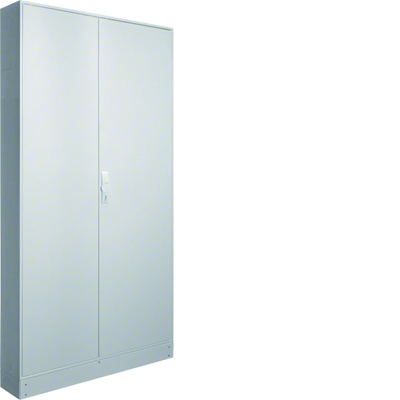

UNIVERS Floor-standing enclosure IP54/I 1950x1050x205 FP24TW2

Índice local:
RMS049HAGE
Número de catálogo:
FP24TW2
Código EAN:
3250612669073
Fabricante: HAGER
Depth [mm]: 205
Thickness [mm]: 1
Number of doors: 2
Envío en palé
Precio:
1412,96 €
gross / uds.
(IVA incluido 23%)
Entrega en 3h
hasta 10 semanas (días laborables)
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

Freestanding housing from the univers series:

  • flush, surface or semi-recessed mounting.
< p> Characteristics of the series:

The cabinet systems are functional, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, guaranteeing at the same time maximum safety.

Datos técnicos

  • Depth [mm]
    205
  • Number of doors
    2
  • Protection class
    AND
  • Housing material
    Steel plate
  • Level of security
    IP54
  • Height [mm]
    1950
  • Number of rows for cameras
    12
  • PKWIU
    27.12.40.0
  • Thickness [mm]
    1
  • Number of locks
    1
  • Color
    White
  • Family
    UNIVERS
  • Width [mm]
    1000
  • Number of sections
    4
  • Number of cable entries
    8

Otros datos técnicos

  • Mounting method
    Floor installation
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    400 A
  • Width
    1050 mm
  • Built-in depth
    205 mm
  • Material plate thickness cabinet
    1 mm
  • Colour
    White
  • Number of modules
    576
  • Width in number of modular spacings
    48
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    I
  • Circuit integrity
    None
  • Type of covering
    Cover
  • Type of door
    Double
  • With lock
    No
  • Height
    1950 mm
  • Depth
    205 mm
  • Inner depth
    205 mm
  • Material plate thickness door/cover
    1 mm
  • RAL-number
    9010
  • Number of rows
    12
  • Number of openings for flange plates
    8
  • Number of conduit inlets
    8
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP54
  • Impact strength
    IK09

Detalles del fabricante

Empaquetado a granel

una especie de paquete Karton Paleta
Cantidad 1 uds. 4 uds.
Peso (kg) 49,500 198,000
Ancho (m) 0,200 0,830
Longitud (m) 1,950 2,150
Profundidad (m) 1,050 1,200
