UNIVERS Floor-standing enclosure IP44/I 1950x300x205 FP21TN2

Name: UNIVERS Floor-standing enclosure IP44/I 1950x300x205
Brand: HAGER
SKU: RMS043HAGE
Price: 845.87 PLN

Indeks lokalny:

RMS043HAGE

Nr katalogowy:

FP21TN2

Kod EAN:

3250612668939

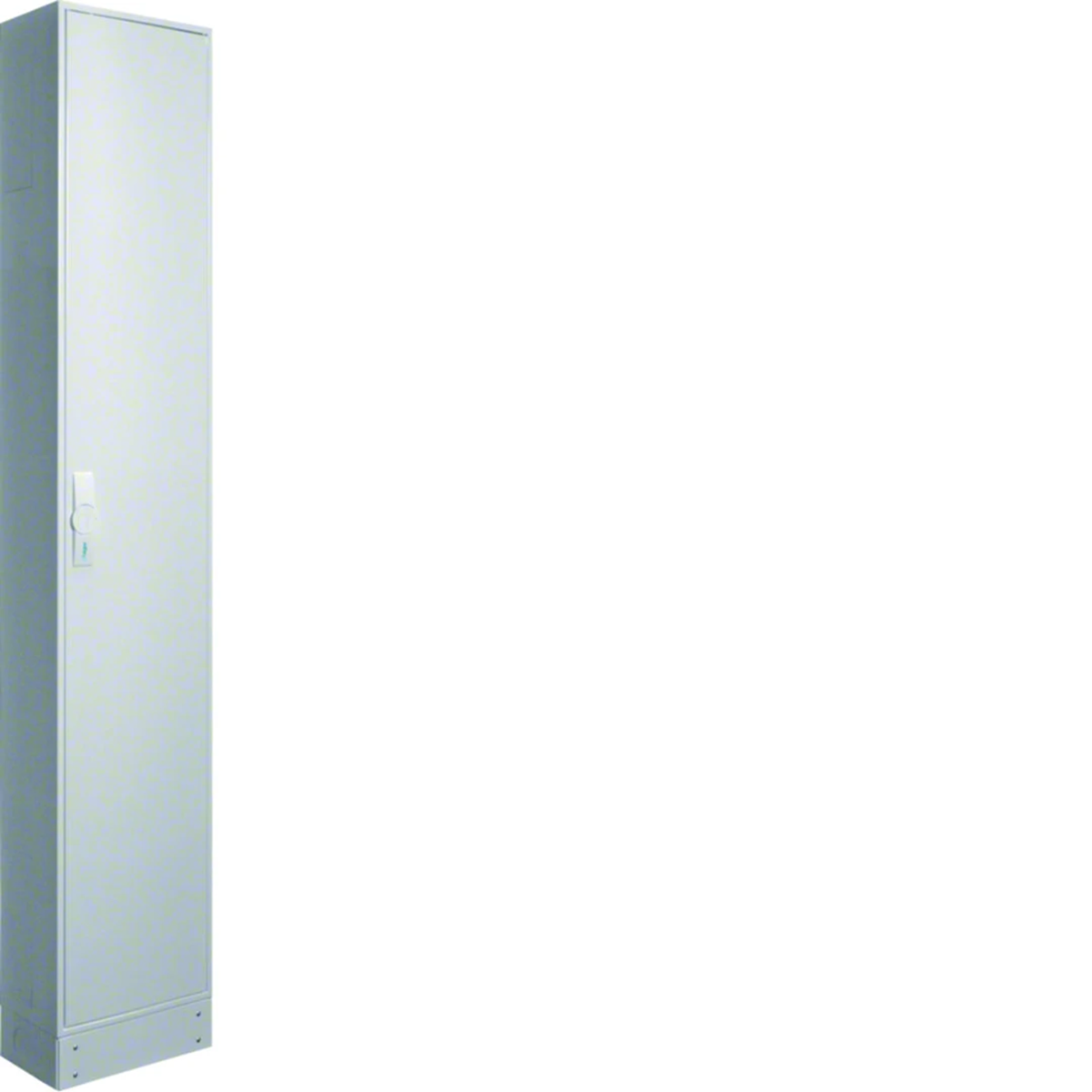

UNIVERS Floor-standing enclosure IP44/I 1950x300x205

Kliknij zdjęcie, aby powiększyć

Producent: HAGER

Depth [mm]: 205

Thickness [mm]: 1

Number of doors: 1

Zobacz cały opis

Przesyłka na palecie

Cena:

845,87 €

gross / szt.

(w tym VAT 23%)

Dostawa do 3h

do 10 tygodni (dni robocze)

Odbiór za 1h

Ilość szt.

(wielokrotność:

)

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

Free-standing enclosure from the univers series:

free-standing or wall-mounted installations,

< strong>Characteristics of the series:

Cabinet systems are functional, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum security.

Dane techniczne

Depth [mm]

205
Number of doors

1
Protection class

AND
Material

steel
Family

UNIVERS
Width [mm]

250
Surface finish

Powder coated
Number of rows for cameras

12
Lock type

T-Handle

Thickness [mm]

1
Number of locks

1
Color

White
Housing material

Steel plate
Level of security

IP44
Height [mm]

1950
Number of sections

1
Number of cable entries

2
PKWIU

27.12.40.0

Pozostałe dane techniczne

Mounting method

Floor installation
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

250 A
Width

300 mm
Built-in depth

205 mm
Material plate thickness cabinet

1 mm
Colour

White
Number of modules

144
Width in number of modular spacings

12
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

I
Circuit integrity

None

Type of covering

Cover
Type of door

Single
With lock

No
Height

1950 mm
Depth

205 mm
Inner depth

205 mm
Material plate thickness door/cover

1 mm
RAL-number

9010
Number of rows

12
Number of openings for flange plates

2
Number of conduit inlets

2
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP44
Impact strength

IK09

Dane producenta

Producent

HAGER POLO Sp. z o. o.
Adres

43-100 Tychy Fabryczna 10
NIP

6460015532

Opakowania zbiorcze

Rodzaj opakowania	Karton	Paleta
Ilość	1 szt.	12 szt.
Waga (kg)	20,000	265,000
Szerokość (m)	0,215	0,860
Długość (m)	1,970	2,120
Głębokość (m)	0,320	1,280
