UNIVERS Floor-standing distribution board IP55/II 1050x1800x275 with 100mm base FR24S1
local index:
RMS151HAGE
Catalog No:
FR24S1
EAN code:
3250616004177
Shipment on a pallet
Price:
1322,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

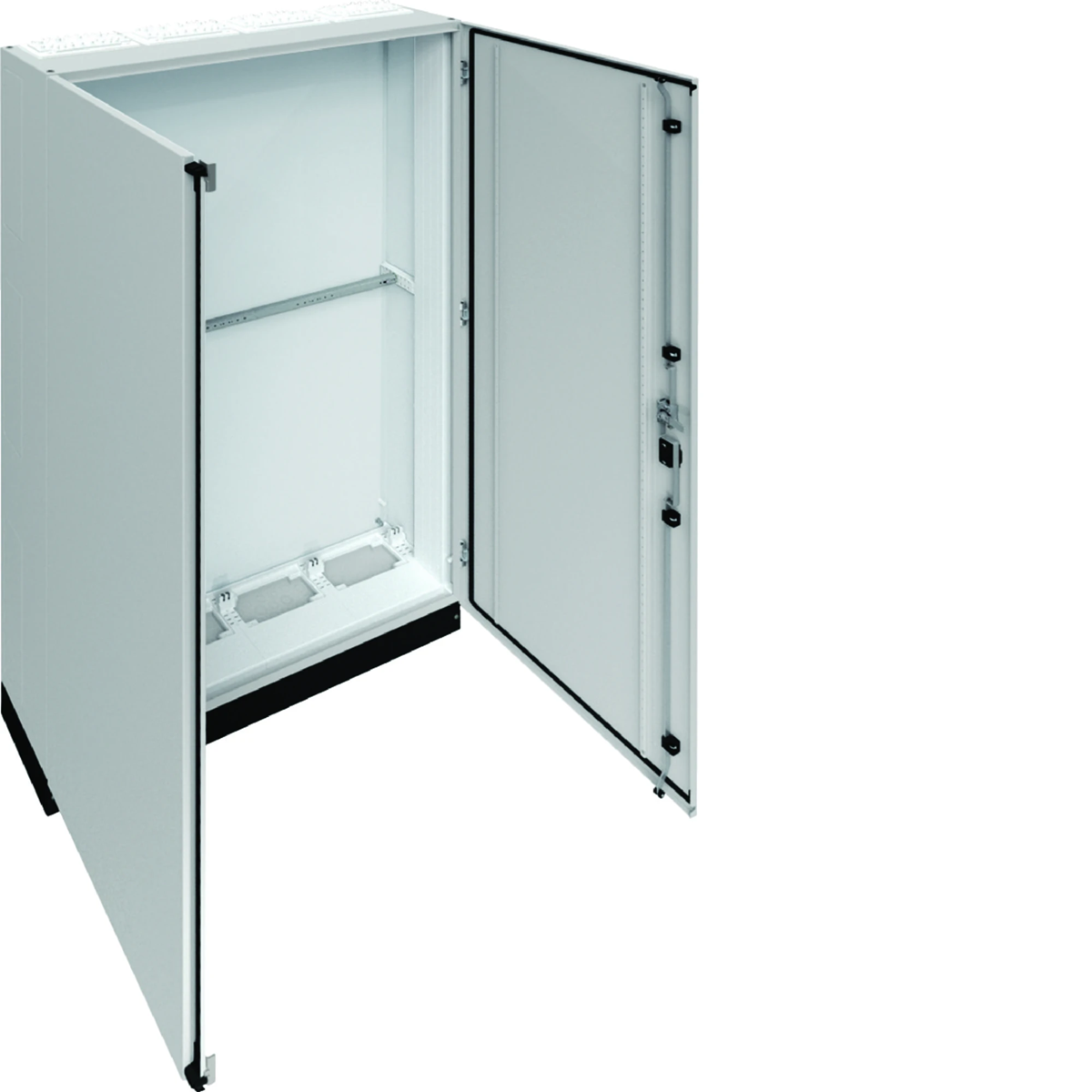

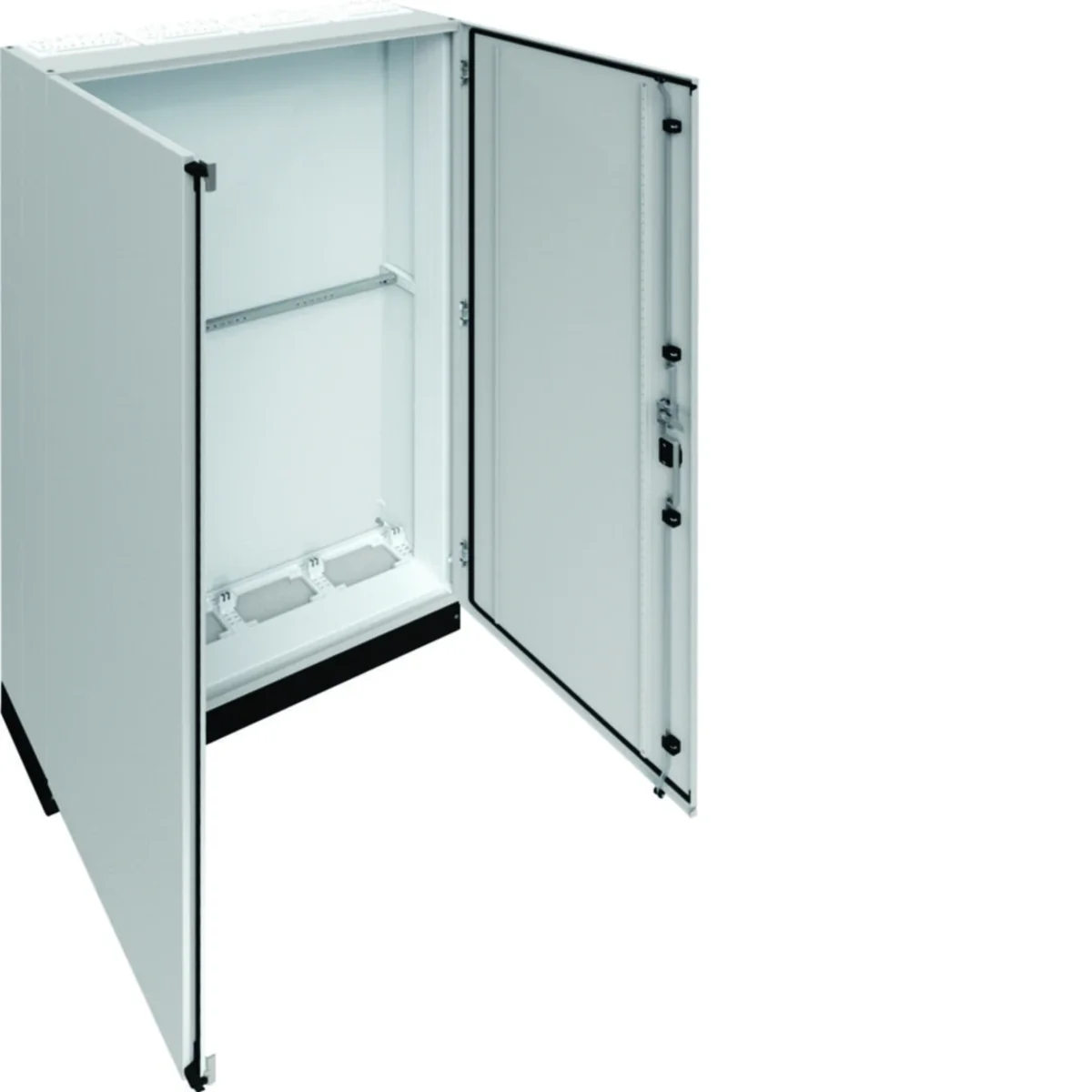

Floor-mounted switchgear with a 100mm plinth from the univers series. The type of lock is a rotary lever of a semi-cylindrical insert.
Characteristics of the series:
Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.
Technical data
-
Halogen freeNO
-
Thickness [mm]1.5
-
Number of locks1
-
ColorGray
-
InstallationSurface-mounted
-
FamilyUNIVERS
-
Width [mm]1050
-
Surface finishPowder coated
-
Number of rows for cameras12
-
PKWIU27.12.40.0
-
Depth [mm]275
-
Number of doors2
-
Protection classII
-
Housing materialSteel plate
-
SurfaceMatt
-
Level of securityIP55
-
Height [mm]1950
-
Accurate colorlight gray
-
Number of cable entries8
Other technical data
-
Mounting methodSurface mounted
-
Cover modelClosed
-
Transparent cover/doorNo
-
Nominal current (In)800 A
-
Width1050 mm
-
Inner depth275 mm
-
Material plate thickness door/cover1.5 mm
-
RAL-number7035
-
Number of rows12
-
Number of openings for flange plates8
-
Number of conduit inlets8
-
Surface protectionPowder coating
-
Suitable for outdoor useNo
-
Degree of protection (IP)IP55
-
Impact strengthIK10
-
Type of coveringDoor
-
Type of doorDouble
-
With lockNo
-
Height1950 mm
-
Depth275 mm
-
Material plate thickness cabinet1.5 mm
-
ColourGrey
-
Number of modules576
-
Width in number of modular spacings24
-
Extension possibleYes
-
Housing materialSteel
-
With mounting plateNo
-
Suitable for lightning protectionNo
-
Protection classII
-
Circuit integrityNone
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 2 pcs. |
| Weight (kg) | 86,000 | 100,000 | 225,000 |
| Width (m) | 0,300 | 0,300 | 0,800 |
| Length (m) | 1,977 | 1,977 | 2,122 |
| Depth (m) | 1,065 | 1,065 | 1,200 |
