UNIVERS Floor-standing distribution board IP55/I 300x1650x275 with 100mm base FR11E1

Name: UNIVERS Floor-standing distribution board IP55/I 300x1650x275 with 100mm base
Brand: HAGER
SKU: RMS084HAGE
Price: 2852.30 PLN
Availability: BackOrder

local index:

RMS084HAGE

Catalog number:

FR11E1

EAN code:

3250616003781

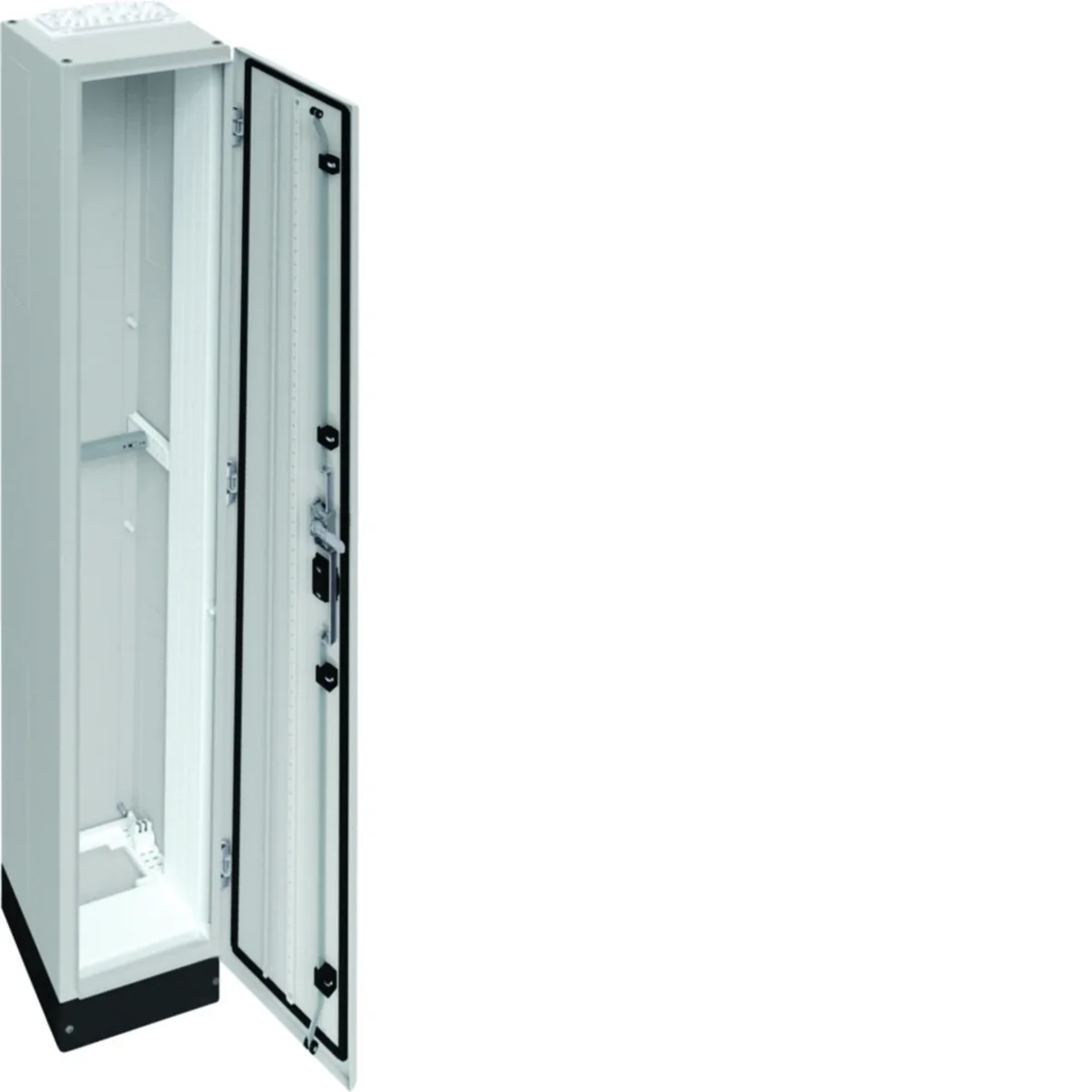

UNIVERS Floor-standing distribution board IP55/I 300x1650x275 with 100mm base

Click on the photo to enlarge

Manufacturer: HAGER

Halogen free: NO

Depth [mm]: 275

Thickness [mm]: 1.5

See full description

Shipment on a pallet

Price:

2 852,30 zł

gross / pcs.

(including VAT 23%)

up to 10 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Floor-mounted switchgear with a 100mm plinth from the univers series. The type of lock is a rotary lever of a semi-cylindrical insert.

Characteristics of the series:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

Halogen free

NO
Thickness [mm]

1.5
Number of locks

1
Color

Gray
Installation

Surface-mounted
Family

UNIVERS
Width [mm]

300
Surface finish

Powder coated
Number of rows for cameras

11
PKWIU

27.12.40.0

Depth [mm]

275
Number of doors

1
Protection class

AND
Housing material

Steel plate
Surface

Matt
Level of security

IP55
Height [mm]

1800
Accurate color

light gray
Number of cable entries

2

Other technical data

Mounting method

Floor installation
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

800 A
Width

300 mm
Inner depth

275 mm
Material plate thickness door/cover

1.5 mm
RAL-number

7035
Number of rows

11
Number of openings for flange plates

2
Number of conduit inlets

2
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP55
Impact strength

IK10
Cover with overpressure release

No

Type of covering

Door
Type of door

Single
With lock

No
Height

1800 mm
Depth

275 mm
Material plate thickness cabinet

1.5 mm
Colour

Grey
Number of modules

132
Width in number of modular spacings

24
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

I
Circuit integrity

None

Manufacturer details

Manufacturer

Hager Electro GmbH & Co KG
Address

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Paleta	Karton	Paleta
Quantity	1 pcs.	6 pcs.	1 pcs.	6 pcs.
Weight (kg)	38,800	257,800	38,800	257,800
Width (m)	0,330	0,800	0,330	0,800
Length (m)	0,300	1,960	0,300	1,960
Depth (m)	1,840	1,200	1,840	1,200
