UNIVERS Floor-standing distribution board IP55/I 1550x1800x275 with 100mm base FR26E1

Name: UNIVERS Floor-standing distribution board IP55/I 1550x1800x275 with 100mm base
Brand: HAGER
SKU: RMS172HAGE
Price: 7711.66 PLN
Availability: BackOrder

Lokaler Index:

RMS172HAGE

Katalognummer:

FR26E1

EAN-Code:

3250616005266

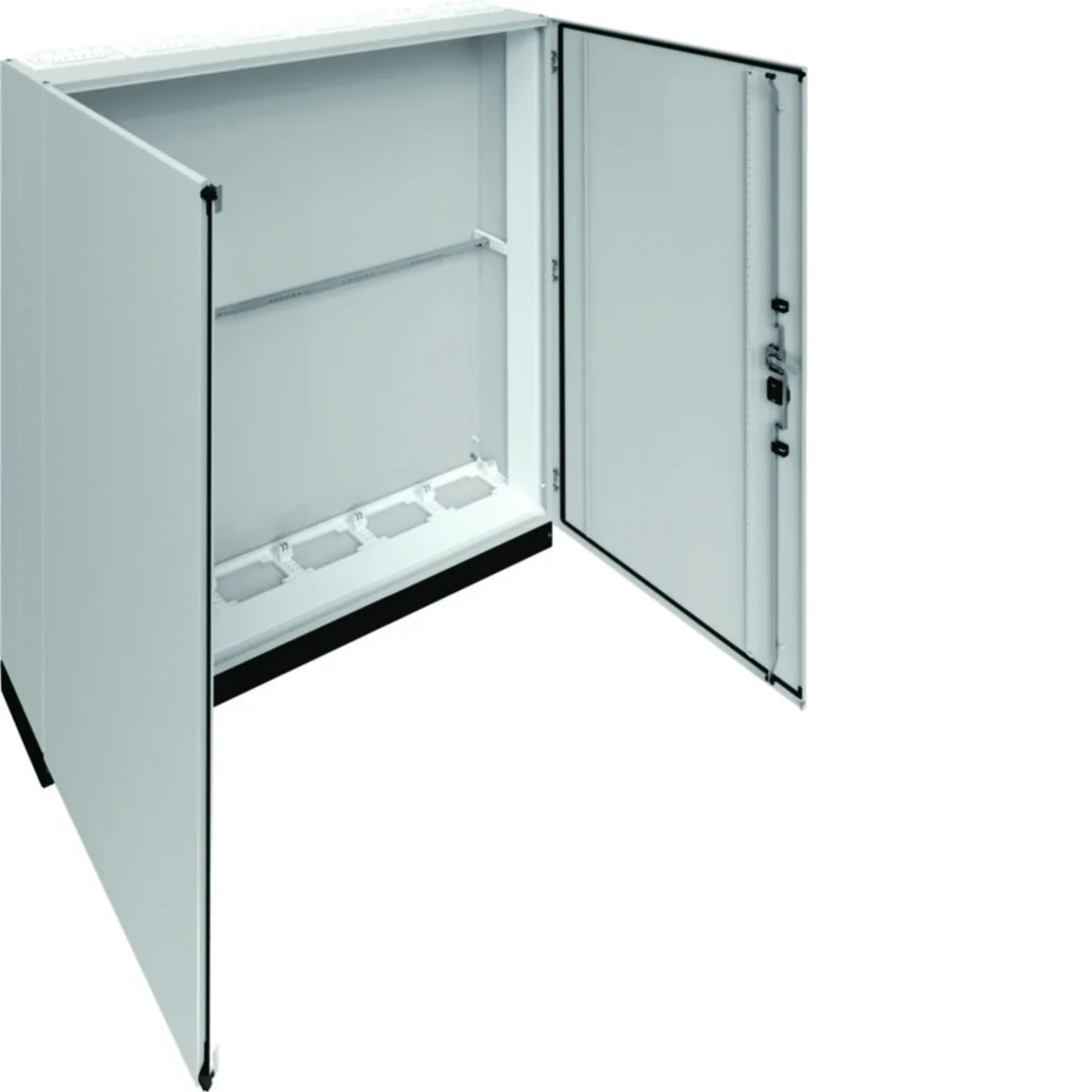

UNIVERS Floor-standing distribution board IP55/I 1550x1800x275 with 100mm base

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: HAGER

Halogen free: NO

Depth [mm]: 275

Thickness [mm]: 1.5

Siehe vollständige Beschreibung

Versand auf Palette

Preis:

7 711,66 zł

gross / stk.

(inklusive MwSt 23%)

bis zu 4 Wochen

Auf Bestellung

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

Floor-mounted switchgear with a 100mm plinth from the univers series. The type of lock is a rotary lever of a semi-cylindrical insert.

Characteristics of the series:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technische Daten

Halogen free

NO
Thickness [mm]

1.5
Number of locks

1
Color

Gray
Installation

Surface-mounted
Family

UNIVERS
Width [mm]

1550
Surface finish

Powder coated
Number of rows for cameras

12
PKWIU

27.12.40.0

Depth [mm]

275
Number of doors

2
Protection class

AND
Housing material

Steel plate
Surface

Matt
Level of security

IP55
Height [mm]

1950
Accurate color

light gray
Number of cable entries

12

Weitere technische Daten

Mounting method

Floor installation
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

800 A
Width

1550 mm
Inner depth

275 mm
Material plate thickness door/cover

1.5 mm
RAL-number

7035
Number of rows

12
Number of openings for flange plates

12
Number of conduit inlets

12
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP55
Impact strength

IK10
Cover with overpressure release

No

Type of covering

Door
Type of door

Double
With lock

No
Height

1950 mm
Depth

275 mm
Material plate thickness cabinet

1.5 mm
Colour

Grey
Number of modules

864
Width in number of modular spacings

24
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

I
Circuit integrity

None

Hersteller-Details

Hersteller

Hager Electro GmbH & Co KG
Adresse

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-Mail

wsparcie.klienta@hager.com

Großpackungen

Eine Art Paket	Karton	Paleta	Karton	Paleta
Menge	1 stk.	1 stk.	1 stk.	1 stk.
Gewicht (kg)	121,000	146,000	121,000	146,000
Breite (m)	0,280	0,600	0,280	0,600
Länge (m)	1,970	2,140	1,970	2,140
Tiefe (m)	1,570	1,600	1,570	1,600
