HAGER

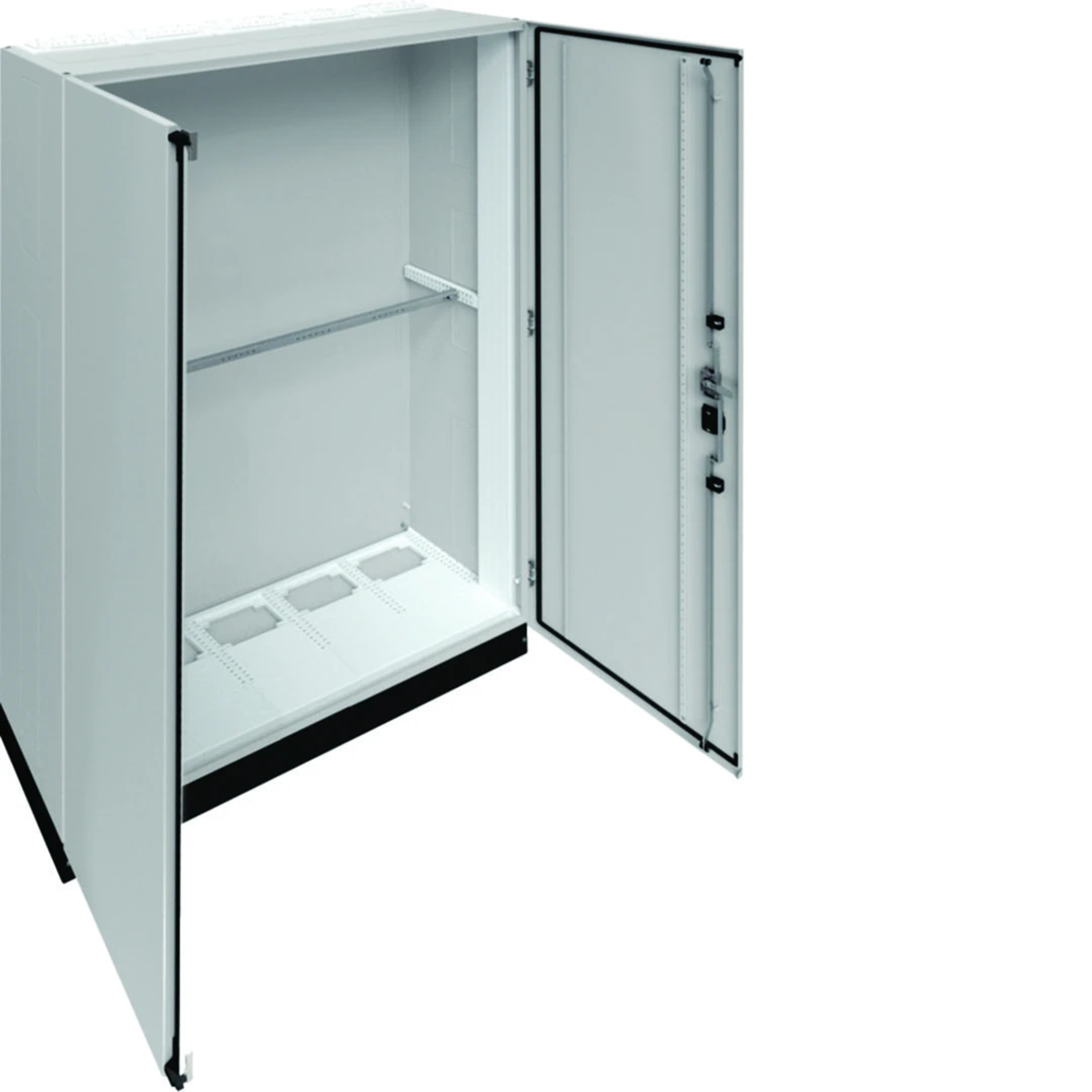

UNIVERS Floor-standing distribution board IP55/I 1300x1850x400 + 100mm plinth FR25G1

local index:
RMH062HAGE
Catalog No:
FR25G1
EAN code:
3250616004214
Price:
1412,09 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
Shipment on a pallet
From 69,46 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Standing switchgear with a 100mm base, univers series.

Series characteristics:

Cabinet systems are characterized by with the functionality of the building, not only as distribution switchboards (main power supply), but also as metering cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

  • Halogen free
    NO
  • Thickness [mm]
    1.5
  • Number of locks
    1
  • Color
    Gray
  • Installation
    Surface-mounted
  • Family
    UNIVERS
  • Width [mm]
    1300
  • Surface finish
    Powder coated
  • Number of rows for cameras
    12
  • Depth [mm]
    400
  • Number of doors
    2
  • Protection class
    AND
  • Housing material
    Steel plate
  • Surface
    Matt
  • Level of security
    IP55
  • Height [mm]
    1950
  • Accurate color
    light gray
  • Number of cable entries
    10

Other technical data

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    no
  • Nominal current (In)
    800 A
  • Width
    1300 mm
  • Inner depth
    400 mm
  • Material plate thickness door/cover
    1.5 mm
  • RAL-number
    7035
  • Number of rows
    12
  • Number of openings for flange plates
    10
  • Number of conduit inlets
    10
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    no
  • Degree of protection (IP)
    IP55
  • Impact strength
    IK10
  • Type of covering
    Door
  • Type of door
    Double
  • With lock
    no
  • Height
    1950 mm
  • Depth
    400 mm
  • Material plate thickness cabinet
    1.5 mm
  • Colour
    Grey
  • Number of modules
    720
  • Width in number of modular spacings
    24
  • Extension possible
    yes
  • Housing material
    Steel
  • With mounting plate
    no
  • Suitable for lightning protection
    no
  • Protection class
    I
  • Circuit integrity
    None
