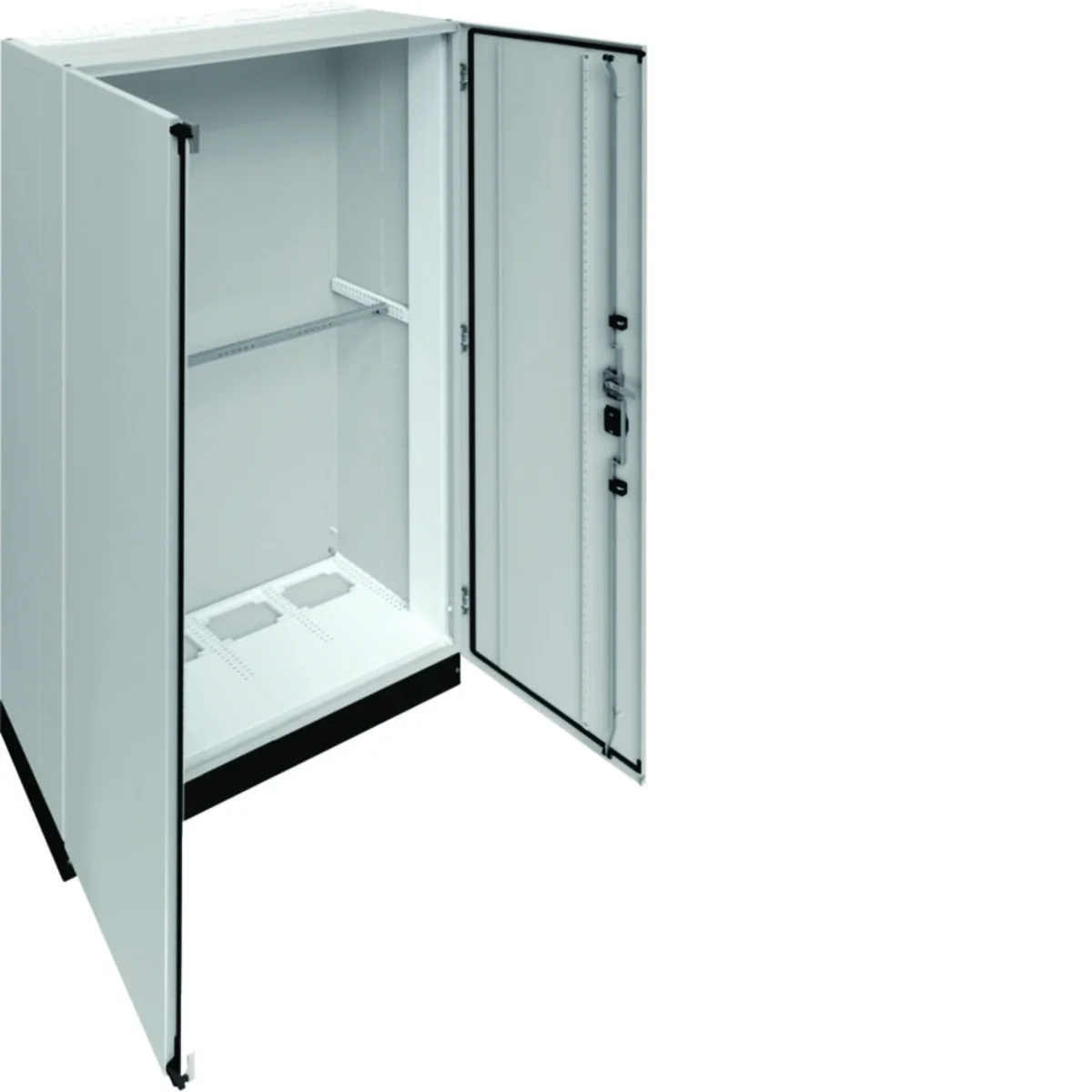

UNIVERS Floor-standing distribution board IP55/I 1050x1850x400 + 100mm plinth FR24G1

local index:
RMH064HAGE
Catalog No:
FR24G1
EAN code:
3250616004139
Manufacturer: HAGER
Halogen free: NO
Depth [mm]: 400
Thickness [mm]: 1.5
Shipment on a pallet
Price:
1216,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Standing switchgear with a 100mm base, univers series.

Series characteristics:

Cabinet systems are characterized by with the functionality of the building, not only as distribution switchboards (main power supply), but also as metering cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

  • Halogen free
    NO
  • Thickness [mm]
    1.5
  • Number of locks
    1
  • Color
    Gray
  • Installation
    Surface-mounted
  • Family
    UNIVERS
  • Width [mm]
    1050
  • Surface finish
    Powder coated
  • Number of rows for cameras
    12
  • PKWIU
    27.12.40.0
  • Depth [mm]
    400
  • Number of doors
    2
  • Protection class
    AND
  • Housing material
    Steel plate
  • Surface
    Matt
  • Level of security
    IP55
  • Height [mm]
    1950
  • Accurate color
    light gray
  • Number of cable entries
    8

Other technical data

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    no
  • Nominal current (In)
    800 A
  • Width
    1050 mm
  • Inner depth
    400 mm
  • Material plate thickness door/cover
    1.5 mm
  • RAL-number
    7035
  • Number of rows
    12
  • Number of openings for flange plates
    8
  • Number of conduit inlets
    8
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    no
  • Degree of protection (IP)
    IP55
  • Impact strength
    IK10
  • Type of covering
    Door
  • Type of door
    Double
  • With lock
    no
  • Height
    1950 mm
  • Depth
    400 mm
  • Material plate thickness cabinet
    1.5 mm
  • Colour
    Grey
  • Number of modules
    576
  • Width in number of modular spacings
    24
  • Extension possible
    yes
  • Housing material
    Steel
  • With mounting plate
    no
  • Suitable for lightning protection
    no
  • Protection class
    I
  • Circuit integrity
    None

Bulk packaging

A kind of package Pakiet Paleta
Quantity 1 pcs. 2 pcs.
Weight (kg) 102,094 204,188
Width (m) 0,400 0,800
Length (m) 1,970 2,120
Depth (m) 1,070 1,200
