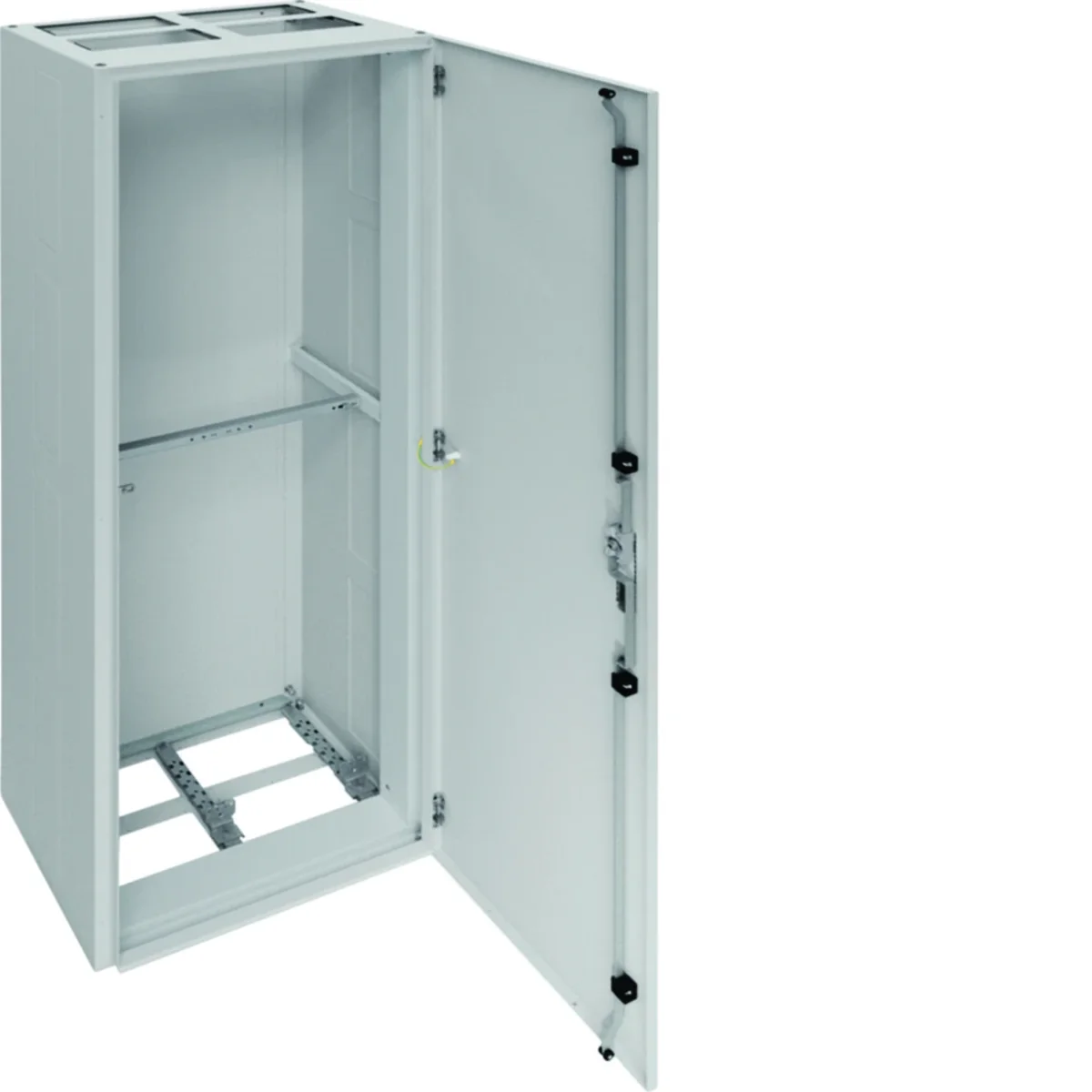

UNIVERS Floor-standing distribution board IP41/I 550x1850x400 with 200mm base FS22G

local index:
RMS189HAGE
Catalog No:
FS22G
EAN code:
3250610700334
Manufacturer: HAGER
Halogen free: NO
Depth [mm]: 400
Thickness [mm]: 1.5
Shipment on a pallet
Price:
558,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Floor-mounted switchgear with a 200mm plinth from the univers series. The type of lock is a rotary lever of a semi-cylindrical insert.

Series characteristics:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

  • Halogen free
    NO
  • Thickness [mm]
    1.5
  • Number of locks
    1
  • Color
    Gray
  • Housing material
    Steel plate
  • Surface
    Matt
  • Level of security
    IP41
  • Height [mm]
    1850
  • Accurate color
    light gray
  • Number of cable entries
    4
  • PKWIU
    27.12.40.0
  • Depth [mm]
    400
  • Number of doors
    1
  • Protection class
    AND
  • Material
    Galvanized steel sheet
  • Installation
    Surface-mounted
  • Family
    UNIVERS
  • Width [mm]
    550
  • Surface finish
    Powder coated
  • Number of rows for cameras
    12
  • Lock type
    Double lock

Other technical data

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    800 A
  • Width
    550 mm
  • Inner depth
    400 mm
  • Material plate thickness door/cover
    1.5 mm
  • RAL-number
    7035
  • Number of rows
    12
  • Number of openings for flange plates
    4
  • Number of conduit inlets
    4
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP41
  • Impact strength
    IK07
  • Type of covering
    Door
  • Type of door
    Single
  • With lock
    No
  • Height
    1850 mm
  • Depth
    400 mm
  • Material plate thickness cabinet
    1.5 mm
  • Colour
    Grey
  • Number of modules
    288
  • Width in number of modular spacings
    24
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    I
  • Circuit integrity
    None

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 4 pcs.
Weight (kg) 60,000 62,000 246,000
Width (m) 0,550 0,420 0,840
Length (m) 1,850 1,870 2,020
Depth (m) 0,400 0,570 1,200
