UNIVERS Floor-standing distribution board IP41/I 300x1850x275 with 200mm base FS21E

Name: UNIVERS Floor-standing distribution board IP41/I 300x1850x275 with 200mm base
Brand: HAGER
SKU: RMS187HAGE
Price: 2031.05 PLN
Availability: BackOrder

Indeks lokalny:

RMS187HAGE

Numer katalogowy:

FS21E

Kod EAN:

3250610700303

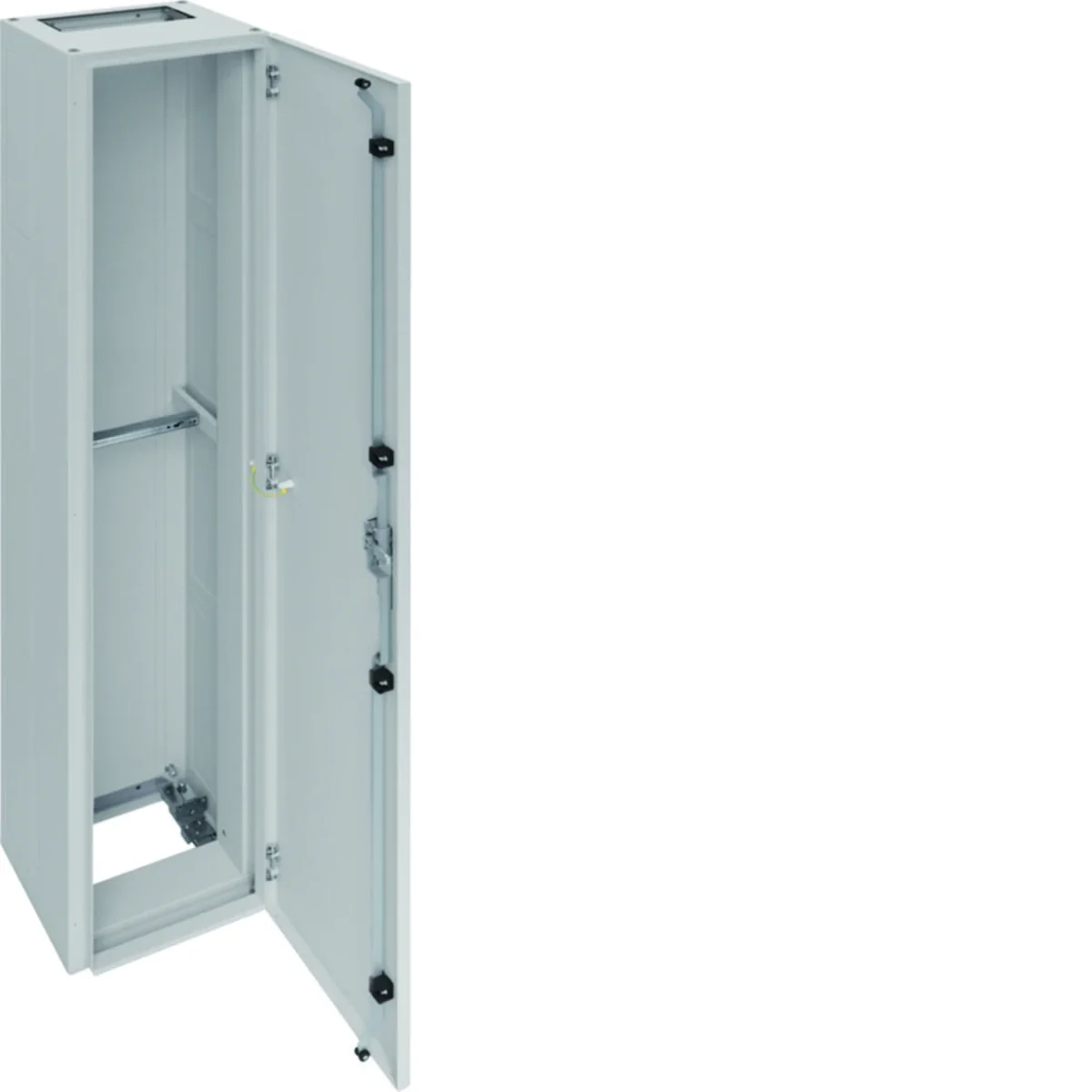

UNIVERS Floor-standing distribution board IP41/I 300x1850x275 with 200mm base

Kliknij zdjęcie, aby powiększyć

Producent: HAGER

Halogen free: NO

Depth [mm]: 275

Thickness [mm]: 1.5

Zobacz cały opis

Przesyłka na palecie

Cena:

2 031,05 zł

gross / szt.

(w tym VAT 23%)

do 6 tygodni

Na zamówienie

Ilość szt.

(wielokrotność:

)

Dodaj do zapytania ofertowego

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

Floor-mounted switchgear with a 200mm plinth from the univers series.

Characteristics of the series:

The cabinet systems are functional, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum security.

Dane techniczne

Halogen free

NO
Thickness [mm]

1.5
Number of locks

1
Color

Gray
Housing material

Steel plate
Surface

Matt
Level of security

IP41
Height [mm]

1850
Accurate color

light gray
Number of cable entries

2
PKWIU

27.12.40.0

Depth [mm]

275
Number of doors

1
Protection class

AND
Material

Galvanized steel sheet
Installation

Surface-mounted
Family

UNIVERS
Width [mm]

300
Surface finish

Powder coated
Number of rows for cameras

12
Lock type

Double lock

Pozostałe dane techniczne

Mounting method

Floor installation
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

630 A
Width

300 mm
Inner depth

275 mm
Material plate thickness door/cover

1.5 mm
RAL-number

7035
Number of rows

12
Number of openings for flange plates

2
Number of conduit inlets

2
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP41
Impact strength

IK07
Cover with overpressure release

No

Type of covering

Door
Type of door

Single
With lock

No
Height

1850 mm
Depth

275 mm
Material plate thickness cabinet

1.5 mm
Colour

Grey
Number of modules

144
Width in number of modular spacings

24
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

I
Circuit integrity

None

Dane producenta

Producent

Hager Electro GmbH & Co KG
Adres

DE 66440 Blieskastel Zum Gunterstal Niemcy
Email

wsparcie.klienta@hager.com

Opakowania zbiorcze

Rodzaj opakowania	Karton	Paleta	Karton	Paleta
Ilość	1 szt.	6 szt.	1 szt.	6 szt.
Waga (kg)	41,500	265,000	41,500	265,000
Szerokość (m)	0,300	0,800	0,300	0,800
Długość (m)	1,980	2,040	1,980	2,040
Głębokość (m)	0,310	1,200	0,310	1,200
