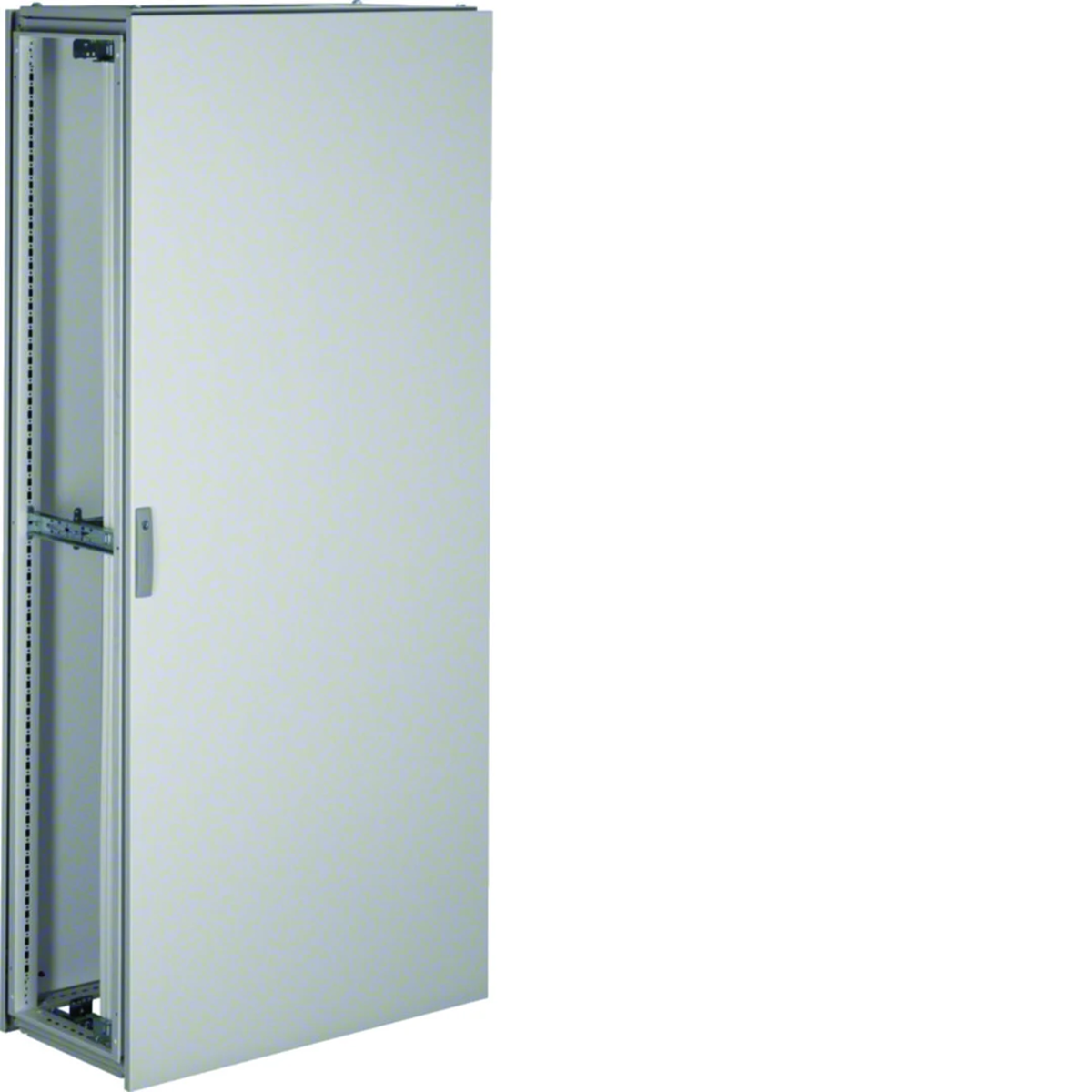

UNIVERS Cabinet for row building IP54/I 3-pole FG23WD
local index:
RMH068HAGE
Catalog No:
FG23WD
EAN code:
3250612794621
Shipment on a pallet
Price:
2014,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Row-mounted wardrobe with solid doors
Technical data
-
Depth [mm]400
-
ColorGray
-
Width [mm]850
-
Accurate colorGray
-
Number of doors1
-
Level of securityIP54
-
Height [mm]1900
-
PKWIU27.12.40.0
Other technical data
-
Mounting methodFloor installation
-
Cover modelClosed
-
Transparent cover/doorNo
-
Nominal current (In)1600 A
-
Width850 mm
-
Built-in depth400 mm
-
Material plate thickness cabinet2 mm
-
ColourGrey
-
Number of modules432
-
Width in number of modular spacings36
-
Extension possibleYes
-
Housing materialSteel
-
With mounting plateNo
-
Suitable for lightning protectionNo
-
Protection classI
-
Circuit integrityNone
-
Type of coveringDoor
-
Type of doorDouble
-
With lockYes
-
Height1900 mm
-
Depth400 mm
-
Inner depth400 mm
-
Material plate thickness door/cover2 mm
-
RAL-number7035
-
Number of rows36
-
Number of openings for flange plates6
-
Number of conduit inlets6
-
Surface protectionPowder coating
-
Suitable for outdoor useNo
-
Degree of protection (IP)IP54
-
Impact strengthIK10
Manufacturer details
-
ManufacturerHager Electro GmbH & Co KG
-
AddressDE 66440 Blieskastel Zum Gunterstal Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton | Paleta |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 89,990 | 89,990 |
| Width (m) | 0,400 | 0,800 |
| Length (m) | 1,900 | 2,000 |
| Depth (m) | 0,800 | 1,200 |
