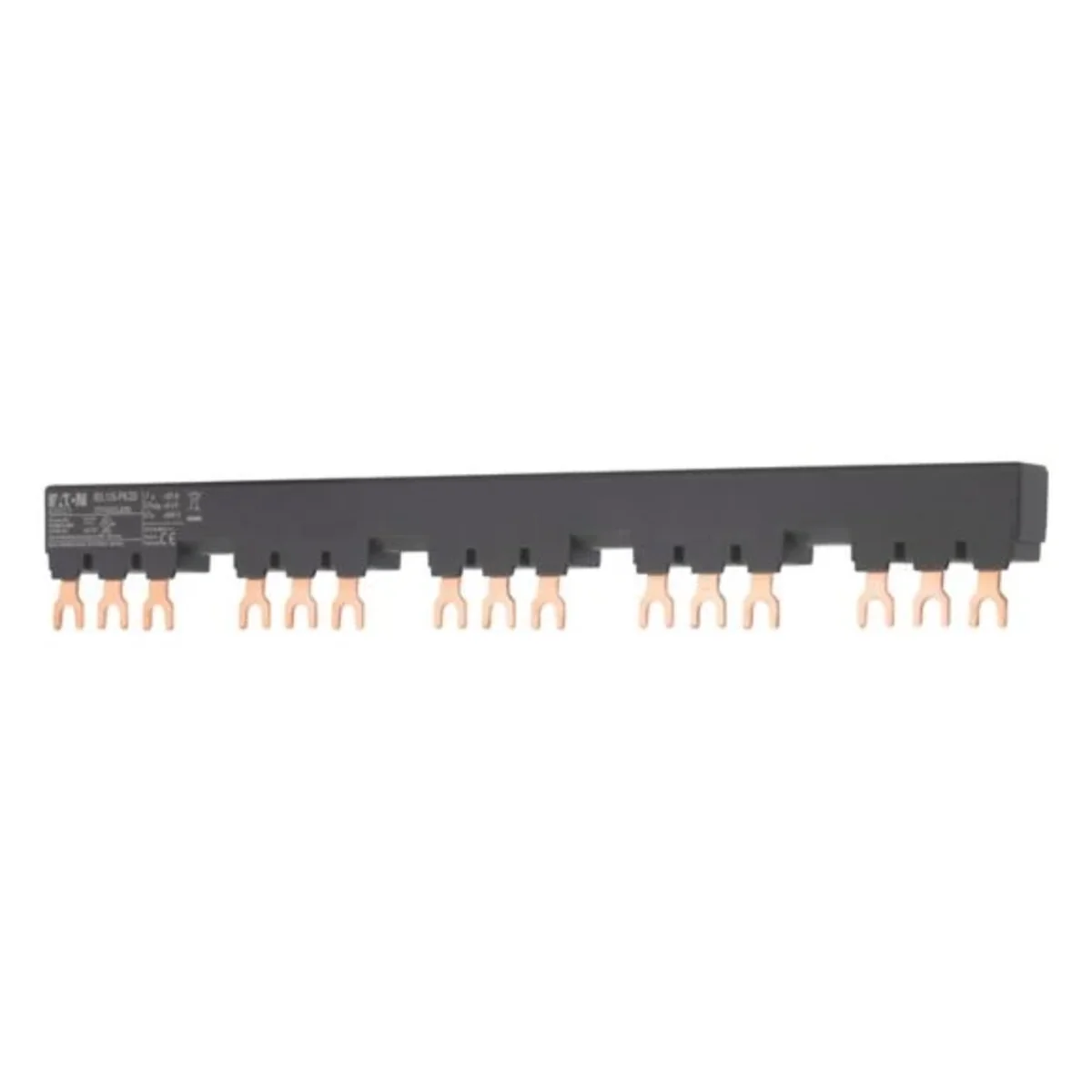

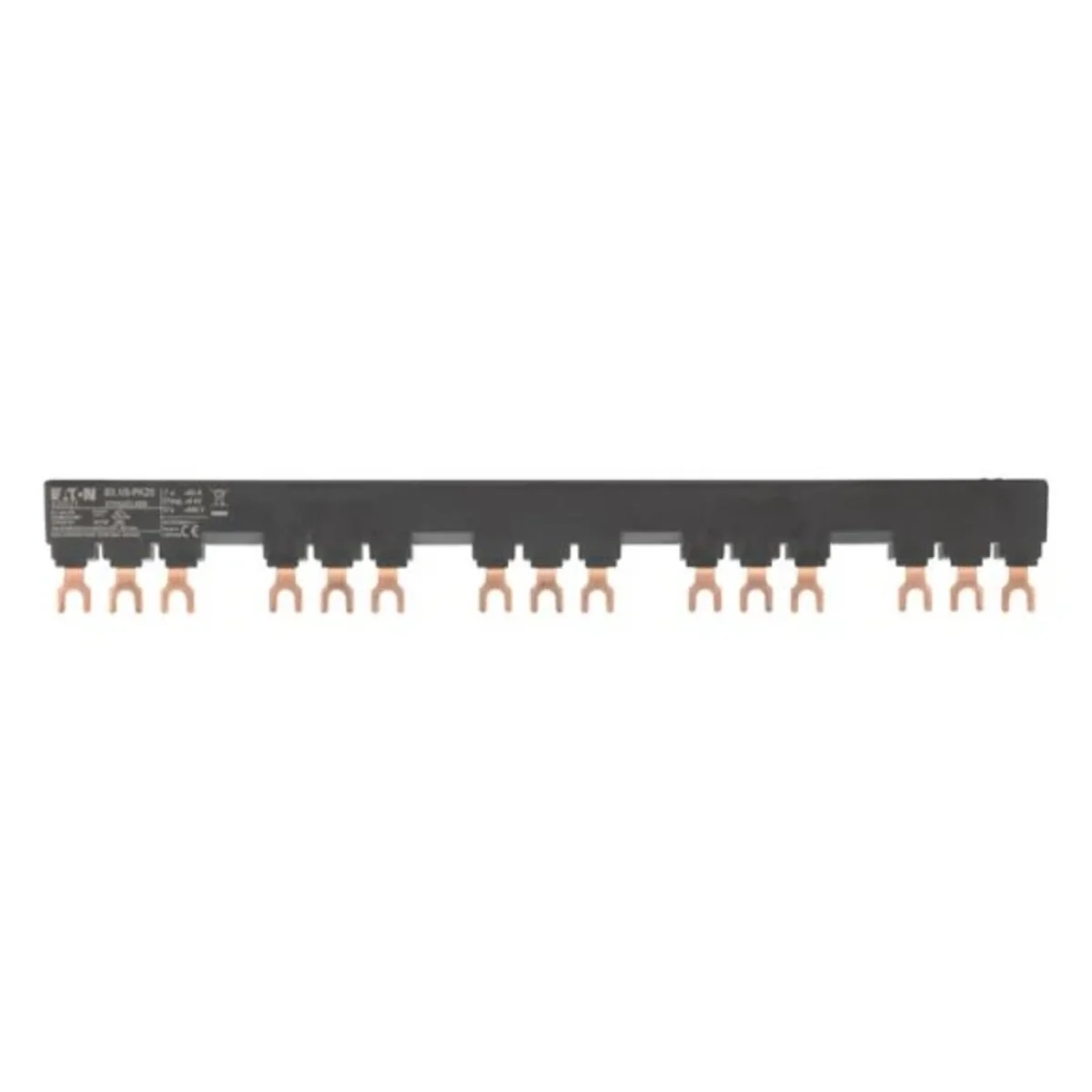

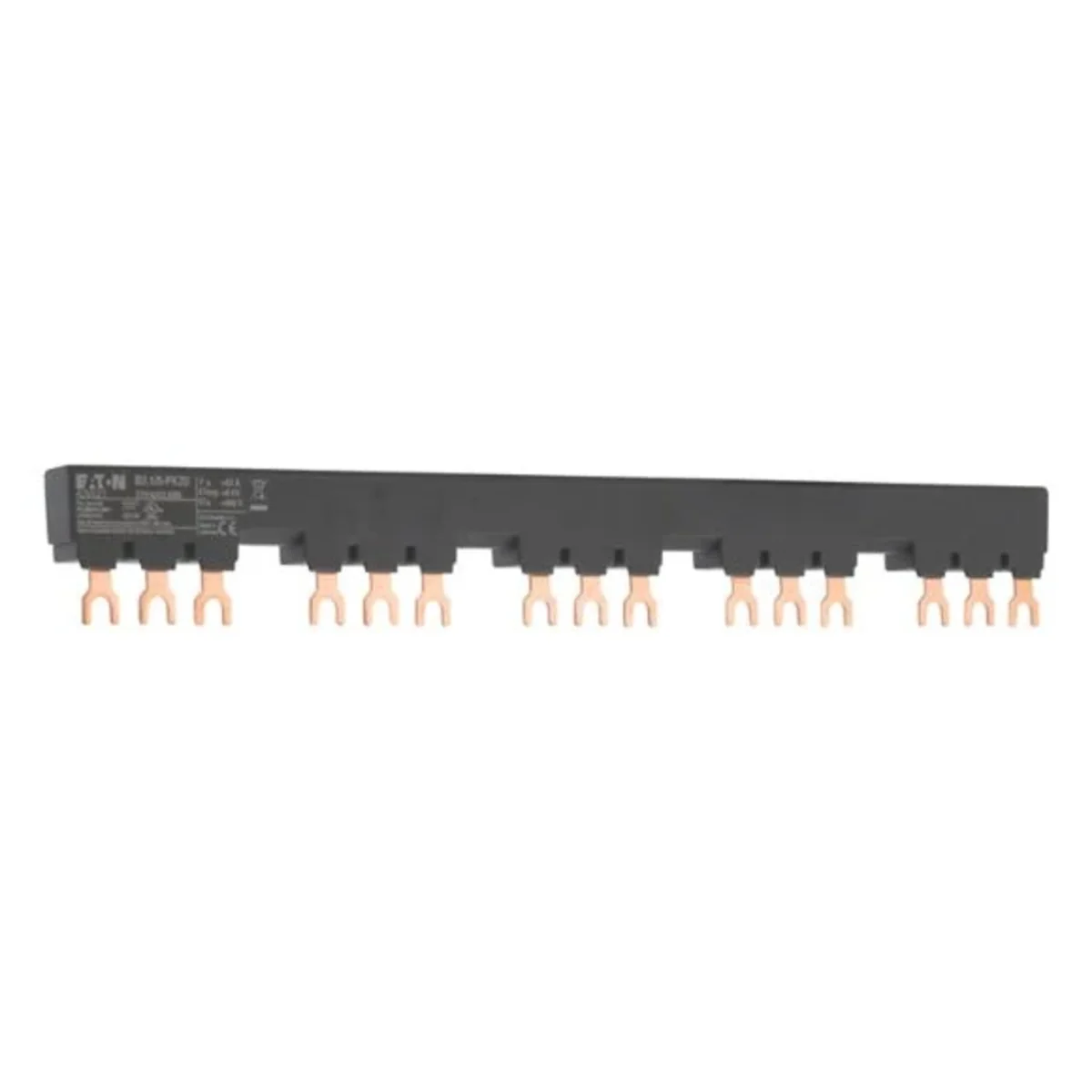

three-phase bridge blocks, B3.1/5-PKZ0 044948

local index:
RPU035MOEL
Catalog No:
044948
EAN code:
4015080449485
Manufacturer: EATON
Length [mm]: 261
Pitch [mm]: 45+9
Circuit breaker: 5
Price:
23,63 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
10
)
Add to clipboard
Print

Product description

Three-phase bridge blocks, power supply on terminals 1, 3, 5. Touch-safe, short-circuit proof, Ue = 690 V, Iu = 63 A. Extendable by alternating mounting. For motor circuit-breakers, each with one right-mounted auxiliary contact or trip indicator.

Technical data

  • Length [mm]
    261
  • Circuit breaker
    5
  • Pitch [mm]
    45+9

Other technical data

  • Number of phases
    3
  • Suitable for number of devices
    5
  • Cross section
    0 mm²
  • Width in number of modular spacings
    14.5
  • Type of electric connection
    Fork
  • Rated surge voltage
    6 kV
  • Max. rated operation voltage Ue
    690 V
  • Suitable for devices with N-conductor
    No
  • Colour
    Black
  • Number of poles
    3
  • Module width
    54 mm
  • Length
    264 mm
  • Rated permanent current Iu
    63 A
  • Insulated
    Yes
  • Conditioned rated short-circuit current Iq
    0 kA
  • Rated short-time withstand current lcw
    0 kA
  • Suitable for devices with auxiliary switch
    No

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 10 pcs.
Weight (kg) 0,113 1,133
Volume (m3) 0,000 0,001
Width (m) 0,013 0,062
Length (m) 0,266 0,280
Depth (m) 0,036 0,073
