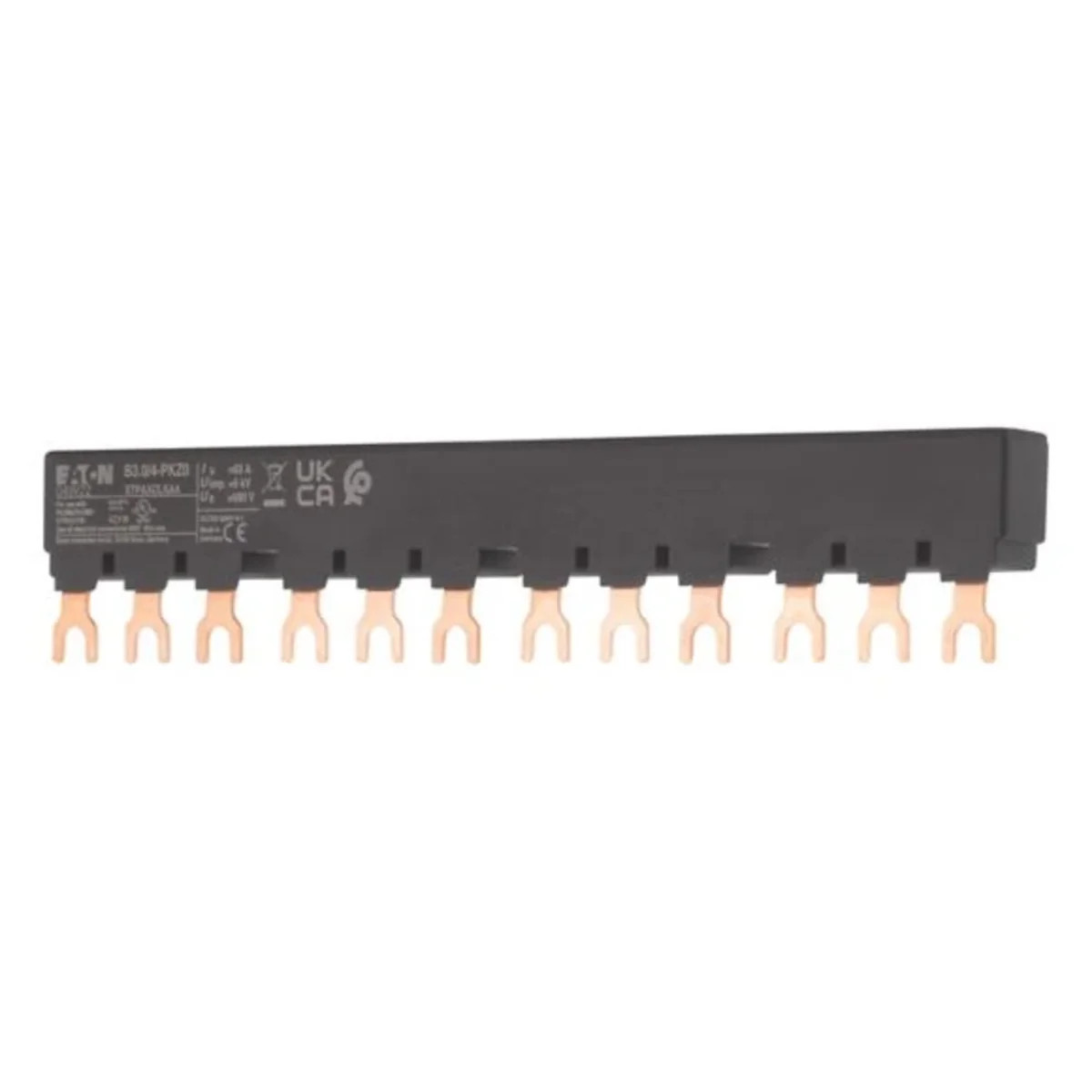

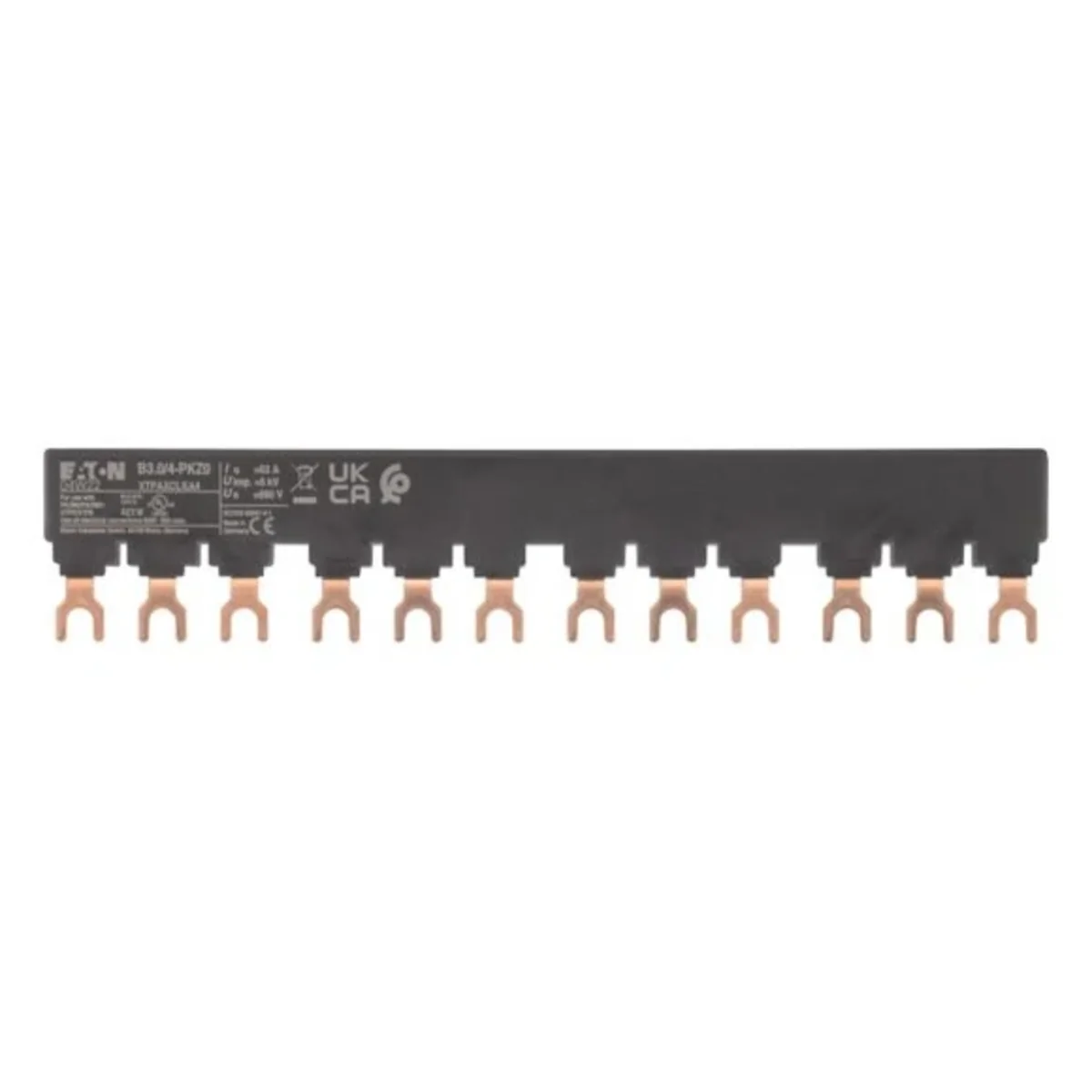

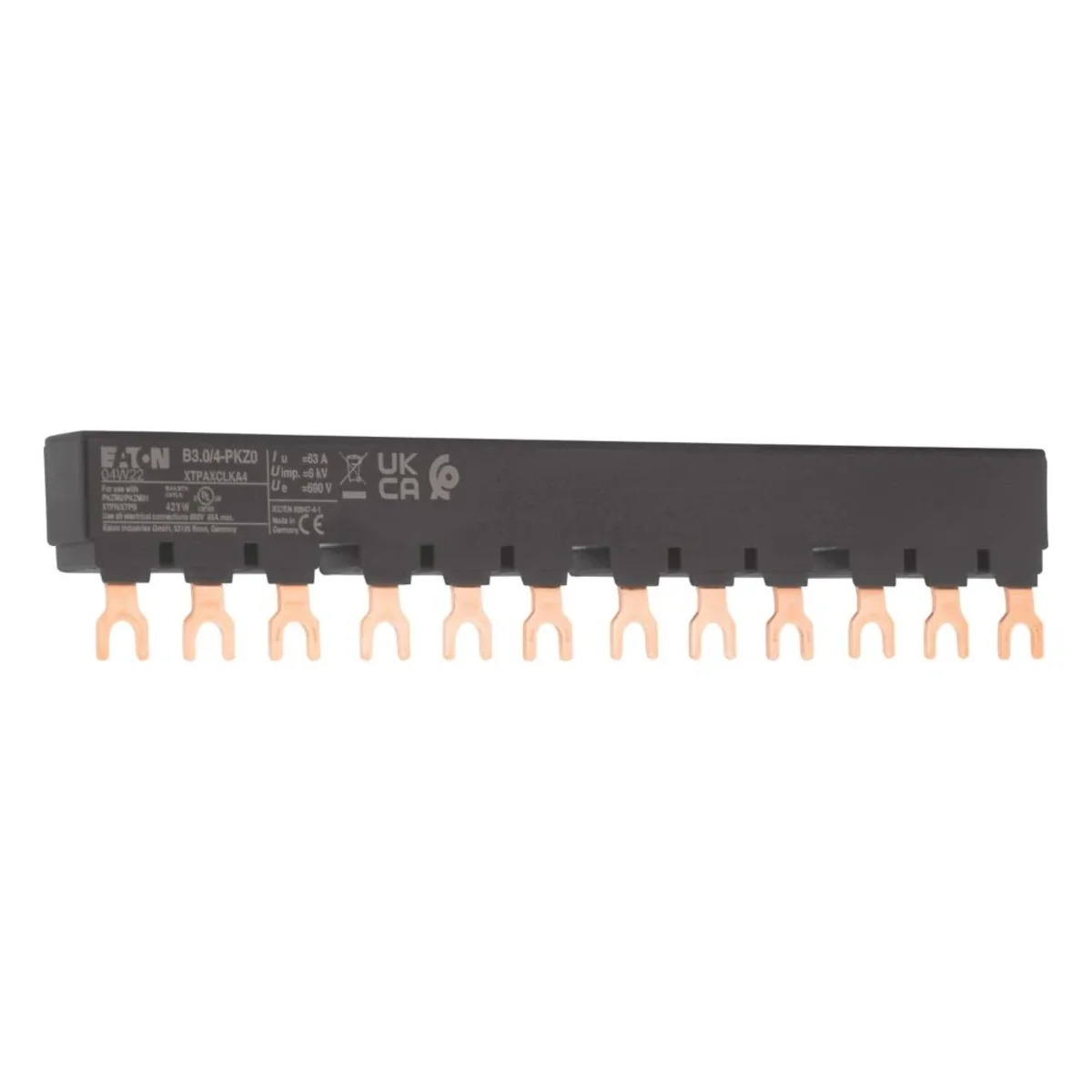

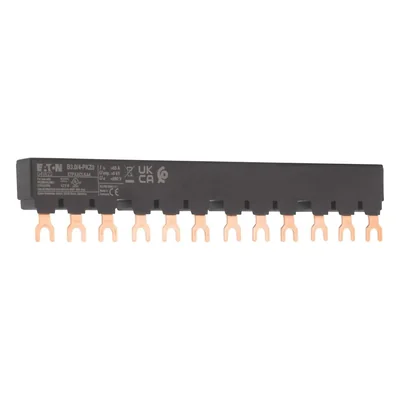

Three-phase bridge blocks, B3.0/4-PKZ0 063960

local index:
RPU018MOEL
Catalog No:
063960
EAN code:
4015080639602
Manufacturer: EATON
Length [mm]: 180
Pitch [mm]: 45
Circuit breaker: 4
Price:
20,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
10
)
Print

Product description

Three-phase bridge blocks, power supply on terminals 1, 3, 5. Touch-proof, short-circuit proof, Ue = 690 V, Iu = 63 A. Extendable by alternating mounting. For PKZM0-… or PKE without side-mounted auxiliary contacts or shunt releases.

Technical data

  • Length [mm]
    180
  • Circuit breaker
    4
  • Pitch [mm]
    45

Other technical data

  • Number of phases
    3
  • Suitable for number of devices
    4
  • Cross section
    0 mm²
  • Width in number of modular spacings
    10
  • Type of electric connection
    Fork
  • Rated surge voltage
    6 kV
  • Max. rated operation voltage Ue
    690 V
  • Suitable for devices with N-conductor
    no
  • Colour
    Black
  • Number of poles
    3
  • Module width
    45 mm
  • Length
    182 mm
  • Rated permanent current Iu
    63 A
  • Insulated
    yes
  • Conditioned rated short-circuit current Iq
    0 kA
  • Rated short-time withstand current lcw
    0 kA
  • Suitable for devices with auxiliary switch
    no

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 10 pcs.
Weight (kg) 0,084 0,843
Volume (m3) 0,000 0,001
Width (m) 0,013 0,062
Length (m) 0,184 0,280
Depth (m) 0,036 0,073
