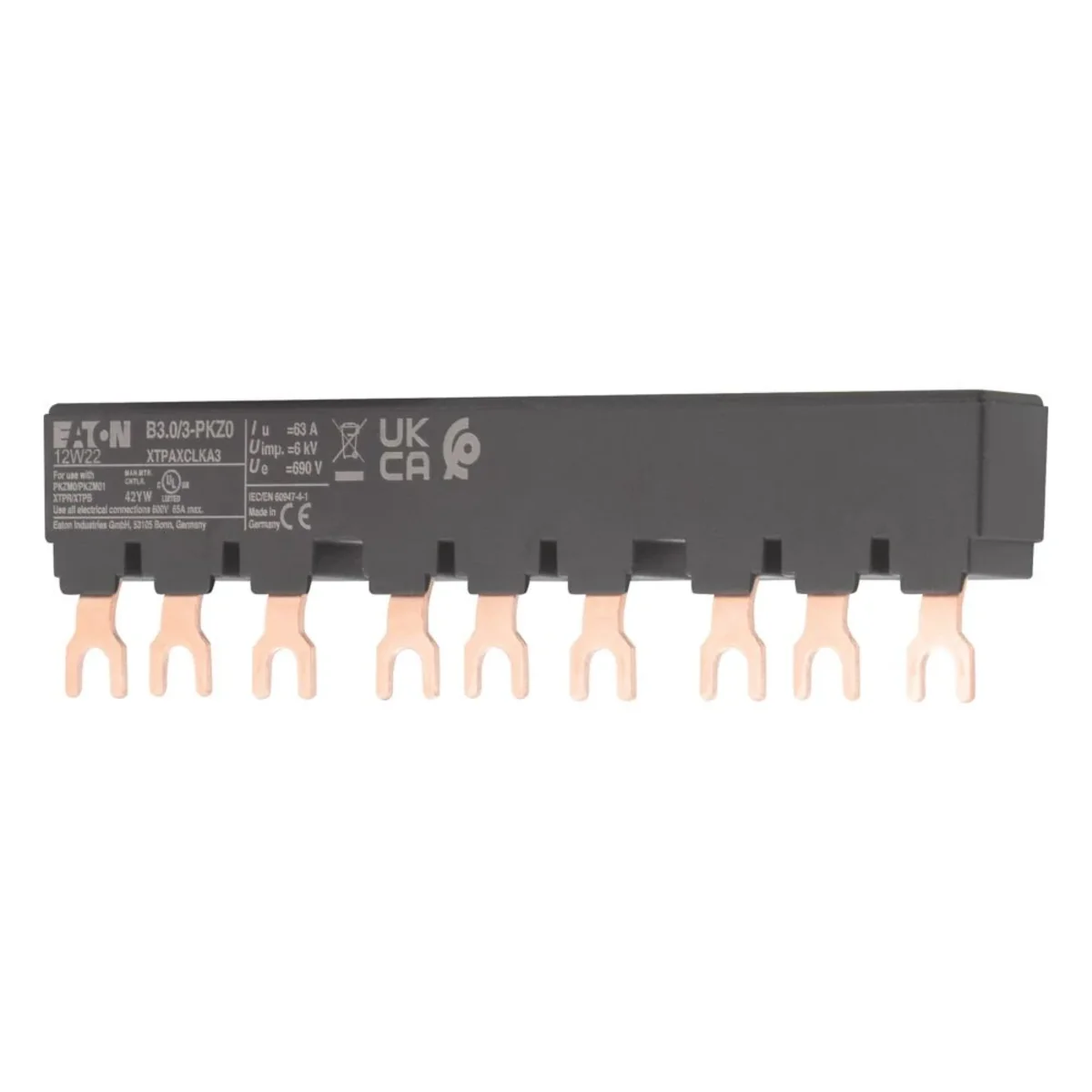

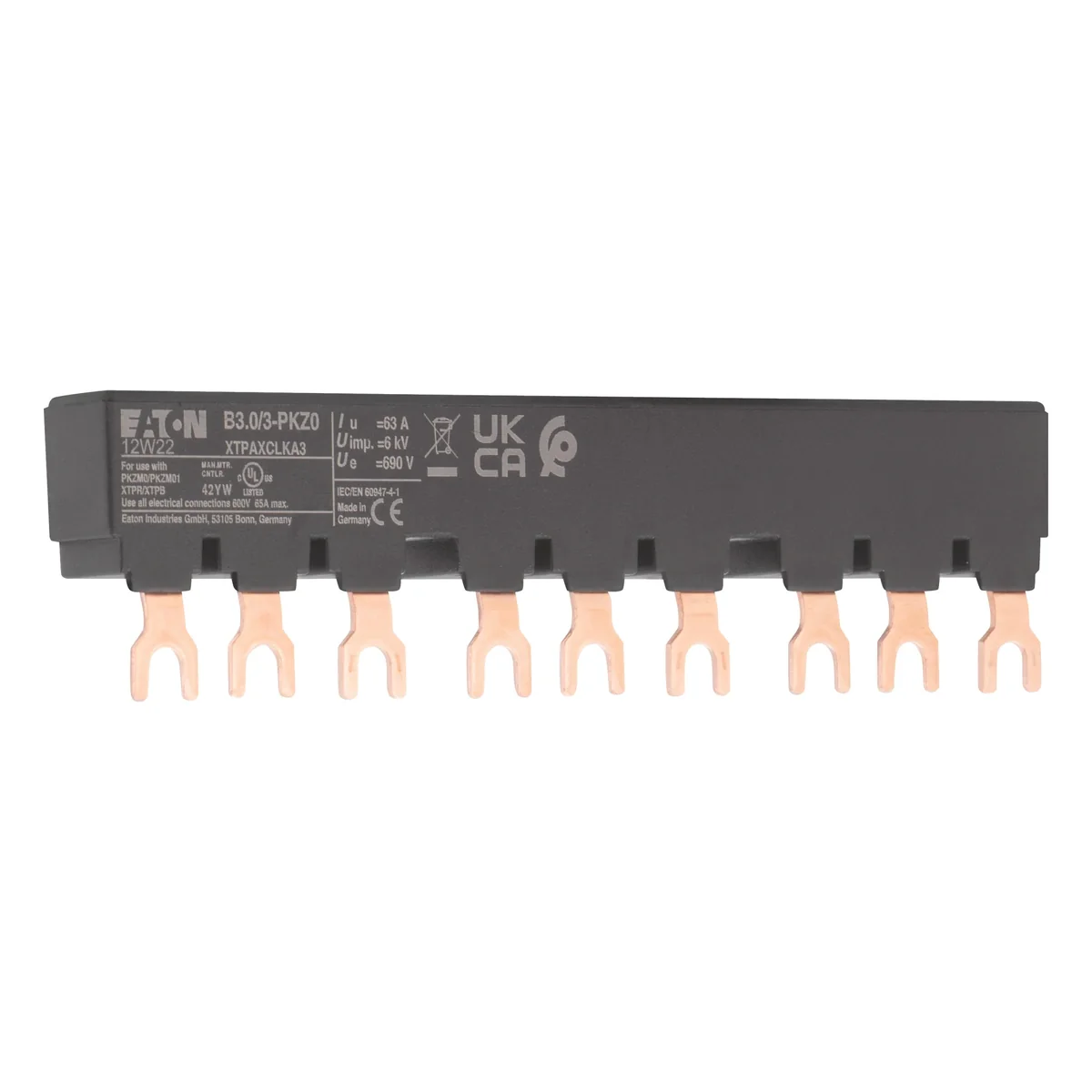

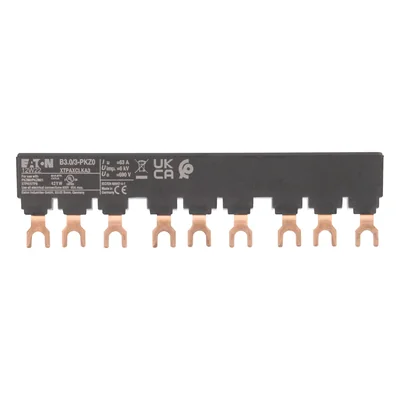

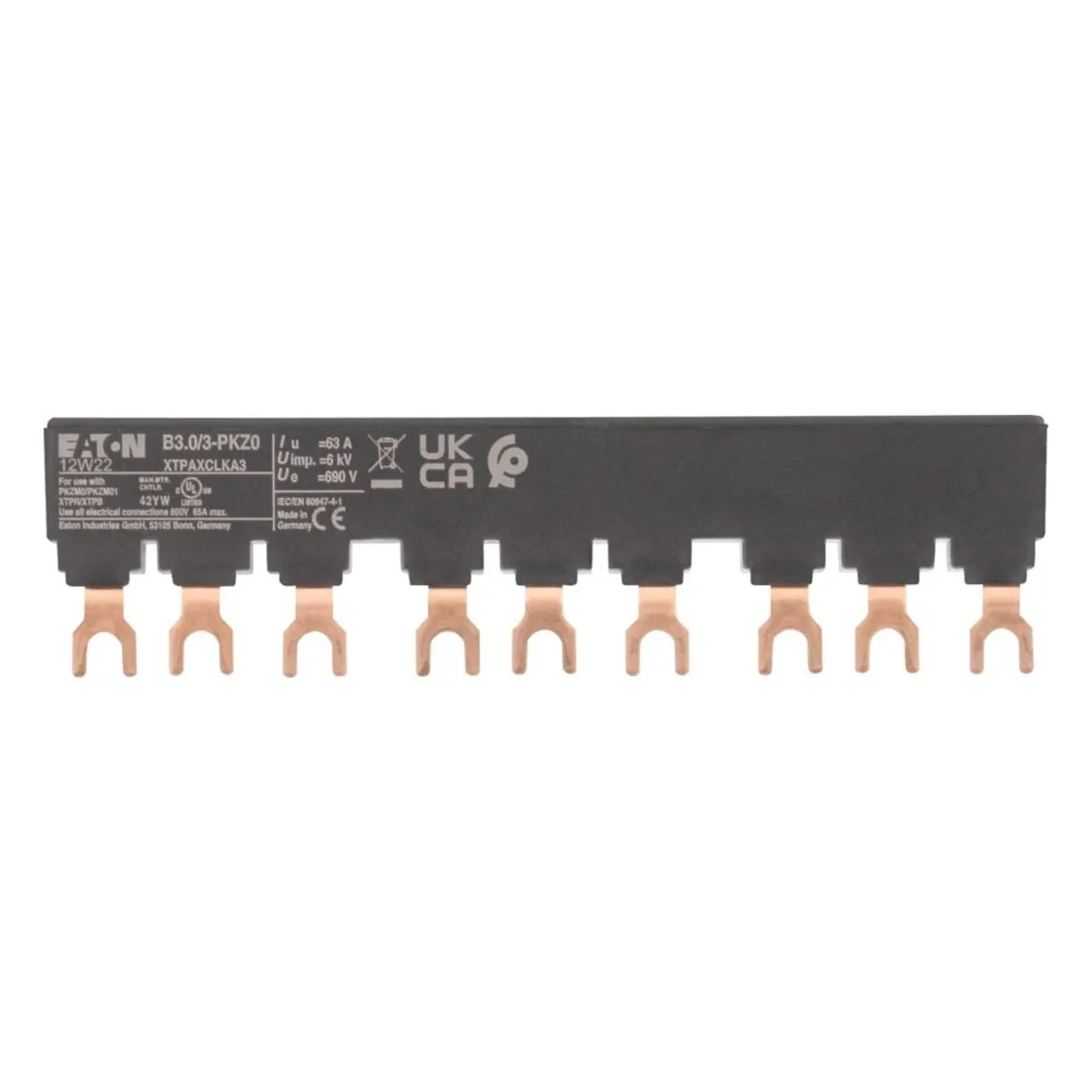

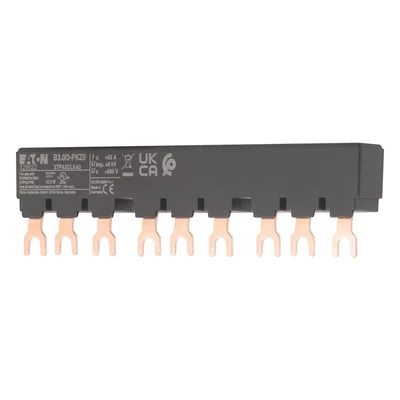

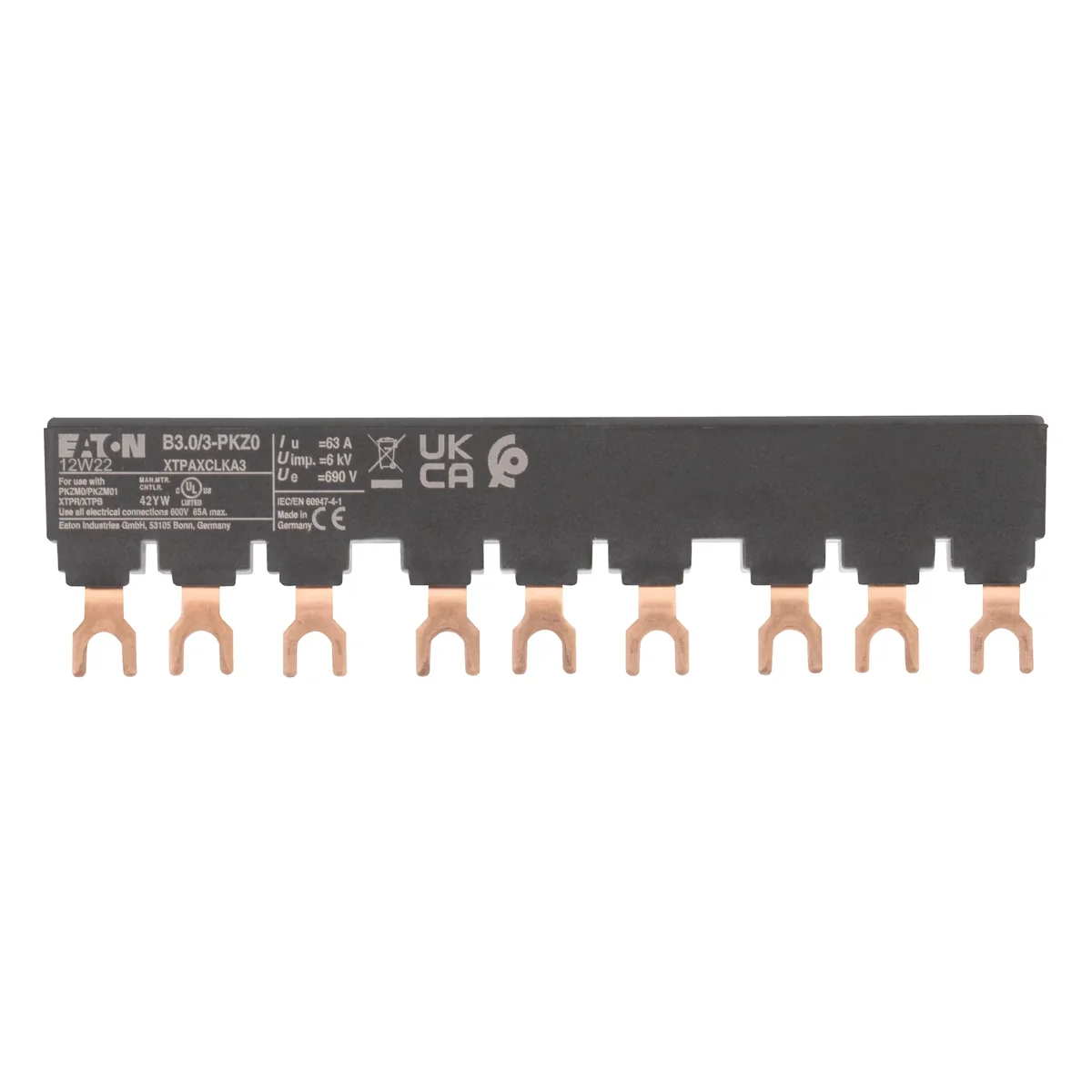

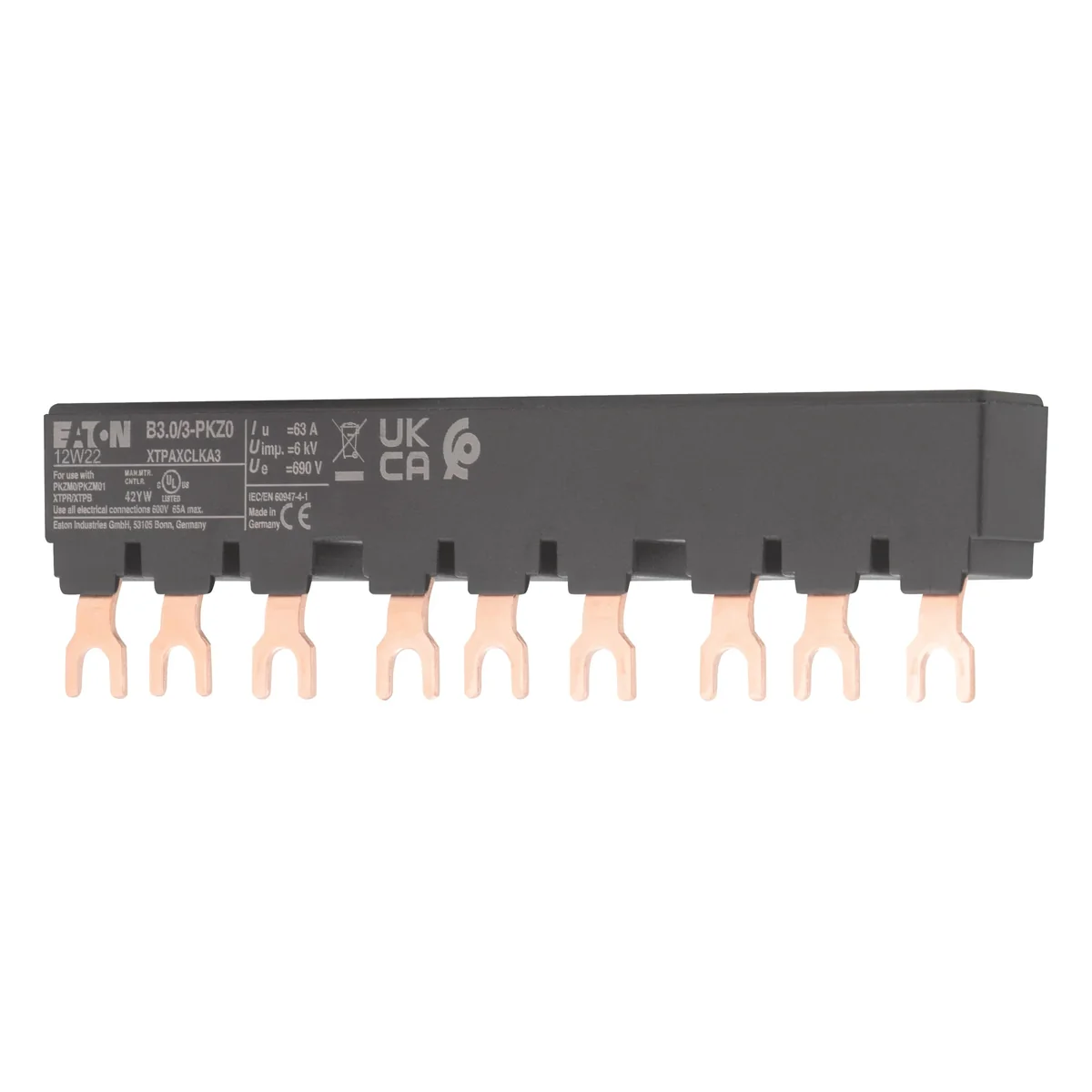

Three-phase bridge blocks, B3.0/3-PKZ0 232289

Name: Three-phase bridge blocks, B3.0/3-PKZ0
Brand: EATON
SKU: RPU017MOEL
Price: 20.21 PLN

local index:

RPU017MOEL

Catalog No:

232289

EAN code:

4015082322892

Click on the photo to enlarge

Manufacturer: EATON

Length [mm]: 135

Pitch [mm]: 45

Circuit breaker: 3

See full description

Price:

20,21 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Three-phase bridge blocks, power supply on terminals 1, 3, 5. Touch-safe, short-circuit proof, Ue = 690 V, Iu = 63 A. Extendable by alternating mounting. For PKZM0-… or PKE without side-mounted auxiliary contacts or shunt releases.

Technical data

Length [mm]

135
Circuit breaker

3

Pitch [mm]

45

Other technical data

Number of phases

3
Suitable for number of devices

3
Cross section

0 mm²
Rated permanent current Iu

63 A
Insulated

Yes
Conditioned rated short-circuit current Iq

0 kA
Rated short-time withstand current lcw

0 kA
Suitable for devices with auxiliary switch

No

Number of poles

3
Module width

45 mm
Length

135 mm
Type of electric connection

Fork
Rated surge voltage

6 kV
Max. rated operation voltage Ue

690 V
Suitable for devices with N-conductor

No

Manufacturer details

Manufacturer

Eaton Electric Sp. z o.o.
Address

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Bulk packaging

A kind of package	Skrzynia	Karton	Skrzynia	Karton
Quantity	1 pcs.	10 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,060	0,600	0,060	0,600
Volume (m3)	0,000	0,001	0,000	0,001
Width (m)	0,014	0,065	0,014	0,065
Length (m)	0,137	0,140	0,137	0,140
Depth (m)	0,036	0,075	0,036	0,075
