Three-phase bridge blocks, B3.0/2-PKZ0 063961

Name: Three-phase bridge blocks, B3.0/2-PKZ0
Brand: EATON
SKU: RPU016MOEL
Price: 17.12 PLN

local index:

RPU016MOEL

Catalog No:

063961

EAN code:

4015080639619

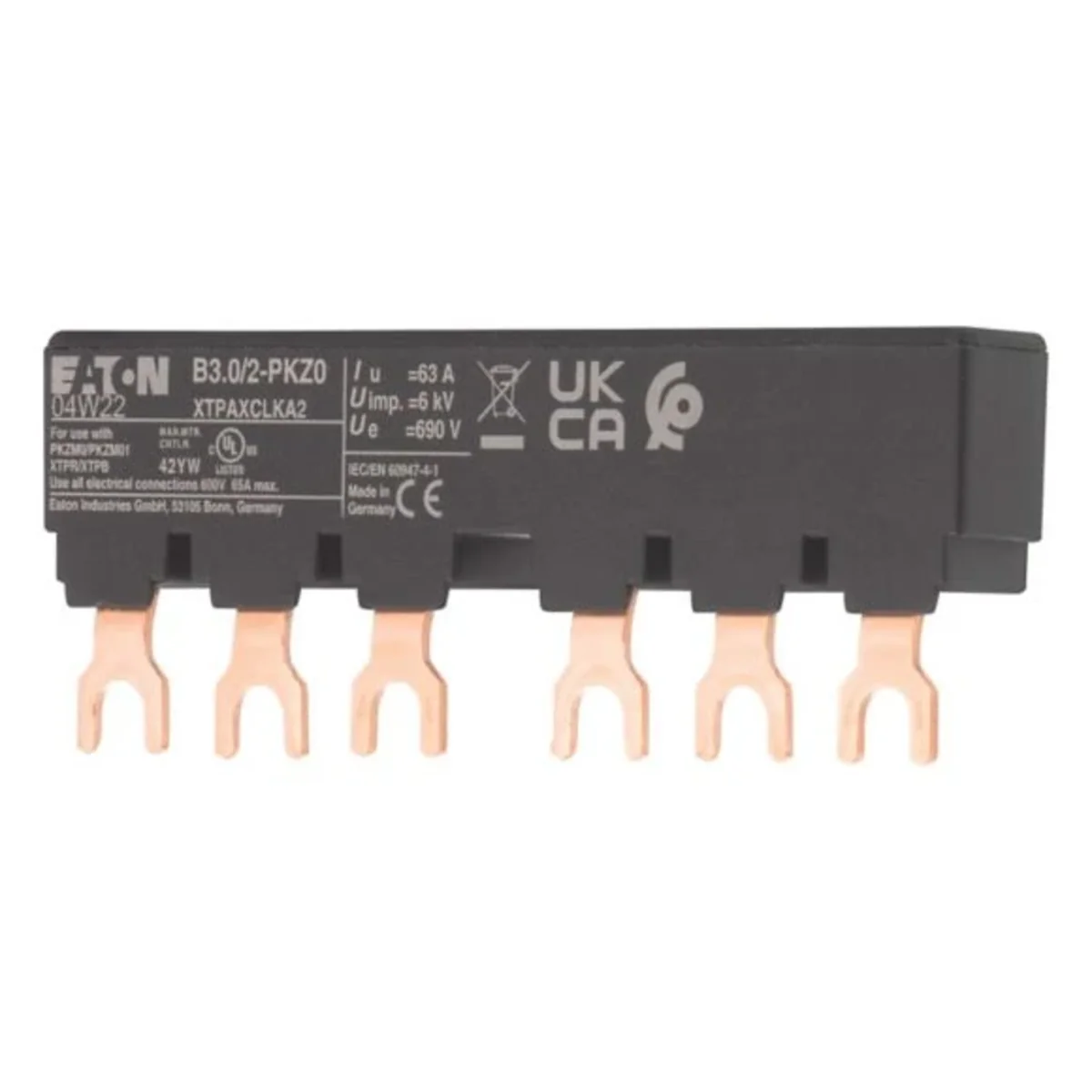

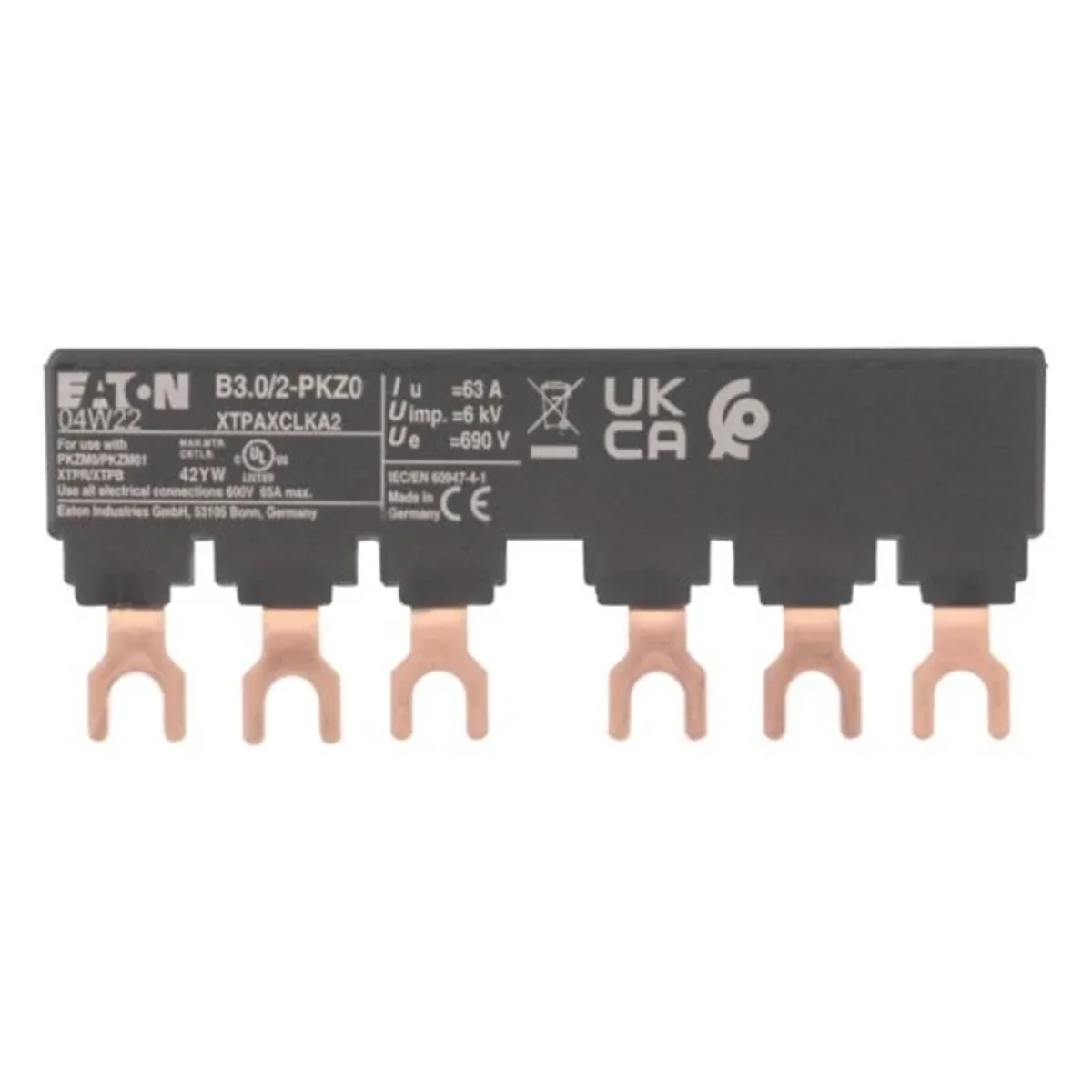

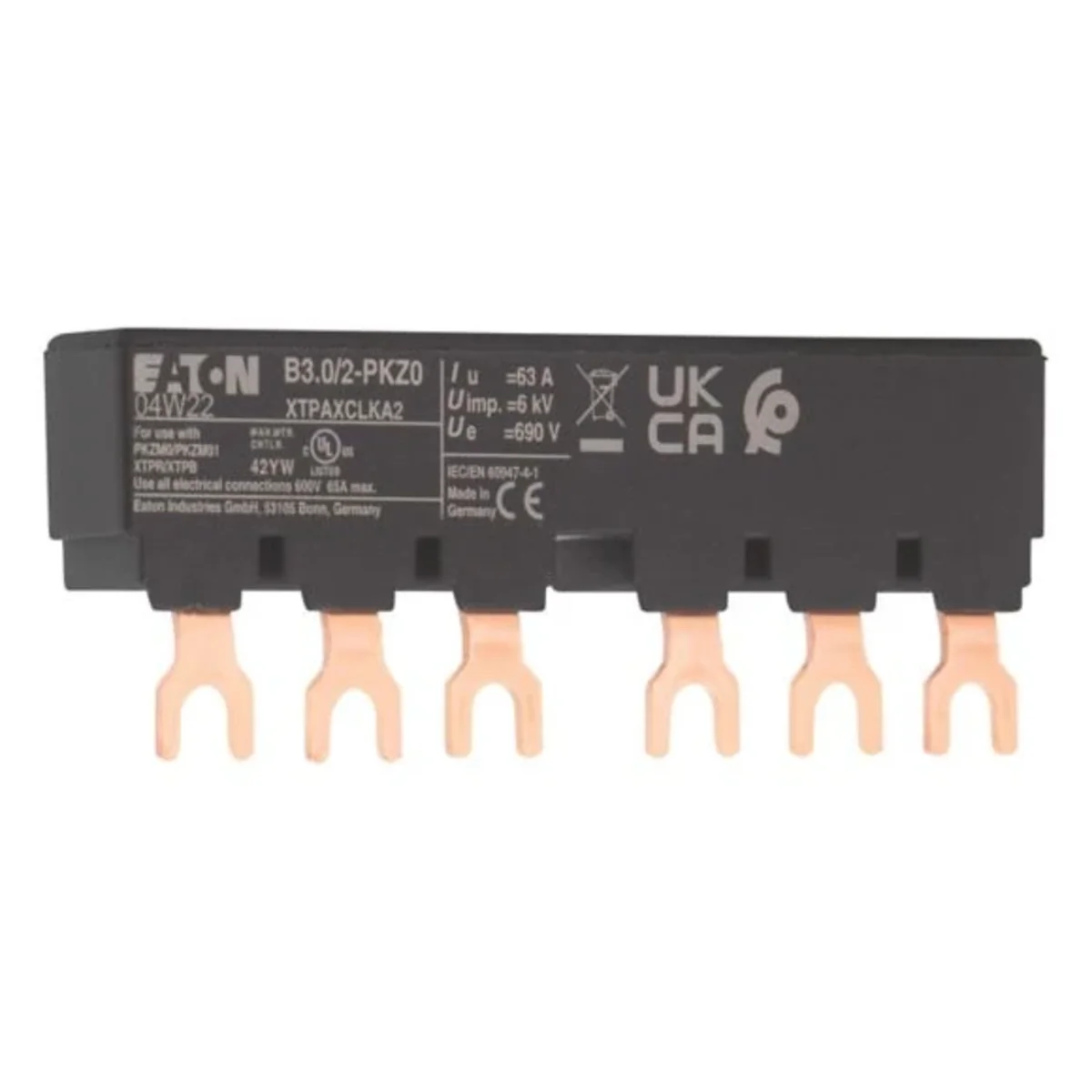

Click on the photo to enlarge

Manufacturer: EATON

Length [mm]: 90

Pitch [mm]: 45

Circuit breaker: 2

See full description

Price:

17,12 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Three-phase bridge blocks, power supply on terminals 1, 3, 5. Touch-proof, short-circuit proof, Ue = 690 V, Iu = 63 A. Extendable by alternating mounting. For PKZM0-… or PKE without side-mounted auxiliary contacts or shunt releases.

Technical data

Length [mm]

90
Circuit breaker

2

Pitch [mm]

45

Other technical data

Number of phases

3
Suitable for number of devices

2
Cross section

0 mm²
Width in number of modular spacings

5
Type of electric connection

Fork
Rated surge voltage

6 kV
Max. rated operation voltage Ue

690 V
Suitable for devices with N-conductor

No
Colour

Black

Number of poles

3
Module width

45 mm
Length

90 mm
Rated permanent current Iu

63 A
Insulated

Yes
Conditioned rated short-circuit current Iq

0 kA
Rated short-time withstand current lcw

0 kA
Suitable for devices with auxiliary switch

No

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

Bulk packaging

A kind of package		Skrzynia	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,035	0,037	0,374
Volume (m3)	0,000	0,000	0,001
Width (m)	0,011	0,013	0,064
Length (m)	0,090	0,092	0,115
Depth (m)	0,034	0,036	0,073
