Switchgear RL 12M with a lock and glass for a 3-phase meter, white RL 12E ZSZ

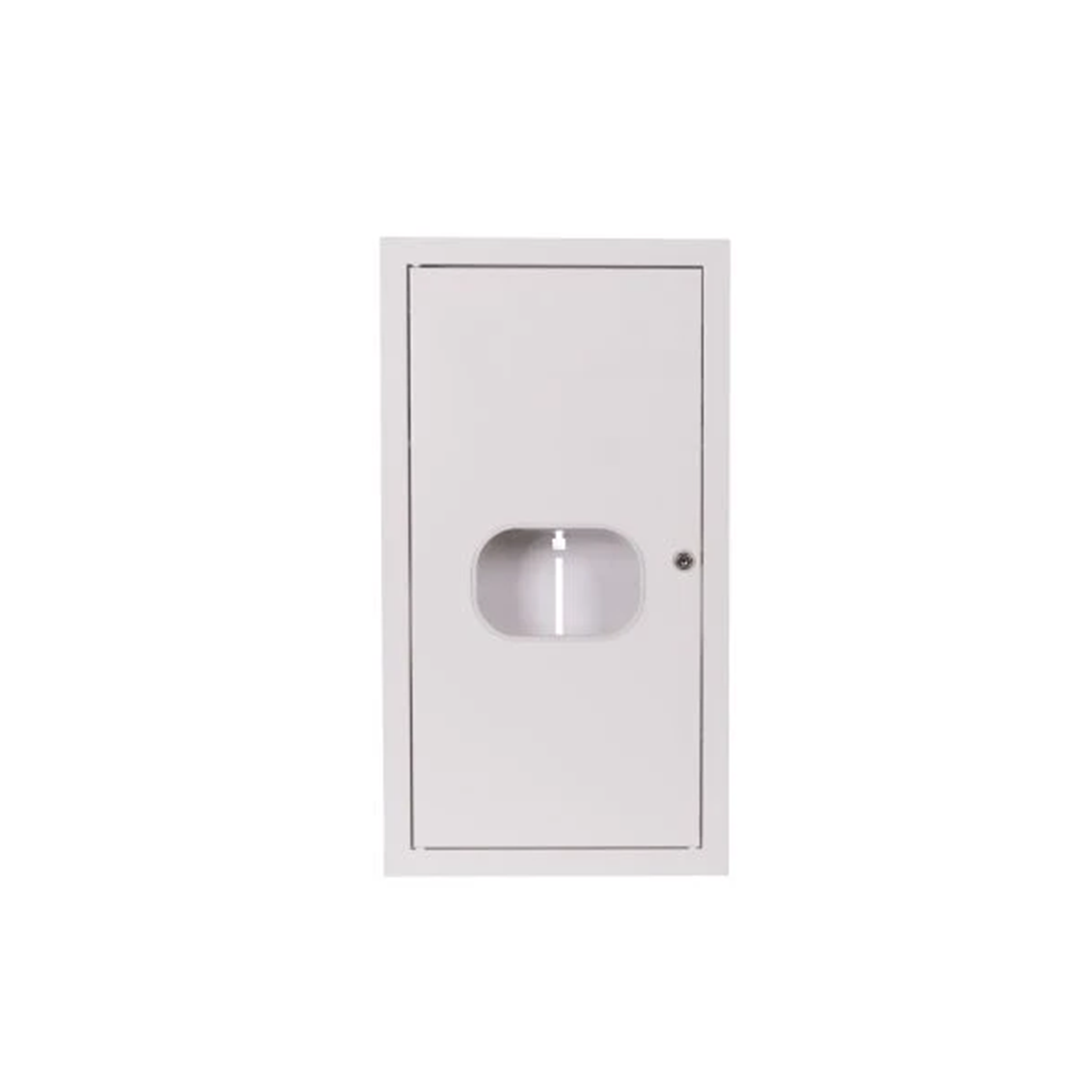

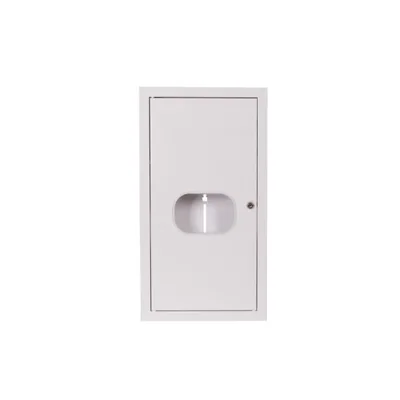

Name: Switchgear RL 12M with a lock and glass for a 3-phase meter, white
Brand: SABAJ SYSTEM
SKU: RMP024SABA
Price: 89.96 PLN
Availability: InStock

local index:

RMP024SABA

Catalog No:

RL 12E ZSZ

EAN code:

5907813126628

Switchgear RL 12M with a lock and glass for a 3-phase meter, white

Click on the photo to enlarge

Manufacturer: SABAJ SYSTEM

Depth [mm]: 120

Number of modules: 12

Protection class: AND

See full description

Price:

89,96 €

gross / pcs.

(including VAT 23%)

Accessible 23 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Metal recessed switchgear type RL, intended for installing an electronic three-phase meter and twelve protections.

Technical characteristics:

< ul>

Rated continuous current: In ≤ 100A

Rated voltage: Un = 400V

Rated insulation voltage: Ui = 500V

Mounting method: recessed in the wall

In the version with a lock and a window

Execution:
Steel sheet, 0.8 mm thick, with a protective varnish coating in RAL 9003 color, applied by electrostatic. The enclosures have an additional sealable cover for pre-meter protection.
