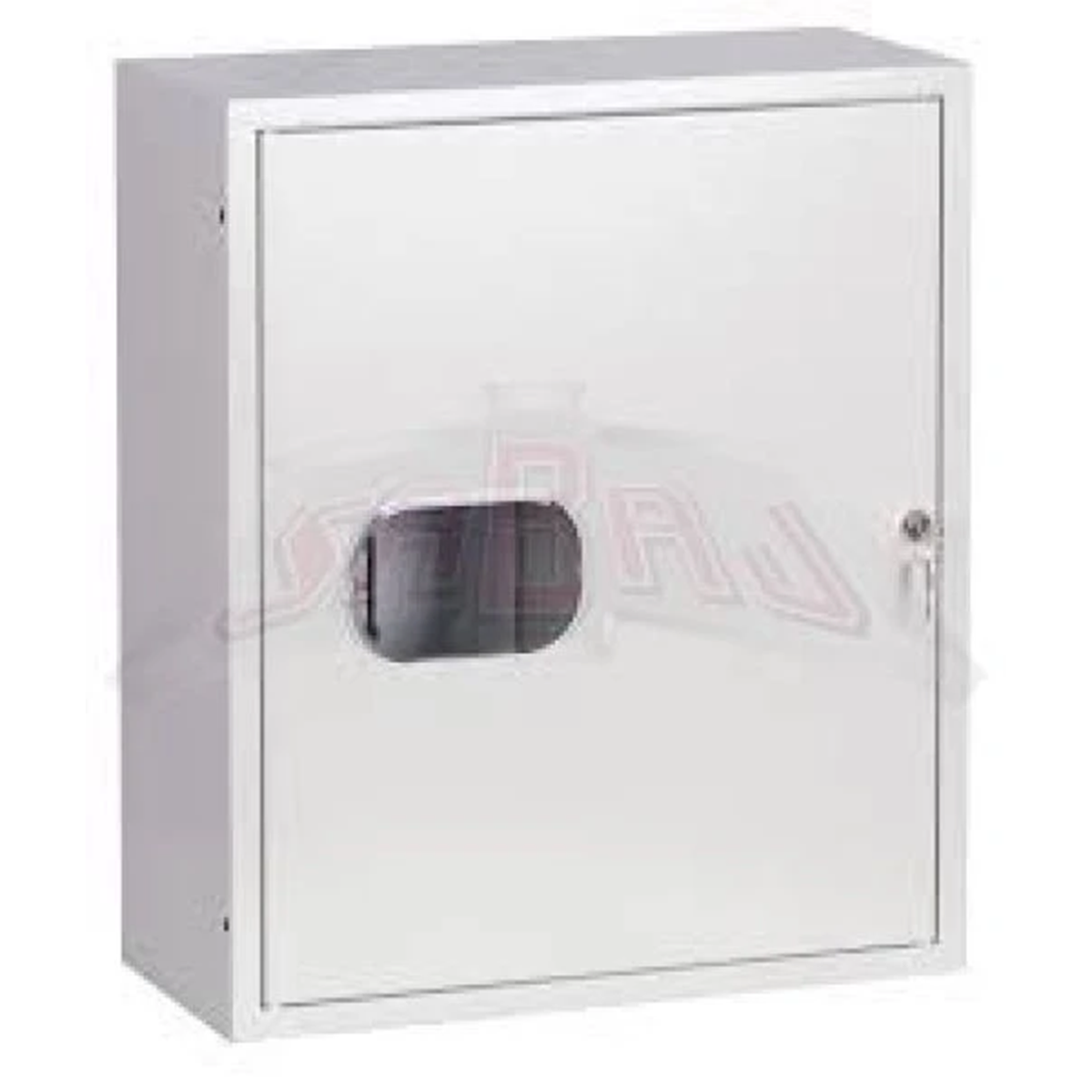

Switchgear NRL 6M with a lock and glass for a 1-phase meter, white NRL 1F 6 WE ZSZ

local index:
RMP029SABA
Catalog No:
NRL 1F 6 WE ZSZ
EAN code:
5907813126666
Manufacturer: SABAJ SYSTEM
Depth [mm]: 130
Number of modules: 6
Protection class: AND
Price:
63,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 22 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

NRL meter switchboards

Application: For electronic 1-phase meter.

Technical characteristics:

  • Rated continuous current: In ≤ 100A
  • Rated voltage: Un = 400V
  • Rated insulation voltage: Ui = 500V
  • Number of rows: 1
  • Number modules per row: 6

Mounting: wall-mounted

Execution: 0.8 mm thick sheet steel, with a protective varnish coating in RAL color 9003, applied by electrostatic method. The enclosures have an additional sealable cover for pre-meter protection.

Lock and glass version.

Technical data

  • Depth [mm]
    130
  • Protection class
    AND
  • Installation
    Surface-mounted
  • Level of security
    IP31
  • Height [mm]
    430
  • PKWIU
    27.12.31.0
  • Number of modules
    6
  • Color
    White
  • Rated insulation voltage [V]
    500
  • Width [mm]
    220
  • Rated switching voltage [V]
    400
