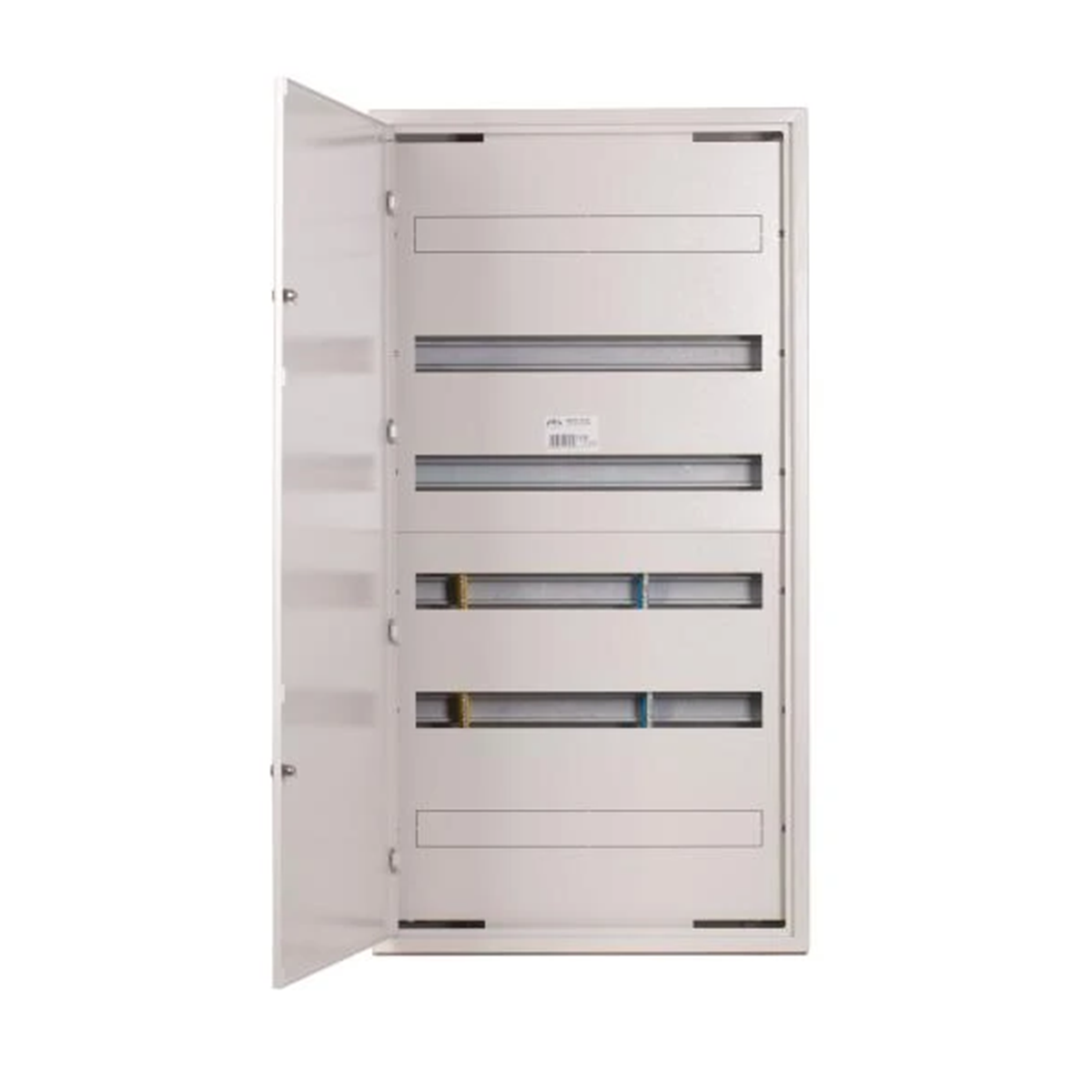

Surface-mounted switchgear "quick assembly" NRPsm 144 Z NRPSM 144 (6X24) Z

Application:

Indoor LV switchgears, depending on the type of equipment installed, may, together with the distribution of electricity, perform the following functions: control of electrical devices, control and supervision of the production process.
They enable assembly up to (6x24) or ( 7x18) modules. Thanks to the unique design, they facilitate the work of the installer, the assembly of the apparatus and lacing are performed on the exposed mounting plate, and only after connecting the cables, the front part (casing) is put on it

Operating conditions: Air humidity 50%
Ambient temperature : max 40 C, min -5 C

Electrical parameters:

Rated continuous current: In ? 100A
Rated insulation voltage - 500V
Rated switching voltage - 400V
Protection class - I
Protection degree - IP 30
Standard dimensions NRP SM (width x height x depth): 220 620 x 240 645 130


Possibility of execution according to the customer's individual specification and in configuration with a lock and a window

The standard specification includes:

enclosure made of steel sheet,
door closed with a latch or a lock, solid or with glass
a cover for protection,
TH 35/7.5 rail
terminal rails with insulators
a set of screws + nuts
protective conductor
plastic round and rectangular end caps
a set of stickers with assembly instructions
