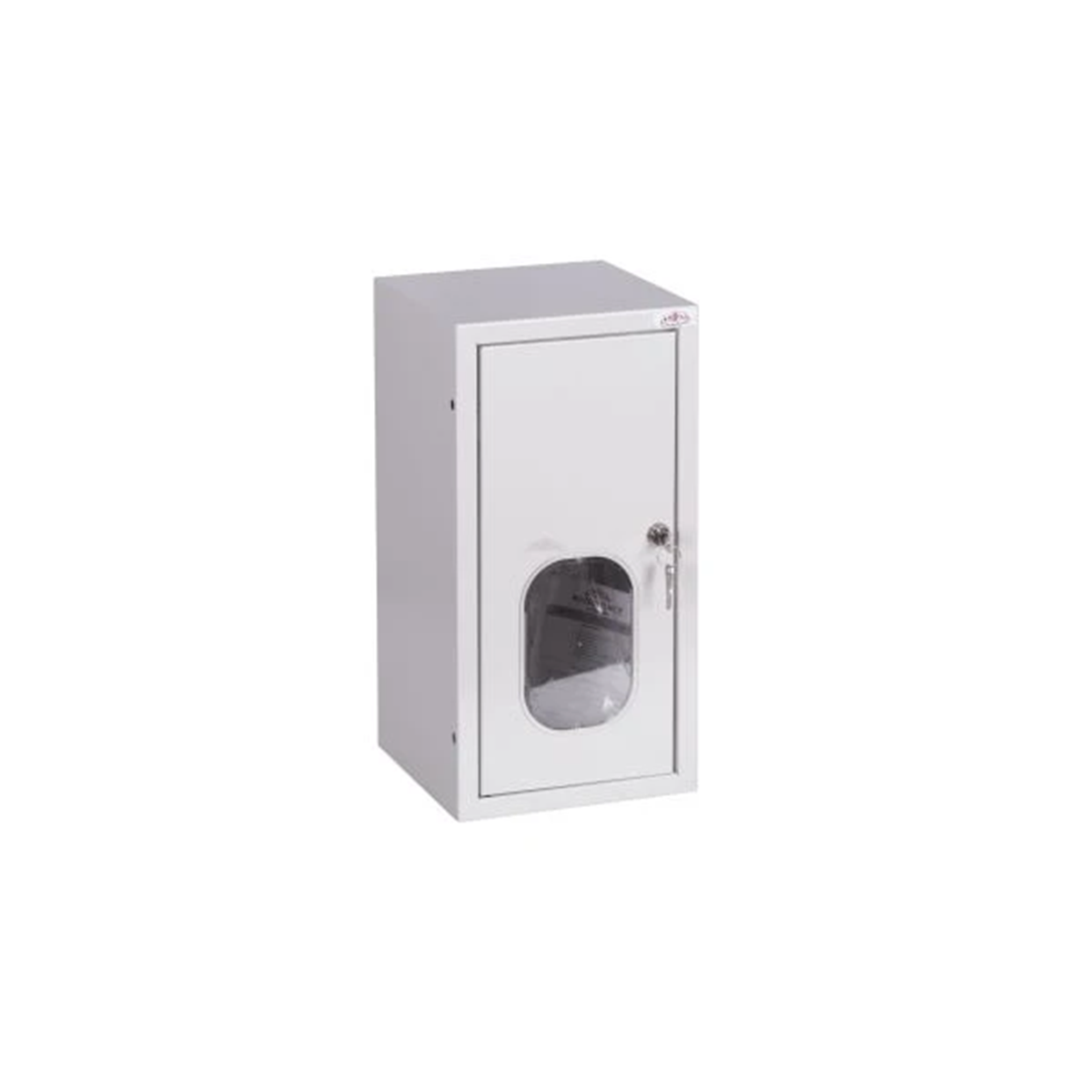

Surface-mounted metal metering switchgear NRL 1F6 W ZSZ NRL 1F 6 W ZSZ

Application:

Indoor LV switchgears, depending on the type of installed apparatus, may, together with electricity distribution, perform the following functions: - measurement, control of electrical devices - control and supervision of the production process

Installation method: built-in in the wall
Operating conditions: air humidity ÷50%
Ambient temperature: max 40°C min -5°C
Execution of the LV switchgear housing:

Steel sheet 1 mm thick, with protective varnish coating in RAL 9002 color, applied by electrostatic method V
rated insulation voltage: Ui=500V
protection class: I
protection degree: IP 31
