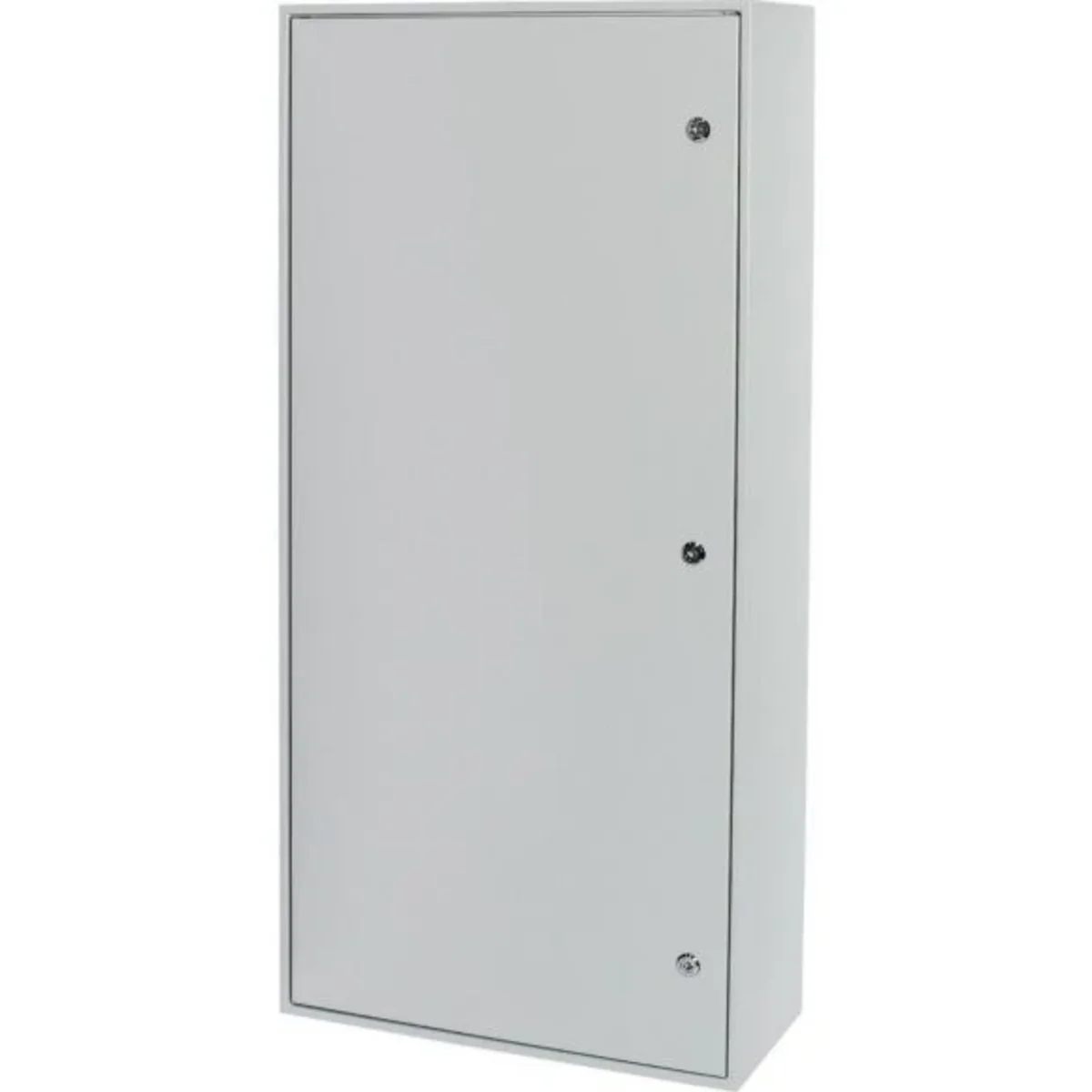

Surface-mounted distribution board BPM-O-600/10 111024

local index:
RIR003MOEL
Catalog No:
111024
EAN code:
4015081105854
Manufacturer: EATON
Color: Gray
Price:
467,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

IP54 surface-mounted switchboards, type BPM-O-... – without equipment
• Side walls welded
• It has entry holes from the top for mounting flanges type F3A (switchgear delivered without flanges)
• Three ways to mount support rails and mounting plates
- directly on the back of the switchgear
- using BPZ-MSW mounting side walls (BPZ-CTS-L brackets should be used)
- using the BPZ-TF and BPZ-TA fastening elements
• Supplied with cylinder locks
• Split door for width 1000 (400+600) and 1200 (600+600)
• Depth 270mm



Technical data

  • Color
    Gray
  • PKWIU
    27.40.12.0

Other technical data

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    24
  • Cover model
    Closed
  • Housing material
    Steel
  • Width
    630 mm
  • Built-in depth
    300 mm
  • Built-in width
    630 mm
  • Earthing terminal block
    No
  • DIN-rail
    No
  • Extension possible
    Yes
  • Colour
    Grey
  • Degree of protection (IP)
    IP55
  • Type of closure
    Other
  • Number of rows
    6
  • Type of covering
    Door
  • Transparent cover/door
    No
  • Height
    1090 mm
  • Depth
    300 mm
  • Built-in height
    1090 mm
  • Inner depth
    265 mm
  • Neutral terminal block
    No
  • With mounting plate
    No
  • EMC-version
    Yes
  • RAL-number
    7035
  • With lock
    No
  • Signal passing door
    No

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 32,528
Volume (m3) 0,206
Width (m) 0,630
Length (m) 0,300
Depth (m) 1,090
