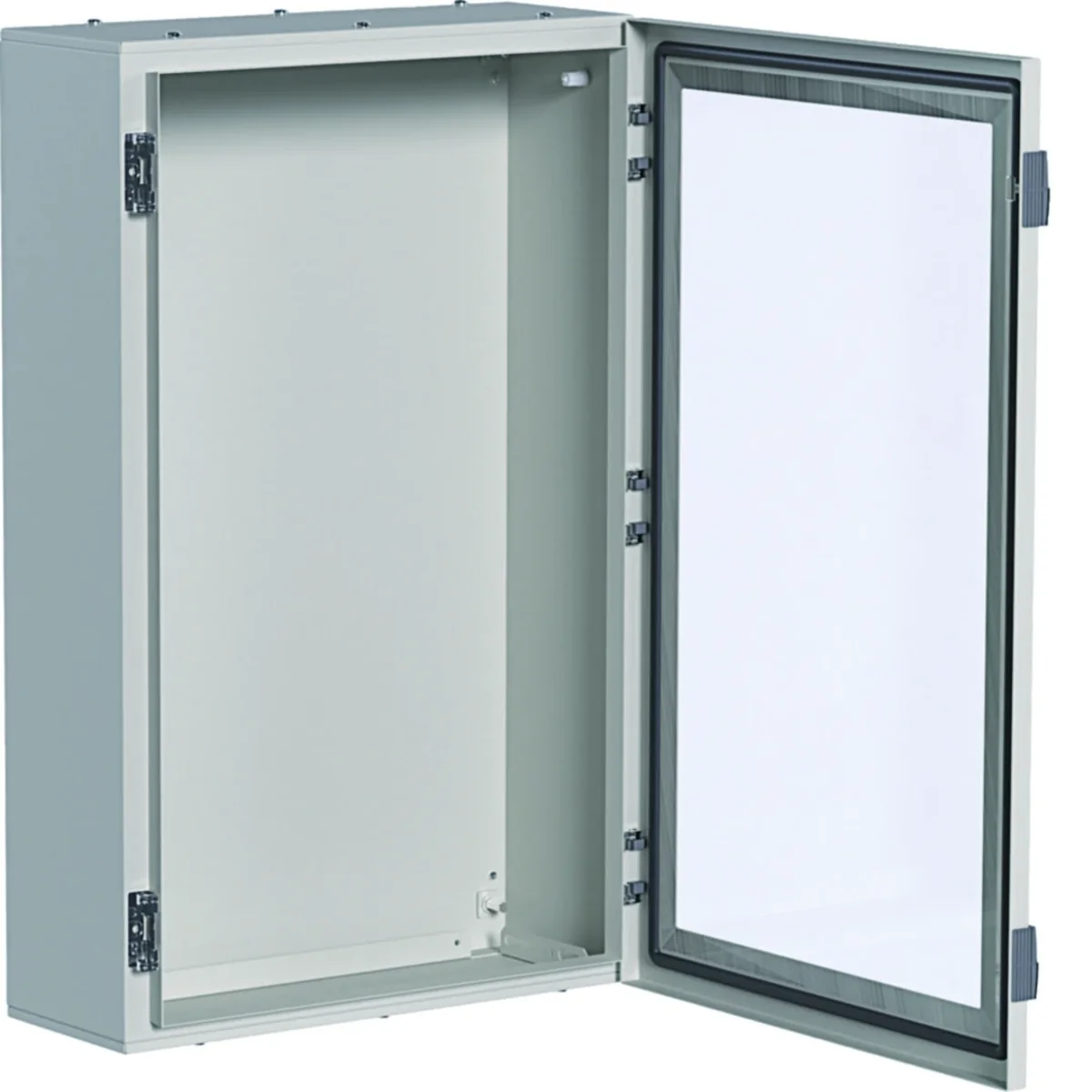

Steel sheet or glass fiber reinforced polyester – The new orion+ enclosures are designed to work in harsh conditions. Thanks to the body made of glass fiber reinforced polyester, orion+ can be used even in harsh corrosive chemical environments. The internal equipment can be implemented flexibly by mounting mounting plates or DIN rails (in two versions), thus offering a suitable equipment system – classic electricity distribution function and applications for controlling and automating industrial processes.

Steel sheet enclosures:
• IP65/IK10 surface-mounted enclosures
• for indoor use
• insulation class I
• color RAL 7035 (gray)
• standards: EN 60439-1, EN 62208, EN 50298
• metal door with one or two locks with a triangular insert
• the ability to easily change the door from left to right
• perfectly fixed and fitted door
• housings are adapted for direct mounting of mounting plates as standard
• facilitated preparation of cable entries by removable bottom and top panels of the enclosures

Interior layout system:
• housing for devices for rated current max. 630 A
• rated voltage Un - 400 V, 50/60 Hz
• rated insulation voltage Ui - 690 V
• impulse voltage Uimp - 8 kV
• short-circuit current max. Icc - 35kA

Depth [mm]

200
Width [mm]

500
PKWIU

27.12.40.0

Level of security

IP65
Height [mm]

800

Other technical data

Mounting method

Surface mounted
Cover model

Closed
Transparent cover/door

Yes
Nominal current (In)

630 A
Width

500 mm
Built-in depth

200 mm
Material plate thickness cabinet

1.2 mm
Colour

Grey
Number of modules

110
Width in number of modular spacings

22
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

I
Circuit integrity

None

Type of covering

Door
Type of door

Single
With lock

Yes
Height

800 mm
Depth

200 mm
Inner depth

200 mm
Material plate thickness door/cover

1.5 mm
RAL-number

7035
Number of rows

5
Number of openings for flange plates

2
Number of conduit inlets

2
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP65
Impact strength

IK10

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	17,000	17,320	198,200
Width (m)	0,500	0,225	0,800
Length (m)	0,800	0,840	1,530
Depth (m)	0,200	0,525	1,200
