Steel sheet or glass fiber reinforced polyester – The new orion+ enclosures are designed to work in harsh conditions. Thanks to the body made of glass fiber reinforced polyester, orion+ can be used even in harsh corrosive chemical environments. The internal equipment can be implemented flexibly by mounting mounting plates or DIN rails (in two versions), thus offering a suitable equipment system – classic electricity distribution function and applications for controlling and automating industrial processes.

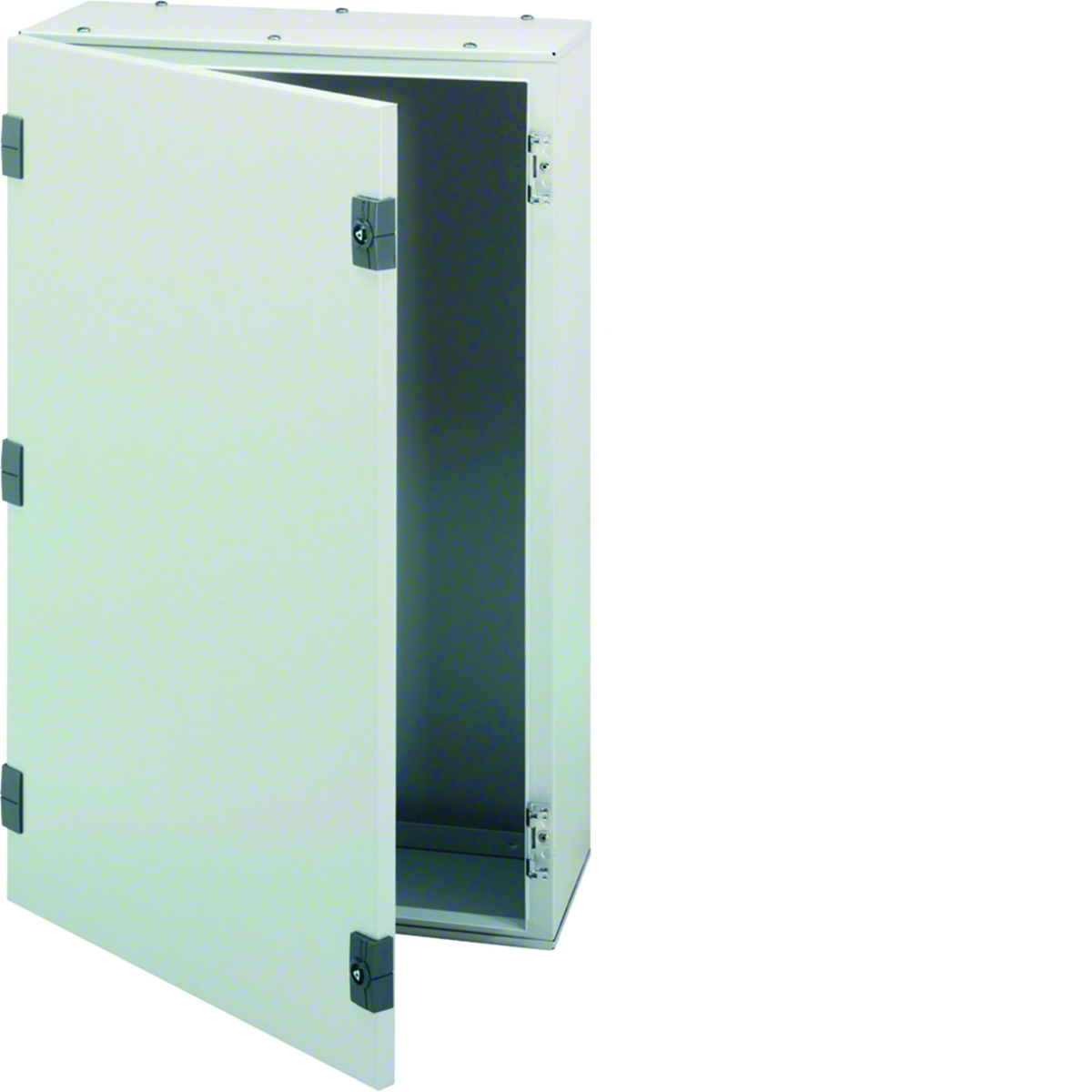

Steel sheet enclosures:
• IP65/IK10 surface-mounted enclosures
• for indoor use
• insulation class I
• color RAL 7035 (gray)
• standards: EN 60439-1, EN 62208, EN 50298
• metal door with one or two locks with a triangular insert
• the ability to easily change the door from left to right
• perfectly fixed and fitted door
• housings are adapted for direct mounting of mounting plates as standard
• facilitated preparation of cable entries by removable bottom and top panels of the enclosures

Interior layout system:
• housing for devices for rated current max. 630 A
• rated voltage Un - 400 V, 50/60 Hz
• rated insulation voltage Ui - 690 V
• impulse voltage Uimp - 8 kV
• short-circuit current max. Icc - 35kA

Depth [mm]

250
Width [mm]

500
PKWIU

27.12.40.0

Level of security

IP65
Height [mm]

800

Other technical data

Mounting method

Other
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

630 A
Width

500 mm
Built-in depth

250 mm
Material plate thickness cabinet

2 mm
Colour

Grey
Number of modules

110
Width in number of modular spacings

22
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

I
Circuit integrity

None

Type of covering

Cover
Type of door

Single
With lock

Yes
Height

800 mm
Depth

250 mm
Inner depth

250 mm
Material plate thickness door/cover

2 mm
RAL-number

7035
Number of rows

5
Number of openings for flange plates

2
Number of conduit inlets

2
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP65
Impact strength

IK10

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	6 pcs.
Weight (kg)	18,819	18,820	139,000
Width (m)	5,000	0,270	0,800
Length (m)	8,000	0,860	1,010
Depth (m)	2,500	0,530	1,200
